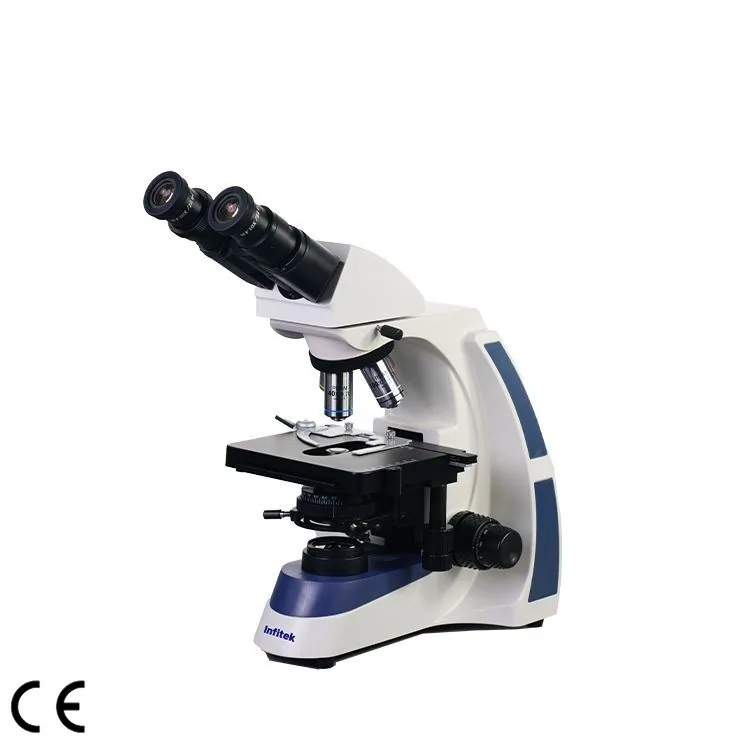

Infitek Biological Microscope, MSC-B400W
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Biological Microscope, MSC-B400W is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MSC-B400W. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MSC-B400W |
|---|---|
| Optics | Infinity optical system |
| Observation Tube | Tilting binocular, Interpupillary 55-75mm |
| Viewing Head | Siedentopf head, inclined at 30° |
| Eyepiece | Plan field eyepiece, 10X, φ22mm |
| Objective  | Plane infinite distance objective 4X, 10X, 40X, 100X (oil) |
| Nosepiece | Quadruple nosepiece |
| Magnification | 40X-1000X |
| Stage | Double layers mechanical stage Size: 140x160mm, Range: 76x45mm, ruler: 0.1mm |
| Focusing | 30mm Coaxial coarse and fine focus adjustment Fine focusing scale 0.002mm |
| Condenser | Abbe N.A.1.25 condenser with Iris diaphragm, dark field (Optional) |
| Filter | Blue, Green |
| Light Source | LED two-color electric light source, yellow and white light switching, Kohler lighting, adjustable brightness |
Manufacturer catalogue checked 2026-09-28.
