Brand: BIOBASE | Category: Scientific & Laboratory Equipment

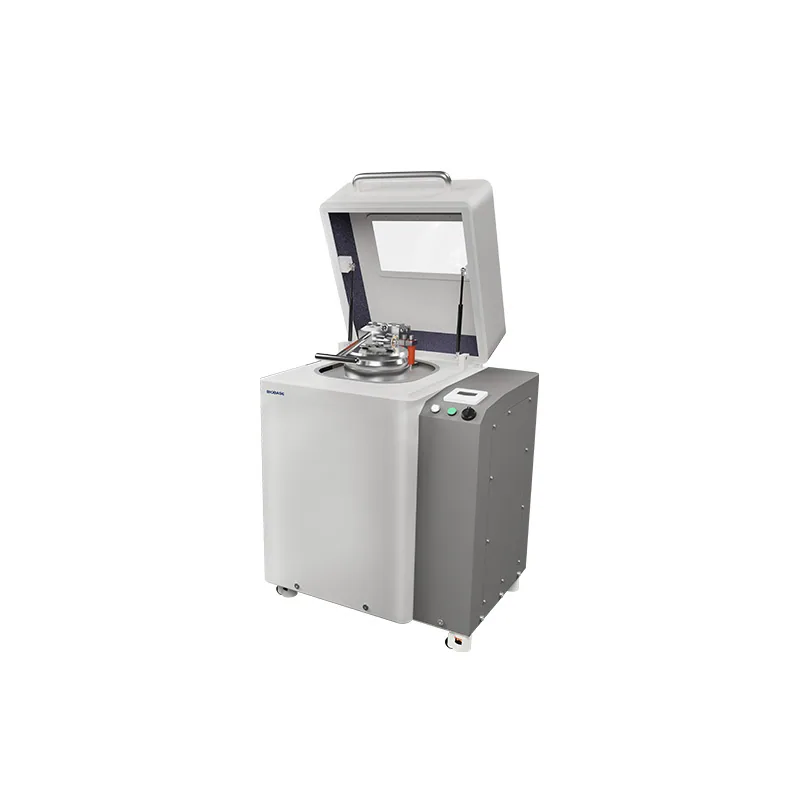

BIOBASE Vibration Mill BK-VBM01 is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: BK-VBM01. Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-VBM01 |
|---|---|
| Grinding Disc Speed | 1480r/min |
| Control Device | Master switch/button switch/digital time controller |
| Motor Phase Loss/Overcurrent Protection | Have |
| Cover opening and shutdown | Have |
| Grinding Disc Seat | Single |
| Clamping Device | Quick clamping |
| Grinding Disc Material | Tungsten carbide Outsourced steel sleeve |
| Grinding Disc Specifications | 100ml（1-50g） |
| Optional Grinding Disc Material | High chromium steel, agate, zirconia, corundum, and high manganese steel |
| One Grinding Time | 60-180S |
| Feed Particle Size | ≤8mm |
| Grinding Particle Size | ≤0.074mm |
| Equipment support feet | 4 fixed and sliding feet |
| Power Supply | AC 380V±5%, 50Hz, three-phase, external air switch, no plug |
| External Dimensions (mm） | 680*620*915 |
| Net Weight(kg) | 160 |
| Packing Size(mm) | 840*740*1090 |
| Gross Weight(kg) | 185 |
Manufacturer catalogue checked 2026-09-28.
