Brand: Infitek | Category: Scientific & Laboratory Equipment

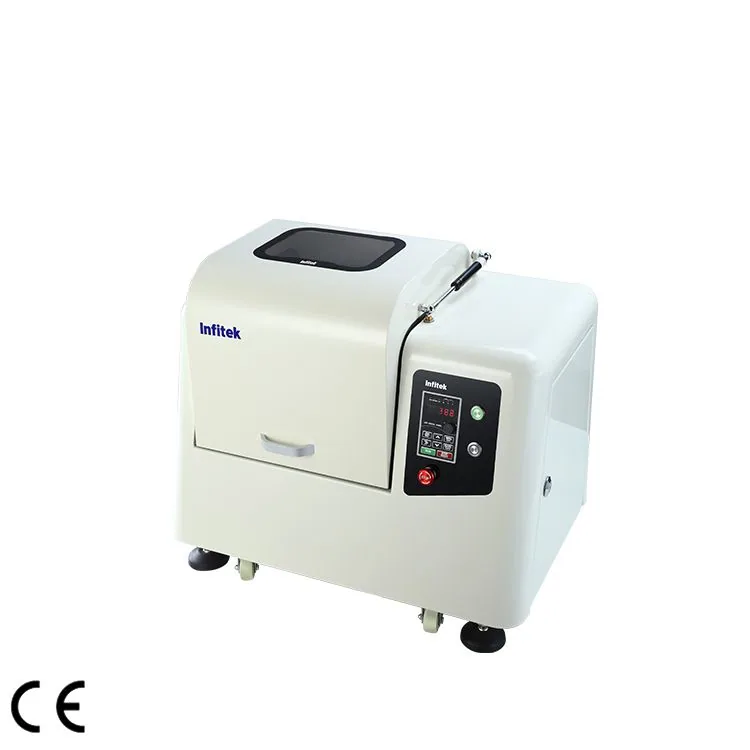

Infitek Planetary Ball Mill, PBM-YXMQ is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: PBM-YXMQ. Published details include Oil Fill Volume: 220 ml (must be pre-filled before use). Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | PBM-YXMQ |
|---|---|
| Type | Oil-sealed silent type |
| Application Fields | Pharmaceuticals, food, geology, metallurgy, agriculture, glass, ceramics, aviation, chemicals, biology, materials, lithium batteries, electronics, plants, etc. |
| Sample Characteristics | Soft, medium-hard, hard, brittle, fibrous, or viscous materials |
| Processing Modes | Pulverizing, grinding, mixing, homogenization, mechanical alloying |
| Sun Disk Structure | Planetary sun wheel with oil-bath gear lubrication for enhanced durability and noise isolation. |
| Max. Feed Size (depending on the material) | < 5mm (Soil < 10mm) |
| Final Fineness | < 100nm |
| Max. Sample Throughput | 4 x 500 ml |
| Grinding Jar Options | 50/100/250/500mL (Adapters required for small jars) |
| Max. Filling Level (Sample) | 160 ml/jar |
| Max. Filling Level (Ball) | 160 ml/jar |
| Sun Disk Speed | 10-400 rpm |
| Grinding Jar Speed | 20-800 r/min |
| Total Grinding Speed | 1200 r/min |
| Transmission Ratio | 1:2 (Sun Disk: Grinding Jar) |
| Grinding Jar Materials | Stainless Steel, agate, zirconium oxide, corundum, tungsten carbide, nylon, polyurethane, PTFE, silicon carbide, etc. |
| Grinding Media Materials | Stainless steel, agate, zirconium oxide, corundum, nylon, PTFE. |
| Media Diameters | 1 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 mm |
| Simultaneous Samples | Up to 4 types |
| Number of Stations | 2 or 4 grinding stations |
| Jar Placement | Vertical planetary |
| Protection Rating | IP60 |
| Grinding Mode | Dry / Wet grinding |
| Oil Seal Box Location | Located at the bottom of the sun disk |
| Oil Seal Box Dimensions | 36*10cm |
| Oil Fill Volume | 220 ml (must be pre-filled before use) |
| Sun Disk Diameter | 360 mm |
| Operational Modes | Program memory, Power-off memory |
| Forward/Reverse Operation | Yes |
| Continuous Run Time | 00:01:00-99:59:59 |
| Pause Time Setting | 00:01:00-99:59:59 |
| Emergency Stop | Yes |
| Power-off Memory | Yes |
| Sound Emission | < 60 dB (measured within 3 meters) |
| Electricity | 100-120V/200-240V AC, 50-60Hz, 750W |
| Dimensions | 780*580*680mm |
| Net Weight | 100kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
