Brand: Infitek | Category: Scientific & Laboratory Equipment

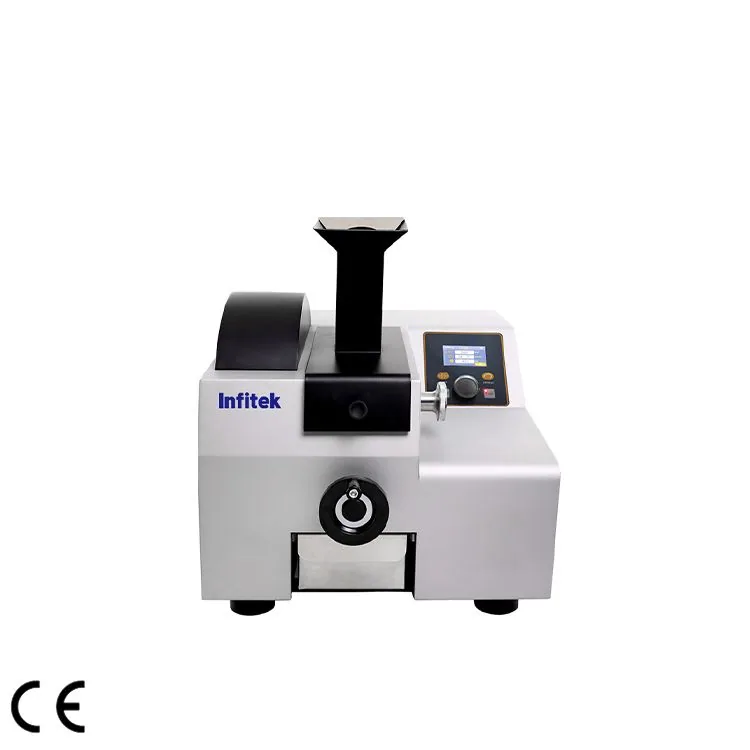

Infitek Jaw Crusher, JC-MT is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: JC-MT. Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Compact Size & Great Performance Elegant design, compact footprint, and easy to transport. Delivers fine discharge particle sizes, making it an indispensable and reliable assistant for laboratory sample preparation. |
|---|
| Control Panel Selectable operating programs with adjustable running time. Features Start, Stop, and Jog functions. |
|---|
| Stainless Steel Feed Hopper Precision-polished stainless steel for long-lasting durability. The feed inlet size can be adjusted via a control knob. |
|---|
| Stainless Steel Receiving Container Resistant to acids and alkalis, corrosion resistant, made of stainless steel, durable. |
|---|
| Vibration Motor Utilizes high-strength vibration-resistant cast iron bearings. Long service life, low noise, and easy maintenance. |
|---|
| Emergency Stop Button In case of emergencies during operation, press the emergency stop button for immediate braking. |
|---|
| Model | JC-MT | JC-MT | JC-MT |
|---|---|---|---|
| Jaw Plate Material (Optional) | Corundum (Alumina) | Manganese steel | Zirconium oxide |
| Crushing Hardness | ≤ Mohs 5.0 | ≤ Mohs 7.0 | ≤ Mohs 7.5 |
| Feed Inlet Size | 100*70 mm | 100*70 mm | 100*70 mm |
| Feed Size | ≤30 mm | ≤30 mm | ≤30 mm |
| Jaw Plate Gap | 1-13 mm | 1-13 mm | 1-13 mm |
| Discharge Size | d_(90)_( )< 1 mm | d_(90)_( )< 1 mm | d_(90)_( )< 1 mm |
| Speed | 620 rpm | 620 rpm | 620 rpm |
| Throughput | 1-300 kg/h | 1-300 kg/h | 1-300 kg/h |
| Power | 0.75 kW | 0.75 kW | 0.75 kW |
| External Dimensions | 500*600*600 mm | 500*600*600 mm | 500*600*600 mm |
| Net Weight | 95 kg | 95 kg | 95 kg |
Manufacturer catalogue checked 2026-09-28.
