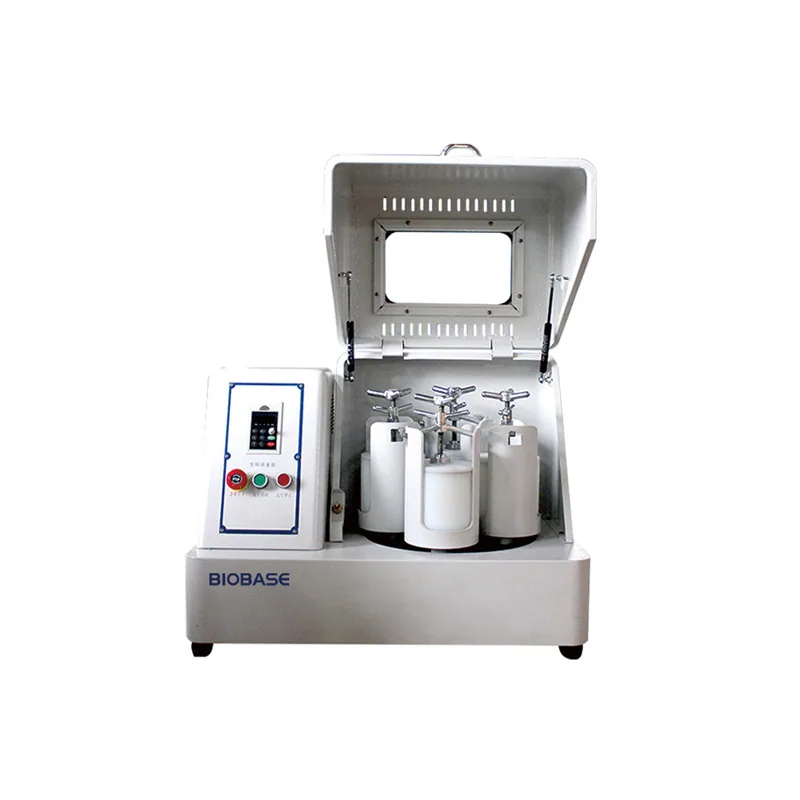

BIOBASE Vertical Planetary Ball Mill(Square Type)
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Vertical Planetary Ball Mill(Square Type) is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: BKBM-V2S. Published details include Capacity: 2L; Volume of Each Capacity: 50~500ml. Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKBM-V2S |
|---|---|
| Capacity | 2L |
| Volume of Each Capacity | 50~500ml |
| Pot Quantity | 4pcs |
| Running Time Range | 1~9999min |
| Reciprocal Running Time | 1~999min |
| Adjustable Speed; Revolution / Revolution | 35~335rpm |
| Adjustable Speed; Revolution / Rotation | 70~670rpm |
| Noise | 60±5dB |
| Speed Control Mode | Frequency control |
| Transmission Mode | Gear drive |
| Working Mode | 2 or 4 pots can be used each time |
| Maximum Sample Volume(Material+Grinding Ball) | 2/3 of the volume of the ball mill tank |
| Feed Size | Soft and Crispy material<10mm, Other materials<3mm |
| Out-put Granularity | Minimum Granularity can be reached to 0.1μm |
| Adjusting Mode of Rotate Speed | Frequency converter with stepless speed regulation |
| Consumption | 0.75KW |
| Power Supply | AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) |
| External Size(W*D*H) | 750*470*564mm |
| Package Size(W*D*H) | 840*550*670mm |
| Net Weight | 93kg |
| Gross Weight | 120kg |
| Note: Both pot and ball are optional. Fora ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately. | Note: Both pot and ball are optional. Fora ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately. |
Manufacturer catalogue checked 2026-09-28.
