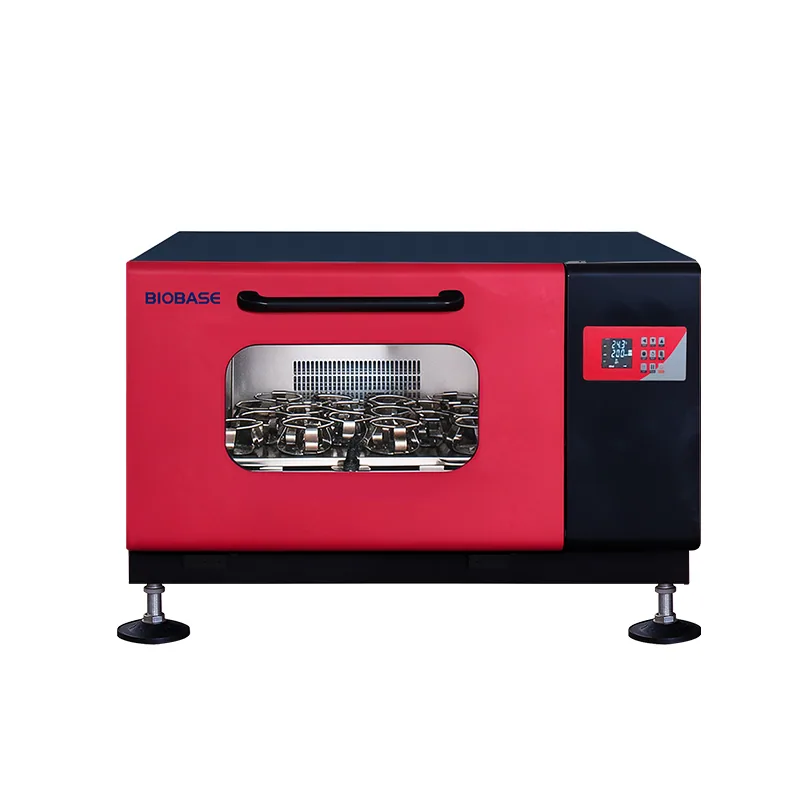

BIOBASE Stacked Large Capacity Shaking Incubator(BJPX-N/RN)
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Stacked Large Capacity Shaking Incubator(BJPX-N/RN) is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: BJPX-2012N, BJPX-2012RN. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-2012N | BJPX-2012RN |
|---|---|---|
| Capacity | 180L(Per unit) | 180L(Per unit) |
| Temp. Sensor | PT100 | PT100 |
| Temp. Range | RT+5~65℃ | 4~65℃(@ 20℃) |
| Temp. Fluctuation | ≤0.1℃(@ 37℃） | ≤0.1℃(@ 37℃） |
| Temp. Uniformity | ±0.6℃(@ 37℃) | ±0.6℃(@ 37℃) |
| Temp. Precision | ±0.1℃ | ±0.1℃ |
| Timing Range | 0~9999h/min or continuous | 0~9999h/min or continuous |
| Controller | PID | PID |
| Display | LCD | LCD |
| Circulation Mode | Forced convection | Forced convection |
| Shaking Mode | Rotary shaking | Rotary shaking |
| Drive Mode | Multidimensional drive | Multidimensional drive |
| Vibration Range | Φ26mm(Can customize φ35(20~250rpm); φ50(20~200rpm)) | Φ26mm(Can customize φ35(20~250rpm); φ50(20~200rpm)) |
| Rotating Speed | 0; 20~350rpm(Top layer 20~300rpm, static culture, reverse rotation or alternate operation) | 0; 20~350rpm(Top layer 20~300rpm, static culture, reverse rotation or alternate operation) |
| Rotating Accuracy | ±1rpm | ±1rpm |
| Shaking Plate Size | 610*460mm | 610*460mm |
| Shaking Plate Quantity | 1pc | 1pc |
| Max. Capacity | 250ml*32 or 500ml*21 or 1000ml*13 or 2000ml*7(flask clamp) 250ml*32 or 500ml*20 or 1000ml*12 or 2000ml*8(haftplatte) | 250ml*32 or 500ml*21 or 1000ml*13 or 2000ml*7(flask clamp) 250ml*32 or 500ml*20 or 1000ml*12 or 2000ml*8(haftplatte) |
| Standard Capacity | Flask clamp: 500ml*20 | Flask clamp: 500ml*20 |
| Internal Material | Stainless steel | Stainless steel |
| External Material | Sprayed steel plate | Sprayed steel plate |
| Refrigerant | / | R134a |
| Safety Function | Audio and visual alarm for over-temperature Alarm for over-speeds Independent over-temperature protector Shutdown protection for door opening Leakage or over-current protection Ultraviolet disinfection function Calibration of monitoring temperature and ambient temperature Overload protection of refrigeration unit and delayed start of incoming call(only BJPX-2012RN) | Audio and visual alarm for over-temperature Alarm for over-speeds Independent over-temperature protector Shutdown protection for door opening Leakage or over-current protection Ultraviolet disinfection function Calibration of monitoring temperature and ambient temperature Overload protection of refrigeration unit and delayed start of incoming call(only BJPX-2012RN) |
| Consumption | 1000W(Per unit) | 1200W(Per unit) |
| Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz(Optional); 110V, 50/60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 220V, 60Hz(Optional); 110V, 50/60Hz(Optional, external transformer) |
| Internal Size(W*D*H) | 715*550*450mm(Per unit) | 715*550*450mm(Per unit) |
| External Size(W*D*H) | 1120*790*620mm(Per unit) | 1120*790*620mm(Per unit) |
| Package Size(W*D*H) | 1275*950*810mm(Per unit) | 1275*950*810mm(Per unit) |
| Net Weight | 175kg(Per unit) | 190kg(Per unit) |
| Gross Weight | 205kg(Per unit) | 220kg(Per unit) |
Manufacturer catalogue checked 2026-09-28.
