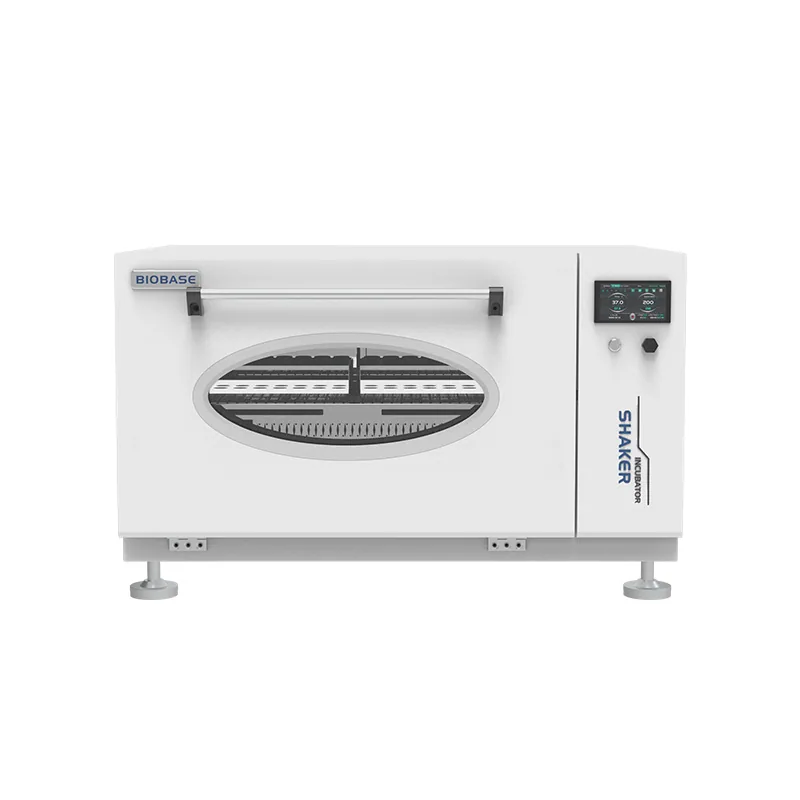

BIOBASE Stacked Large Capacity Shaking Incubator
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Stacked Large Capacity Shaking Incubator is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: BJPX-SDW10, BJPX-SDW20, BJPX-SDW10-L, BJPX-SDW20-L, Tube Rack, BS-A10. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-SDW10 | BJPX-SDW20 | BJPX-SDW10-L | BJPX-SDW20-L |
|---|---|---|---|---|
| Capacity | 200L | 200L | 200L | 200L |
| Temp. Sensor | PT100 | PT100 | PT100 | PT100 |
| Temp. Range | RT+5~65℃ | 4~65℃ | RT+5~65℃ | 4~65℃ |
| Temp. Fluctuation | ≤±0.1℃ | ≤±0.1℃ | ≤±0.1℃ | ≤±0.1℃ |
| Temp. Uniformity | ≤±0.45℃(37℃) | ≤±0.45℃(37℃) | ≤±0.45℃(37℃) | ≤±0.45℃(37℃) |
| Temp. Precision | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Timing Range | 0~999h | 0~999h | 0~9999min | 0~9999min |
| Controller | PID | PID | PID | PID |
| Display | 5 inch touch screen | 5 inch touch screen | 3-inch LCD screen | 3-inch LCD screen |
| Circulation Mode | Forced convection | Forced convection | Forced convection | Forced convection |
| Shaking Mode | Rotary shaking | Rotary shaking | Rotary shaking | Rotary shaking |
| Drive Mode | Single axis balanced drive type | Single axis balanced drive type | Single axis balanced drive type | Single axis balanced drive type |
| Vibration Range | Φ26mm | Φ26mm | Φ26mm | Φ26mm |
| Rotating Speed | 0, 20~300r/min | 0, 20~300r/min | 0, 20~300r/min | 0, 20~300r/min |
| Rotating Accuracy | ±1r/min | ±1r/min | ±1r/min | ±1r/min |
| Shaking Plate Size | 720*490mm | 720*490mm | 720*490mm | 720*490mm |
| Shaking Plate Quantity | 1pc | 1pc | 1pc | 1pc |
| Max. Capacity | 250ml*34 or 500ml*24 or 1000ml*15 or 2000ml*8 or 3000ml*6(Flask clamp) Tube rack*4 96-well plate*21 Clamping rod shaking plate*2(For 3000ml, 1. Install a wide-mouth flask, height ≤310mm; 2. When the universal spring clamp is selected, it can not be placed) | 250ml*34 or 500ml*24 or 1000ml*15 or 2000ml*8 or 3000ml*6(Flask clamp) Tube rack*4 96-well plate*21 Clamping rod shaking plate*2(For 3000ml, 1. Install a wide-mouth flask, height ≤310mm; 2. When the universal spring clamp is selected, it can not be placed) | 250ml*34 or 500ml*24 or 1000ml*15 or 2000ml*8 or 3000ml*6(Flask clamp) Tube rack*4 96-well plate*21 Clamping rod shaking plate*2(For 3000ml, 1. Install a wide-mouth flask, height ≤310mm; 2. When the universal spring clamp is selected, it can not be placed) | 250ml*34 or 500ml*24 or 1000ml*15 or 2000ml*8 or 3000ml*6(Flask clamp) Tube rack*4 96-well plate*21 Clamping rod shaking plate*2(For 3000ml, 1. Install a wide-mouth flask, height ≤310mm; 2. When the universal spring clamp is selected, it can not be placed) |
| Standard. Capacity | 500ml*24 | 500ml*24 | 500ml*24 | 500ml*24 |
| Lighting Mode | LED lamp*1 | LED lamp*1 | LED lamp*1 | LED lamp*1 |
| Sterilization Mode | UV lamp*2 | UV lamp*2 | UV lamp*2 | UV lamp*2 |
| Refrigerant | / | R290, 80g | / | R290, 80g |
| Ambient Temp. | 15~35℃ | 15~35℃ | 15~35℃ | 15~35℃ |
| Internal Material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| External Material | Cold rolled steel sheet | Cold rolled steel sheet | Cold rolled steel sheet | Cold rolled steel sheet |
| Data Storage | USB data storage and output function | USB data storage and output function | USB data storage and output function | USB data storage and output function |
| Data Storage | Standard | Standard | Optional | Optional |
| Printer | built-in micro printer(Optional) (Need to be matched with USB data storage and output function) | built-in micro printer(Optional) (Need to be matched with USB data storage and output function) | built-in micro printer(Optional) (Need to be matched with USB data storage and output function) | built-in micro printer(Optional) (Need to be matched with USB data storage and output function) |
| Safety Function | Upper and lower limit over-temperature audible and visual alarm Upper and lower limit over-speed alarm Sensor fault identification Independent over-temperature protector Independent leakage or over-current protection Refrigerator over-load protection | Upper and lower limit over-temperature audible and visual alarm Upper and lower limit over-speed alarm Sensor fault identification Independent over-temperature protector Independent leakage or over-current protection Refrigerator over-load protection | Upper and lower limit over-temperature audible and visual alarm Upper and lower limit over-speed alarm Sensor fault identification Independent over-temperature protector Independent leakage or over-current protection Refrigerator over-load protection | Upper and lower limit over-temperature audible and visual alarm Upper and lower limit over-speed alarm Sensor fault identification Independent over-temperature protector Independent leakage or over-current protection Refrigerator over-load protection |
| Consumption | 1500W | 2200W | 1500W | 2200W |
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) |
| Internal Size(W*D*H) | 870*590*398mm(Per unit) | 870*590*398mm(Per unit) | 870*590*398mm(Per unit) | 870*590*398mm(Per unit) |
| External Size(W*D*H) | 1150*780*640mm(Per unit) | 1150*780*640mm(Per unit) | 1150*780*640mm(Per unit) | 1150*780*640mm(Per unit) |
| Package Size(W*D*H) | 1345*970*910mm(Per unit) | 1345*970*910mm(Per unit) | 1345*970*910mm(Per unit) | 1345*970*910mm(Per unit) |
| Net Weight | 305kg(Per unit) | 325kg(Per unit) | 305kg(Per unit) | 325kg(Per unit) |
| Gross Weight | 335kg(Per unit) | 355kg(Per unit) | 335kg(Per unit) | 355kg(Per unit) |
| Model | Specification | Model | Tube Rack | Specification |
|---|---|---|---|---|
| Flask Clamp / BS-A10 | 50ml | Tube Rack | BS-A20 | 54-well, for 10ml centrifuge tube |
| Flask Clamp / BS-A11 | 100ml | Tube Rack | BS-A21 | 54-well, for 15ml centrifuge tube |
| Flask Clamp / BS-A12 | 150ml | Tube Rack | BS-A22 | 28-well, for 50ml centrifuge tube |
| Flask Clamp / BS-A13 | 200ml | Tube Rack | BS-A23 | 24-well, for 100ml centrifuge tube |
| Flask Clamp / BS-A14 | 250ml | Tube Rack | BS-A24 | 54-well, for 15*150mm tube |
| Flask Clamp / BS-A15 | 500ml | Tube Rack | BS-A25 | 54-well, for 18*180mm tube |
| Flask Clamp / BS-A16 | 1000ml | Tube Rack | BS-A26 | 54-well, for 20*200mm tube |
| Flask Clamp / BS-A17 | 2000ml | Tube Rack | BS-A27 | 32-well, for 25*200mm tube |
| Flask Clamp / BS-A18 | 3000ml | Tube Rack | BS-A28 | 28-well, for 30*200mm tube |
| Flask Clamp / BS-A18 | 3000ml | Tube Rack | BS-A50 | 54-well, for 7ml sampling tube |
| 96-well Plate / BS-A30 | 130*87*52mm | Tube Rack | BS-A51 | 54-well, for 10ml sampling tube |
| Clamping Rod Shaking Plate / BS-A40 | 320*300*70mm(for 50~2000ml conical flask) | Tube Rack | BS-A52 | 54-well, for 20ml sampling tube |
| Clamping Rod Shaking Plate / BS-A40 | 320*300*70mm(for 50~2000ml conical flask) | Tube Rack | BS-A53 | 54-well, for 30ml sampling tube |
Manufacturer catalogue checked 2026-09-28.
