Brand: BIOBASE | Category: Scientific & Laboratory Equipment

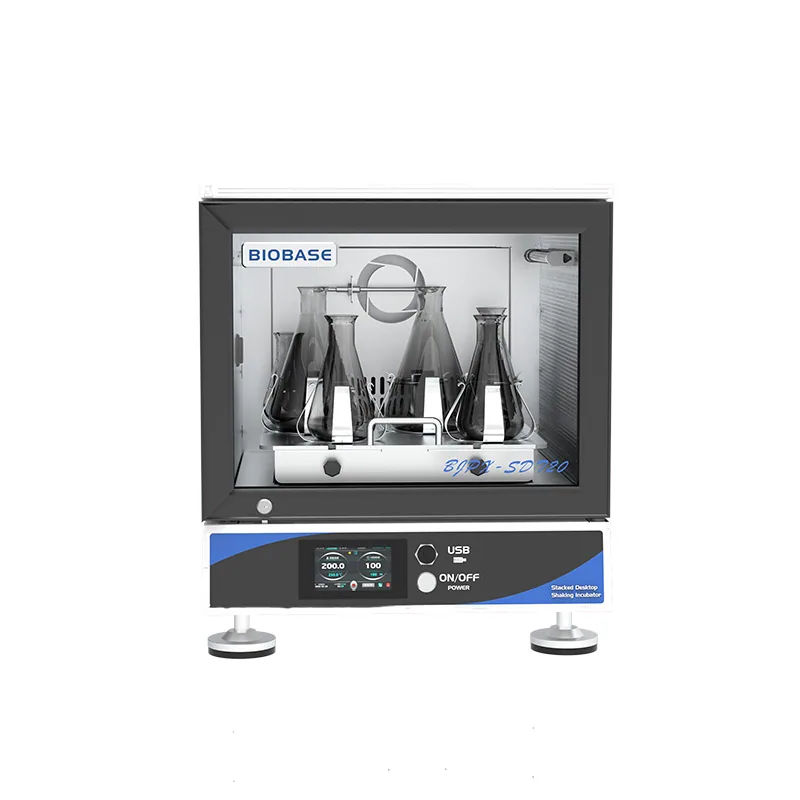

BIOBASE Stacked Large Capacity Shaking Incubator(BJPX-SDT) is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: BJPX-SDT10, BJPX-SDT20. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-SDT10 | BJPX-SDT20 |
|---|---|---|
| Capacity | 80L | 80L |
| Temp. Sensor | PT100 | PT100 |
| Temp. Range | RT+5~60℃ | 4~60℃ |
| Temp. Fluctuation | ≤±0.5℃ | ≤±0.5℃ |
| Temp. Uniformity | ≤±1℃(37℃） | ≤±1℃(37℃） |
| Temp. Precision | 0.1℃ | 0.1℃ |
| Timing Range | 0~999min | 0~999min |
| Controller | PID | PID |
| Display | 5-inch touch screen | 5-inch touch screen |
| Circulation Mode | Forced convection | Forced convection |
| Shaking Mode | Rotary shaking | Rotary shaking |
| Drive Mode | Single axis balanced drive type | Single axis balanced drive type |
| Vibration Range | Φ26mm | Φ26mm |
| Rotating Speed | 30~300r/min | 30~300r/min |
| Rotating Accuracy | ±1r/min | ±1r/min |
| Shaking Plate Size | 420*400mm | 420*400mm |
| Shaking Plate Quantity | 1pc | 1pc |
| Max. Capacity | 250ml*16 or 500ml*9 or 1000ml*9 or 2000ml*5(Flask clamp) Tube rack*2 96-well plate*8 Clamping rod shaking plate*1 | 250ml*16 or 500ml*9 or 1000ml*9 or 2000ml*5(Flask clamp) Tube rack*2 96-well plate*8 Clamping rod shaking plate*1 |
| Standard. Capacity | 500ml*9 | 500ml*9 |
| Lighting Mode | LED lamp*1 | LED lamp*1 |
| Sterilization Mode | UV lamp*1 | UV lamp*1 |
| Refrigerant | / | R290, 70g |
| Ambient Temp. | 15~35℃ | 15~35℃ |
| Internal Material | 304 stainless steel | 304 stainless steel |
| External Material | Cold rolled steel sheet | Cold rolled steel sheet |
| Safety Function | High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm | High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm |
| Consumption | 1000W | 1600W |
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) |
| Internal Size(W*D*H) | 495*455*370mm(Per unit) | 495*455*370mm(Per unit) |
| External Size(W*D*H) | 580*830*600mm(Per unit) | 580*830*600mm(Per unit) |
| Package Size(W*D*H) | 705*975*865mm(Per unit) | 705*975*865mm(Per unit) |
| Net Weight | 138kg(Per unit) | 158kg(Per unit) |
| Gross Weight | 168kg(Per unit) | 188kg(Per unit) |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
