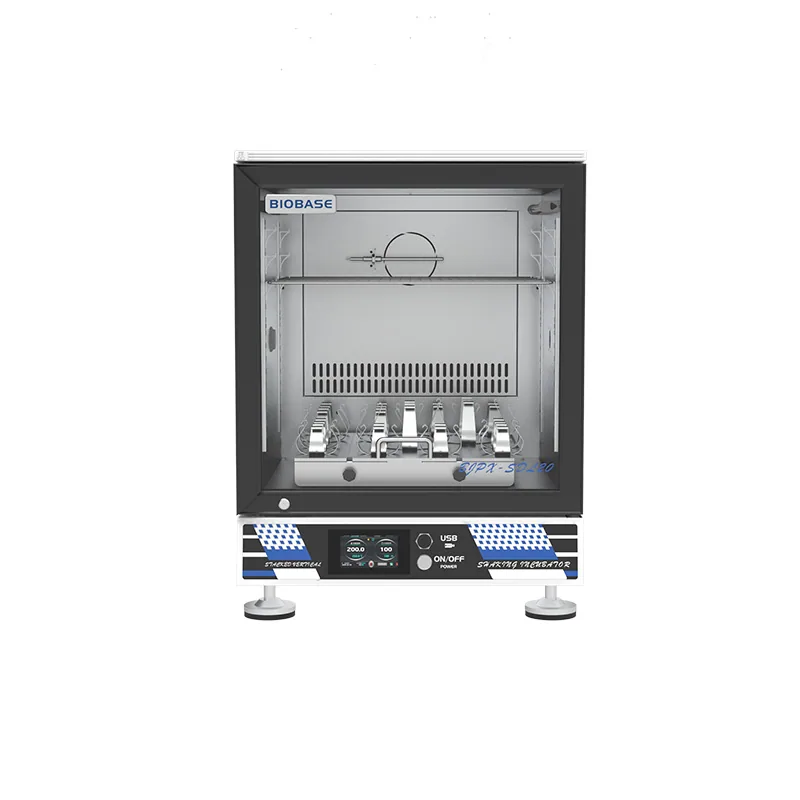

Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Stacked Large Capacity Shaking Incubator(BJPX-SDL) is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: BJPX-SDL10, BJPX-SDL20. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BJPX-SDL10 | BJPX-SDL20 |
|---|---|---|
| Capacity | 155L | 155L |
| Temp. Sensor | PT100 | PT100 |
| Temp. Range | RT+5~60℃ | 4~60℃ |
| Temp. Fluctuation | ≤±0.5℃ | ≤±0.5℃ |
| Temp. Uniformity | ≤±1℃(37℃） | ≤±1℃(37℃） |
| Temp. Precision | 0.1℃ | 0.1℃ |
| Timing Range | 0~999min | 0~999min |
| Controller | PID | PID |
| Display | 5-inch touch screen | 5-inch touch screen |
| Circulation Mode | Forced convection | Forced convection |
| Shaking Mode | Rotary shaking | Rotary shaking |
| Drive Mode | Single axis balanced drive type | Single axis balanced drive type |
| Vibration Range | Φ26mm | Φ26mm |
| Rotating Speed | 30~300r/min | 30~300r/min |
| Rotating Accuracy | ±1r/min | ±1r/min |
| Shaking Plate Size | 460*450mm | 460*450mm |
| Max. Capacity / Single Layer Shaker Plate | 250ml*20 or 500ml*14 or 1000ml*9 or 2000ml*6 or 5000ml*3(Flask clamp) Tube rack*2 96-well plate*12 Clamping rod shaking plate*1 | 250ml*20 or 500ml*14 or 1000ml*9 or 2000ml*6 or 5000ml*3(Flask clamp) Tube rack*2 96-well plate*12 Clamping rod shaking plate*1 |
| Max. Capacity / Double Layer Shaker Plate | Upper Layer: 50ml*60 or 100ml*60 or 250ml*40 or 500ml*30(Flask clamp) Lower Layer: Universal spring clamp | Upper Layer: 50ml*60 or 100ml*60 or 250ml*40 or 500ml*30(Flask clamp) Lower Layer: Universal spring clamp |
| Standard. Capacity | 500ml*14(Single layer) | 500ml*14(Single layer) |
| Lighting Mode | LED lamp*1 | LED lamp*1 |
| Sterilization Mode | UV lamp*1 | UV lamp*1 |
| Refrigerant | / | R290, 80g |
| Ambient Temp. | 15~35℃ | 15~35℃ |
| Internal Material | 304 stainless steel | 304 stainless steel |
| External Material | Cold rolled steel sheet | Cold rolled steel sheet |
| Safety Function | High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm | High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm |
| Consumption | 1200W | 1800W |
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) |
| Internal Size(W*D*H) | 560*500*555mm(Per unit) | 560*500*555mm(Per unit) |
| External Size(W*D*H) | 650*840*810mm(Per unit) | 650*840*810mm(Per unit) |
| Package Size(W*D*H) | 775*1005*1070mm(Per unit) | 775*1005*1070mm(Per unit) |
| Net Weight | 195kg(Per unit) | 215kg(Per unit) |
| Gross Weight | 225kg(Per unit) | 245kg(Per unit) |
Manufacturer catalogue checked 2026-09-28.
