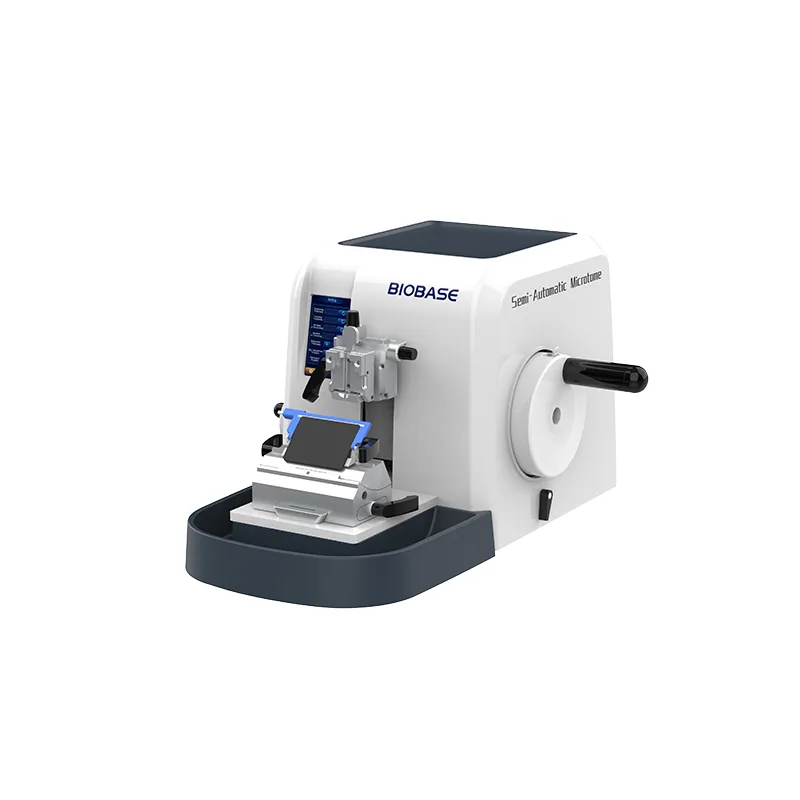

BIOBASE Semi-Automatic Microtome BK-2238
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Semi-Automatic Microtome BK-2238 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: BK-2238. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-2238 |
|---|---|
| Sectioning Thickness Range | 0.25~100μm |
| Trimming Thickness Range | 1~600μm |
| Retraction Range | 0~200μm |
| Mini. Sectioning Thickness | 0.25μm |
| Precision | ±5% |
| Velocity Of Small Hand Wheel | 200~1000μm, adjustable |
| Max Specimen Size | 70*70mm |
| Specimen Stroke | Horizontal: 28mm, Vertical: 70mm |
| Tool Holder Stroke | The maximum movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm |
| Sample Adjustment Direction | Horizontal 8° Vertical 8° Rotation 90° |
| Power Supply | AC110/220V, 50/60Hz |
| Power | 100W |
| External Size(W*D*H) | 610*490*340mm |
| Net Weight | 37kg |
| Packing Size(W*D*H) | 730*610*590mm |
| Gross Weight | 55kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
