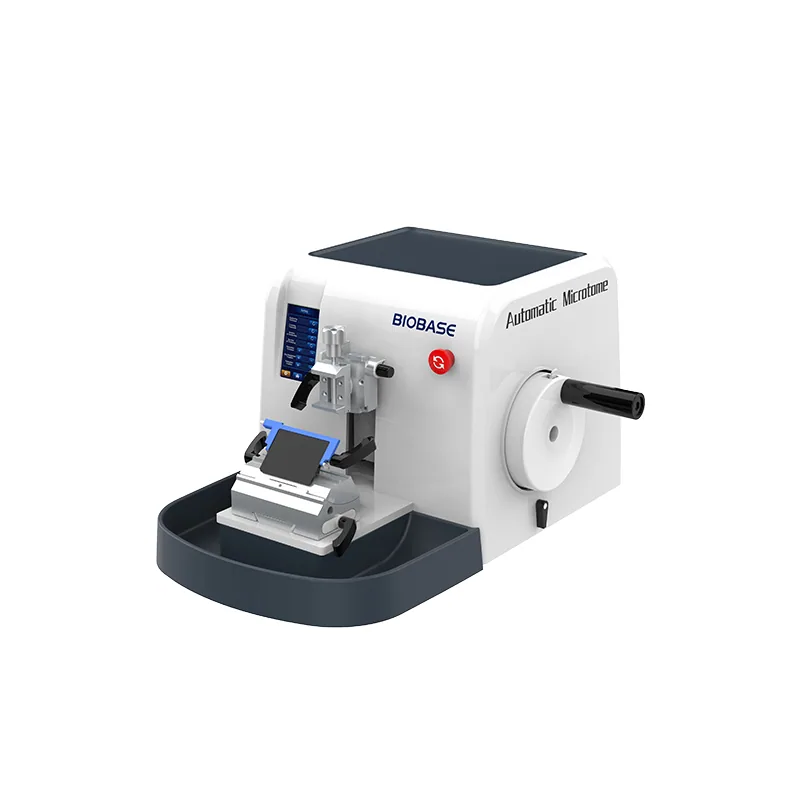

BIOBASE Automatic Microtome BK-2228
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Automatic Microtome BK-2228 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: BK-2228. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Mode | BK-2228 |
|---|---|
| Sectioning Thickness Range | 0.25~100μm |
| Trimming Thickness Range | 1~600μm |
| Retraction Range | 0~200μm |
| Mini. Sectioning Thickness | 0.25μm |
| Automatic Sectioning Speed | 1~10 speed levels adjustable |
| Precision | ±5% |
| Max Specimen Size | 70*70mm |
| Specimen Stroke | Horizontal: 28mm, Vertical: 70mm |
| Tool Holder Stroke | The maximum movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm |
| Sample Adjustment Direction | Horizontal 8° Vertical 8° Rotation 90° |
| Power Supply | AC110/220V, 50/60Hz |
| Power | 150W |
| External Sizee(W*D*H) | 610*490*340mm |
| Net Weight | 45kg |
| Packing Sizee(W*D*H) | 730*610*590mm |
| Gross Weight | 65kg |
Manufacturer catalogue checked 2026-09-28.
