Brand: BIOBASE | Category: Medical Equipment

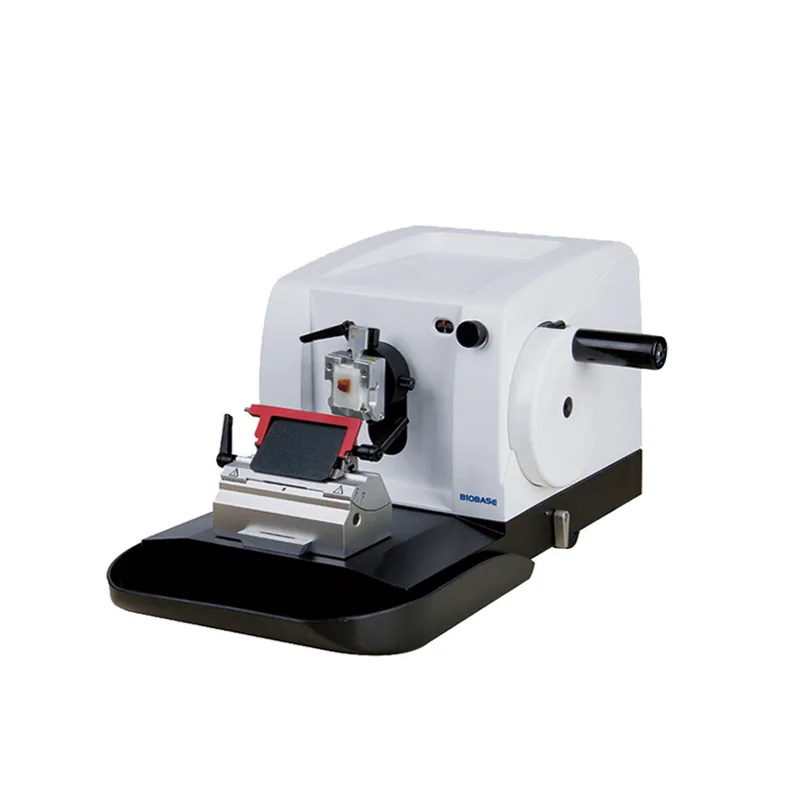

BIOBASE BK-2218 BK-2268 Manual Rotary Microtome is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: BK-2218, BK-2268. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-2218 | BK-2268 |
|---|---|---|
| Function | Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (Only for BK-2268). | Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (Only for BK-2268). |
| Sectioning Thickness Range | 0~60μm | 0~60μm |
| Section Thickness Setting Options | 0〜2μm increment 0.5μm 2〜10μm increment 1μm 10~20μm increment 2μm 20〜60μm increment 5μm | 0 〜2μ m increment 0.5μm 2 〜20μm increment 1μm 20~60μm increment 5μm |
| Trimming Thickness Range | 0〜60μm | 0〜60μm |
| Mini. Sectioning Thickness | 1pm | 1pm |
| Max. Specimen Size | 60*70mm (optional clamp) | 70*70mm (optional clamp) |
| Precision | ±1% | ±1% |
| Specimen Horizontal Stroke | 29mm | 28mm |
| Specimen Vertical Stroke | 60mm | 70mm |
| Specimen Orientation | XY-8° | XY-8° |
| External Size(W*D*H) | 570*440*290mm | 590*500*330mm |
| Package Size(W*D*H) | 620*530*450mm | 690*590*500mm |
| Gross Weight | 40kg | 54kg |
Manufacturer catalogue checked 2026-09-28.
