Brand: BIOBASE | Category: Medical Equipment

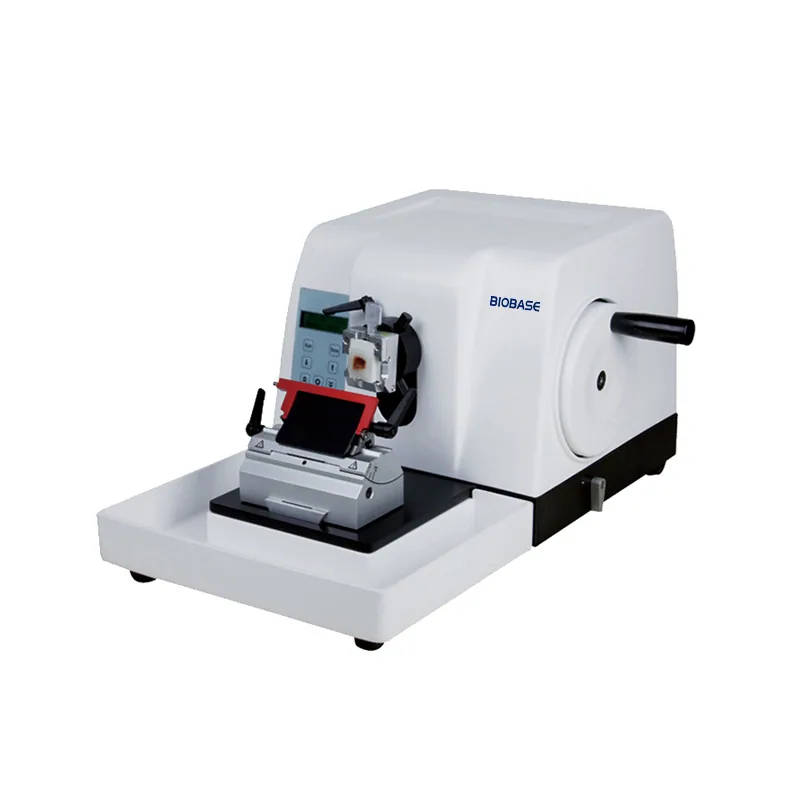

BIOBASE BK-2478 Automatic And Semi-automatic Microtome Machine is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: BK-2478, BK-2488, BK-2498. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-2478 | BK-2478 | BK-2488 | BK-2498 |
|---|---|---|---|---|
| Mode | Semi-automatic without intelligent sensing | Semi-automatic without intelligent sensing | Semi-automatic with intelligent sensing | Automatic or Manual Mode without intelligent sensing |
| Function | Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (exceptBK-2478). | Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (exceptBK-2478). | Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (exceptBK-2478). | Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (exceptBK-2478). |
| Retraction Range | / | / | 0~50μm ( If 0 is set, retraction function is off ); 5~50 (Retraction distance is optional in this range, and increment is 5μm, such as, 5, 10, 15, 25...) | 0~50μm ( If 0 is set, retraction function is off ); 5~50 (Retraction distance is optional in this range, and increment is 5μm, such as, 5, 10, 15, 25...) |
| Display | LCD Display:; sectioning thickness,; trimming thickness,; slice count. | LCD Display:; sectioning thickness,; trimming thickness,; slice count. | OLED Display:; sectioning thickness, trimming thickness,; slice count. | LED display:; sectioning thickness,; trimming thickness,; slice count,; slice speed. |
| Sectioning Thickness Range | 0~60μm; 0~1.0μm increment 0.25μm; 1~10μm increment 1μm; 10~20μm increment 2μm; 20~60μm increment 5μm | 0~60μm; 0~1.0μm increment 0.25μm; 1~10μm increment 1μm; 10~20μm increment 2μm; 20~60μm increment 5μm | 0.25~100μm; 0.25~2.5μm increment 0.25μm; 2.5~5μm increment 0.5μm; 5.0~10μm increment 1μm; 10~30μm increment 2μm; 30~60μm increment 5μm; 60~100μm increment 10μm ; | 0.25~100μm; 0.25~2.5μm increment 0.25μm; 2.5~5μm increment 0.5μm; 5.0~10μm increment 1μm; 10~30μm increment 2μm; 30~60μm increment 5μm; 60~100μm increment 10μm ; |
| Trimming Thickness Range | 0 ~60, 0~100, 1~900μm; 1~10μm increment 1μm; 10~20μm increment 2μm; 20~100μm increment 5μm; 100~900μm increment50μm | 0 ~60, 0~100, 1~900μm; 1~10μm increment 1μm; 10~20μm increment 2μm; 20~100μm increment 5μm; 100~900μm increment50μm | 1~600μm; 1~10μm increment 1μm; 10~20μm increment 2μm; 20~50μm increment 5μm; 50~150μm increment 10μm; 150~600μm increment 50μm ; | 1~600μm; 1~10μm increment 1μm; 10~20μm increment 2μm; 20~50μm increment 5μm; 50~150μm increment 10μm; 150~600μm increment 50μm ; |
| Whole Layer Clearance Distance(Only for BK-2488) | 10~6000μm; (10, 12, 15, 20.....6000, after 15μm, the increment is 5μm) | 10~6000μm; (10, 12, 15, 20.....6000, after 15μm, the increment is 5μm) | 10~6000μm; (10, 12, 15, 20.....6000, after 15μm, the increment is 5μm) | 10~6000μm; (10, 12, 15, 20.....6000, after 15μm, the increment is 5μm) |
| Specimen HorizontalStroke | 28mm | 28mm | 28mm | 28mm |
| Specimen Vertical Stroke | 52 mm | 52 mm | 70mm | 70mm |
| Specimen Orientation | XY – 8°, rotation 360° | XY – 8°, rotation ±90° | XY – 8°, rotation ±90° | XY – 8°, rotation ±90° |
| Mini. Sectioning Thickness | 0.25μm | 0.25μm | 0.25μm | 0.25μm |
| Max. Specimen Size | 50*70mm | 70*70mm | 70*70mm | 70*70mm |
| Feed Speed | 450μm/s | 1500μm/s,3500μm/s | 1500μm/s,3500μm/s | 1500μm/s,3500μm/s |
| Precision | ±5% | ±5% | ±5% | ±5% |
| Standard Accessory | Cassette Clamp or Paraffin Block Clamp(Paraffin BlockClamp is acquiescent) | Cassette Clamp or Paraffin Block Clamp(Paraffin BlockClamp is acquiescent) | Cassette Clamp or Paraffin Block Clamp(Paraffin BlockClamp is acquiescent) | Cassette Clamp or Paraffin Block Clamp(Paraffin BlockClamp is acquiescent) |
| Consumption | 100W | 100W | 100W | 150W |
| Power Supply | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz |
| External Size(W*D*H) | 585*410*305mm | 575*420*330mm | 575*420*330mm | 580*475*340mm |
| Package Size(W*D*H) | 670*550*480mm | 670*550*480mm | 670*550*480mm | 680*570*500mm |
| Gross Weight | 45kg | 45kg | 45kg | 60kg |
Manufacturer catalogue checked 2026-09-28.
