Brand: BIOBASE | Category: Scientific & Laboratory Equipment

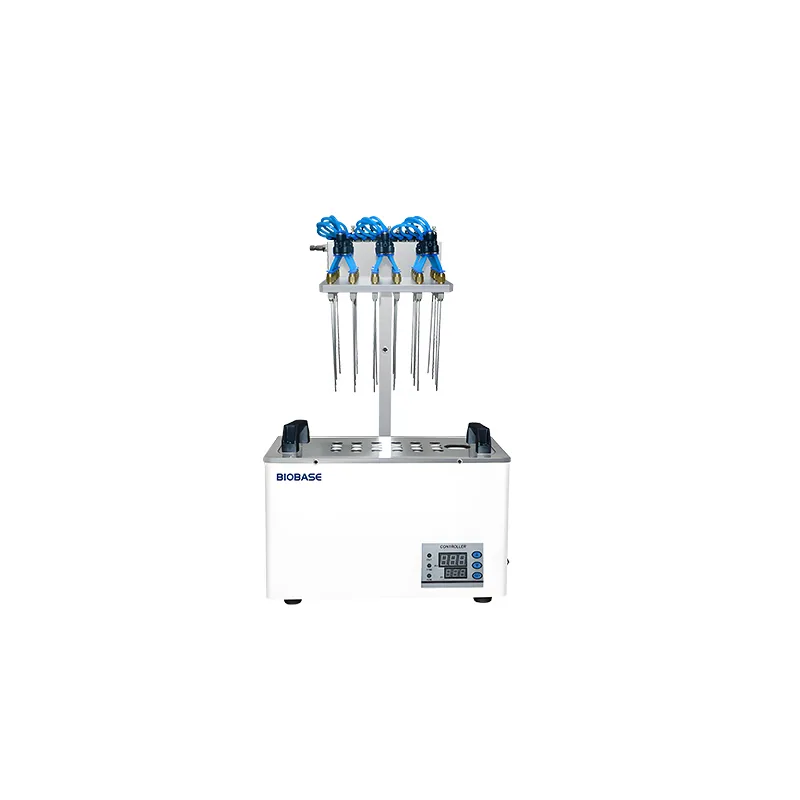

BIOBASE Sample Concentrator is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-SC12, BK-SC24, BK-SC36, BK-SC48. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-SC12 | BK-SC24 | BK-SC36 | BK-SC48 |
|---|---|---|---|---|
| Heating Method | Water bath | Water bath | Water bath | Water bath |
| Max Number of Samples | 12 | 24 | 36 | 48 |
| Temp. Control Range | RT~100℃ | RT~100℃ | RT~100℃ | RT~100℃ |
| Temp. Accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Heating Time | 20~25min(From 25℃ to 100℃) | 20~25min(From 25℃ to 100℃) | 20~25min(From 25℃ to 100℃) | 20~25min(From 25℃ to 100℃) |
| Max Gas Usage | 15L/min | 15L/min | 15L/min | 15L/min |
| Consumption | 600W | 600W | 600W | 600W |
| Timing Range | 1~999min | 1~999min | 1~999min | 1~999min |
| Needle Length | 150mm | 150mm | 150mm | 150mm |
| Needle Diameter | 1mm | 1mm | 1mm | 1mm |
| Power Supply | 220V, 50/60Hz | 220V, 50/60Hz | 220V, 50/60Hz | 220V, 50/60Hz |
| External Size(W*D*H) | 340*200*460mm | 340*200*460mm | 340*200*460mm | 340*200*460mm |
| Packing Size(W*D*H) | 500*280*410mm | 500*280*410mm | 500*280*410mm | 500*280*410mm |
| Net Weight | 7kg | 7.5kg | 7.5kg | 8kg |
| Gross Weight | 9kg | 9.5kg | 9.5kg | 10kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
Temp. Control Range: RT+5°C~160°C. Match sample volume, solvent, temperature and vacuum requirements.
Rotary Bottle Volume: 5LΦ230mm/Φ50 Flange mouth; Collecting Bottle Volume: 3LΦ195mm/35#ball mill mouth. Match sample volume, solvent, temperature and vacuum requirements.
Temp. Control Range: RT.+5°C~160°C. Match sample volume, solvent, temperature and vacuum requirements.
