Brand: BIOBASE | Category: Scientific & Laboratory Equipment

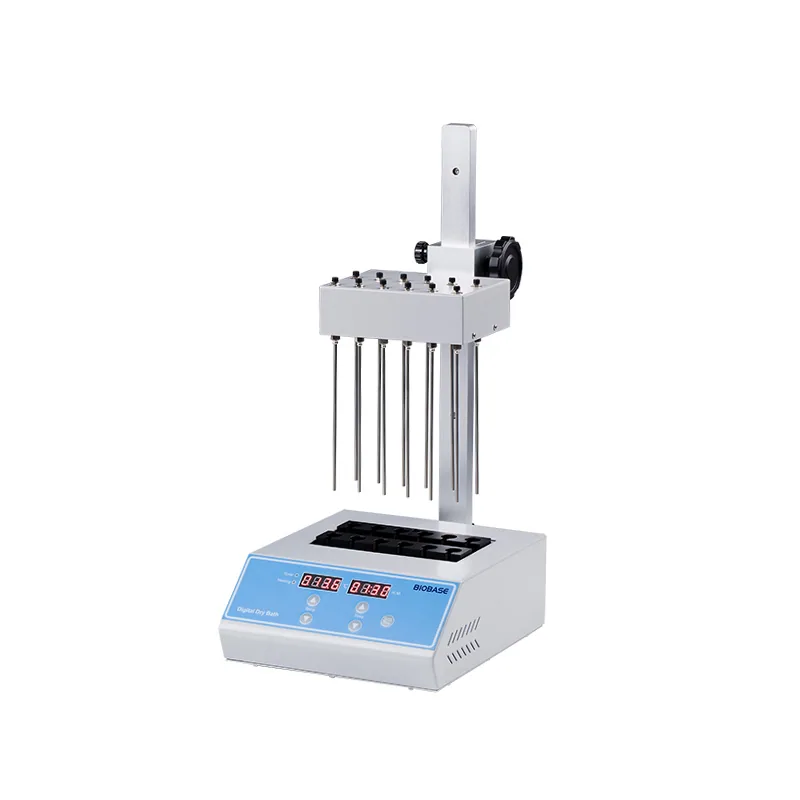

BIOBASE Sample Concentrator(visible) is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-SC400. Published details include Temp. Control Range: RT.+5°C~160°C. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-SC400 |
|---|---|
| Temp. Control Range | RT.+5°C~160°C |
| Temp. Uniformity | ≤±0.5°C |
| Display Accuracy | 0.1°C |
| Heating Time | ≤15min(from 25°C to 160°C) |
| Nitrogen Flow Rate | 15L/min |
| Nitrogen Rressure | 0.1Mpa |
| Max Power | 500W |
| Dimension | 260*220*475mm |
| Temp. Accuracy | ±0.5°C(@40°C) |
| Temp. Accuracy | ±1°C(@120°C) |
| Timing Range | 1min~99h59min/∞ |
| Needle Length | 150mm |
| Block Quantity | 1 |
| Voltage | 220V, 50/60Hz; 110V, 60Hz |
| Packing Size(W*D*H) | 430*420*340mm |
| Weight(kg) | 7.3 |
| Gross Weight(kg) | 10.0 |
| Type | Diameter | Depth | Capacity |
|---|---|---|---|
| B02 027 001 | 10.5mm | 50mm | 12 |
| B02 027 002 | 12.5mm | 50mm | 12 |
| B02 027 003 | 13.5mm | 50mm | 12 |
| B02 027 004 | 15.5mm | 50mm | 12 |
| B02 027 005 | 16.5mm | 50mm | 12 |
| B02 027 006 | 19.5mm | 50mm | 12 |
| B02 027 007 | 20.5mm | 50mm | 12 |
| Choose one as a standard block. | Choose one as a standard block. | Choose one as a standard block. | Choose one as a standard block. |
Manufacturer catalogue checked 2026-09-28.
