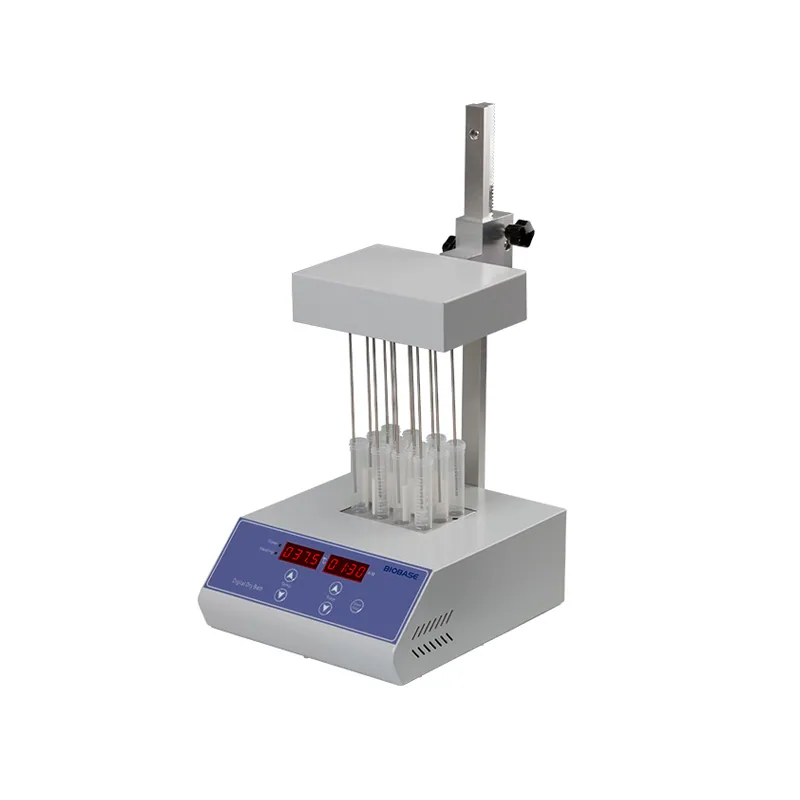

BIOBASE Sample Concentrator BK-SC100
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Sample Concentrator BK-SC100 is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-SC100. Published details include Temp. Control Range: RT+5°C~160°C. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-SC100 |
|---|---|
| Temp. Control Range | RT+5°C~160°C |
| Temp. Uniformity | ≤±0.5°C |
| Display Accuracy | 0.1°C |
| Heating Time | ≤15min(from 25°C to 160°C) |
| Max Gas Usage | 15L/min |
| Max Gas Pressure | 0.02Mpa(Gas pin≤16pcs) 0.05Mpa(Gas pin>16pcs) |
| Max Power | 300W |
| Dimension | 260*220*450mm |
| Temp. Accuracy | ±0.5°C(@40°C) |
| Temp. Accuracy | ±1°C(@120°C) |
| Timing Range | 1~99h59min/∞ |
| Max Vertical Travel | 200mm |
| Needle Length | 150mm |
| Block Quantity | 1 |
| Voltage | 220V, 50/60Hz; 110V, 60Hz |
| Packing Size(W*D*H) | 430*420*340mm |
| Weight(kg) | 7.0 |
| Gross Weight(kg) | 9.0 |
| Type | Test Tube Diameter | Capacity |
|---|---|---|
| B03 | 10mm | 24 |
| B04 | 12mm | 24 |
| B05 | 13mm | 24 |
| B06 | 15mm | 16 |
| B07 | 16mm | 16 |
| B08 | 19mm | 12 |
| B09 | 20mm | 12 |
| B10 | 26mm | 8 |
| B11 | 28mm | 4 |
| B12 | 40mm | 3 |
| B15 | 1.5ml(centrifuge tube) | 24 |
| B16 | 2.0ml(centrifuge tube) | 24 |
| Choose one as a standard block. | Choose one as a standard block. | Choose one as a standard block. |
Manufacturer catalogue checked 2026-09-28.
