Brand: BIOBASE | Category: Scientific & Laboratory Equipment

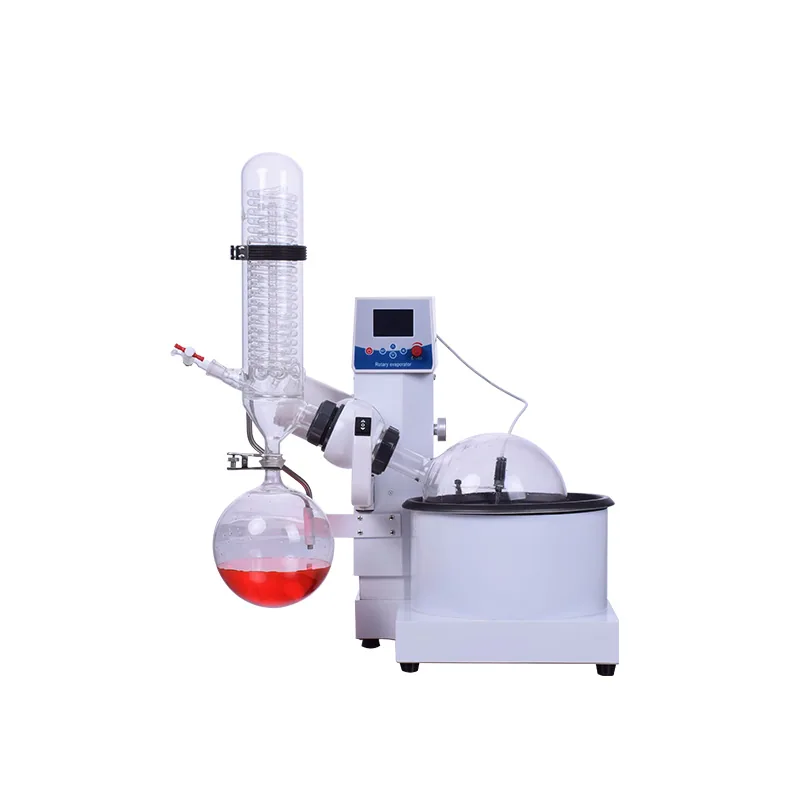

BIOBASE Rotary Evaporator RE-5000 is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: RE-5000. Published details include Rotary Bottle Volume: 5LΦ230mm/Φ50 Flange mouth; Collecting Bottle Volume: 3LΦ195mm/35#ball mill mouth. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | RE-5000 |
|---|---|
| Rotary Bottle Volume | 5LΦ230mm/Φ50 Flange mouth |
| Collecting Bottle Volume | 3LΦ195mm/35#ball mill mouth |
| Rotary Speed | 0-200rpm/min |
| Temp. Control Range | RT-99℃ |
| Temp. Control Accuracy | ±1℃ |
| Stroke Height | 90mm |
| Condenser Size | 19#standard size |
| Condenser Square Meter | 0.26㎡ |
| Charging Valve | 19#standard size, Feeding nozzle (pagoda joint) outer diameter 10mm |
| Vacuum Suction Nozzle | Pagoda connector outer diameter 10mm |
| Condensation Coil Circulation Nozzle | Pagoda connector outer diameter 12mm |
| Bath Size | Φ275*160H(mm),9.5L |
| Product Size | 690*440*（825-915）mm |
| Overall Power | 1560W |
| Rotary Motor Power | 40W |
| Lifting Motor Power | 20W |
| Heating Power | 1500W |
| Vacuum | 0.098Mpa |
| Power Supply | Standard: 220V 50/60Hz, optional: 110V 50/60Hz |
| Net Weight | 30KG |
| Packing Size | 615*485*650mm |
| Gross Weight | 48KG |
| Appliable Vacuum | SHZ-DIII |
| Appliable Recirculating Chiller | DLSB-5/20 |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
