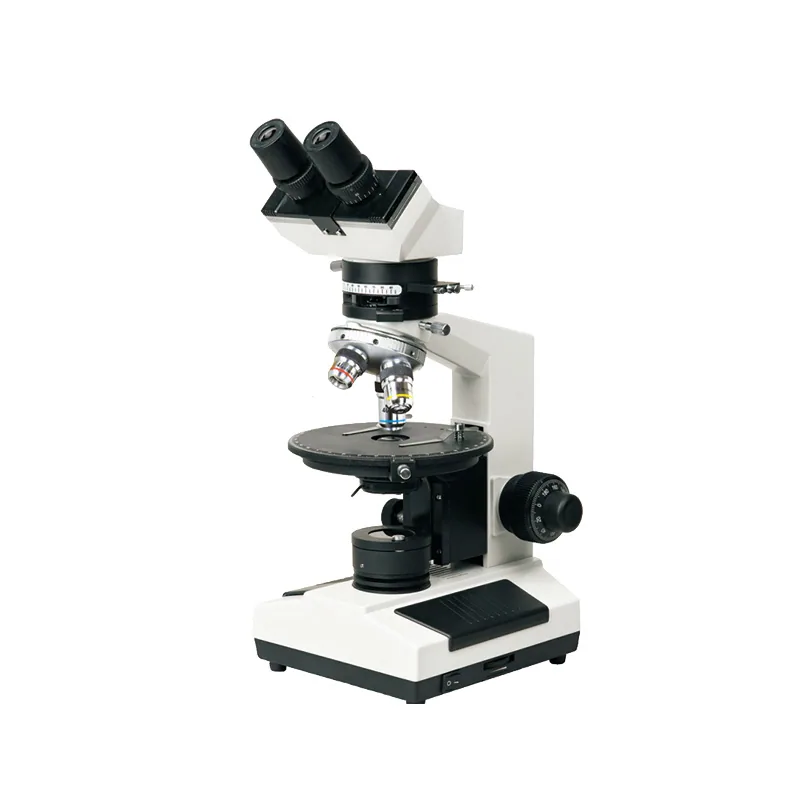

BIOBASE Polarizing Biological Microscope BMP-107B BMP-107T
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Polarizing Biological Microscope BMP-107B BMP-107T is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BMP-107B, BMP-107T. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BMP-107B | BMP-107T |
|---|---|---|
| Viewing Head / Sliding Binocular Head at 45°, 360° rotatable | √ | / |
| Viewing Head / Sliding Trinocular Head at 45°, 360° rotatable | / | √ |
| Eyepiece / Eyepiece WF10X/18 with Scale of Crosshair | √ | √ |
| Eyepiece / Eyepiece WF10X/18 | √ | √ |
| Objective / Strain free Achromatic Objective 4X, 10X, 40X | √ | √ |
| Nosepiece / Toward Quadruple Nosepiece, Center Adjustable | √ | √ |
| Analyzer / Rotatable Analyzer with Gradation 0°~90° | √ | √ |
| Bertrand Lens / Bertrand Lens, Sliding in/out of Optical Path | √ | √ |
| Optical Compensator / λ Slip(first class red) | √ | √ |
| Optical Compensator / 1/4λ Slip | √ | √ |
| Optical Compensator / Quartz wedge | √ | √ |
| Revolving; Round Stage / Diameter Φ160mm, Graduated in 1° Increments, Minimum Resolution 6' when using Vernier Scale | √ | √ |
| Condenser / Abbe Condenser with Iris Diaphragm & Filter | √ | √ |
| Focusing / Coaxial Coarse&Fine Adjustment, Range 28mm, Fine Division 0.002mm | √ | √ |
| Polarizer / Sliding in/out of Optical Path, Located on the Top of Collector | √ | √ |
| Illumination / 6V/20W Halogen Lamp, Brightness Adjustable | √ | √ |
| Power Supply / AC110~220V, 50/60Hz | √ | √ |
| Package Size / 327*273*425mm | √ | √ |
| Gross Weight / 7.5kg | √ | √ |
Manufacturer catalogue checked 2026-09-28.
