Brand: BIOBASE | Category: Scientific & Laboratory Equipment

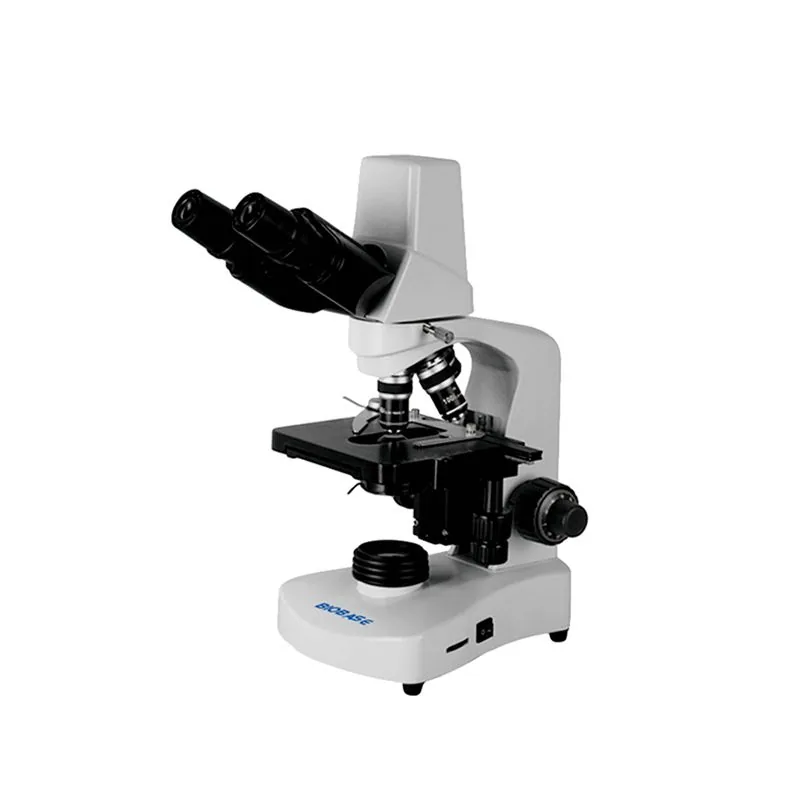

BIOBASE Build-in Camera Biological Microscope BMB-117M BMB-300M is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BMB-117M, BMB-300M. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BMB-117M | BMB-300M |
|---|---|---|
| Viewing Head / Compensation Free Binocular Head, Inclined at 30°, ; Interpupilary Distance 48~75mm | √ | √ |
| Viewing Head / Camera; System / Valid Pixel / 1280*1024(1.3M Pixel) | √ | / |
| Viewing Head / Camera; System / Valid Pixel / 1600*1200(2.0M Pixel) | ● | / |
| Viewing Head / Camera; System / Valid Pixel / 2048*1036(3.0M Pixel) | ● | √ |
| Viewing Head / Camera; System / Valid Pixel / 2052*1944(5.0M Pixel) | / | ● |
| Viewing Head / Camera; System / Output Mode / USB2.0 | √ | √ |
| Viewing Head / Camera; System / Operation System / WINDOWS7/8 2000/XP/VISTA | √ | √ |
| Viewing Head / Camera; System / Software / Scope image 9.0 | √ | √ |
| Viewing Head / Camera; System / Range of Viewing Field / >90%(BMB-117M); 18mm(BMB-300M) | √ | √ |
| Eyepiece / WF10X/18 | √ | √ |
| Eyepiece / P16X/11 | ● | / |
| Eyepiece / Extra Wide Filed Eyepiece EW10X/20 with Diopter Adjustment | / | ● |
| Objective / Achromatic Objective 4X, 10X, 40X, 100X | √ | / |
| Objective / Infinite Plan Achromatic Objective 4X, 10X, 40X, 100X | / | √ |
| Objective / Infinite Plan Achromatic Phase Objective 10X, 20X, 40X, 100X | / | ● |
| Objective / Oil Darkfield Objective with Iris Diaphragm 100X(NA0.36~1.25) | / | ● |
| Nosepiece / Backward Quadruple Nosepiece | √ | / |
| Nosepiece / Quintuple Nosepiece | / | / |
| Nosepiece / Quadruple Nosepiece | / | √ |
| Stage / Double Layers Mechanical Stage 140*140mm, Moving Range 75*50mm | √ | √ |
| Condenser / Abbe NA1.20 with Iris Diaphragm&Fliter | √ | / |
| Condenser / Swing Condenser N.A.0.9/0.25 | / | √ |
| Condenser / Turret Phase Contrast Condenser | / | ● |
| Condenser / Dark Field Condenser(Dry) | / | ● |
| Condenser / Dark Field Condenser(Oil) | / | ● |
| Focusing / Coaxial Coarse&Fine Adjustment System, Range 24mm, Fine Division 0.004mm | √ | / |
| Focusing / Coaxial Coarse&Fine Adjustment System, Range 20mm | / | √ |
| Illumination / LED 3W, Brightness Adjustable | √ | / |
| Illumination / Halogen Lamp 6V/20W, Brightness Adjustable | ● | / |
| Illumination / S-LED Powerful Illumination | / | √ |
| Power Supply / AC110~220V, 50/60Hz | √ | √ |
| Accessories / Phase Contrast Kit | ● | ● |
| Accessories / Dark-Field Attachment | ● | ● |
| Accessories / Polarization Attachment | ● | ● |
| Package Size / 396*262*492mm(BMB-117M), 334*334*533mm(BMB-300M) | √ | √ |
| Gross Weight / 7.5kg(BMB-117M), 12.5kg(BMB-300M) | √ | √ |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
