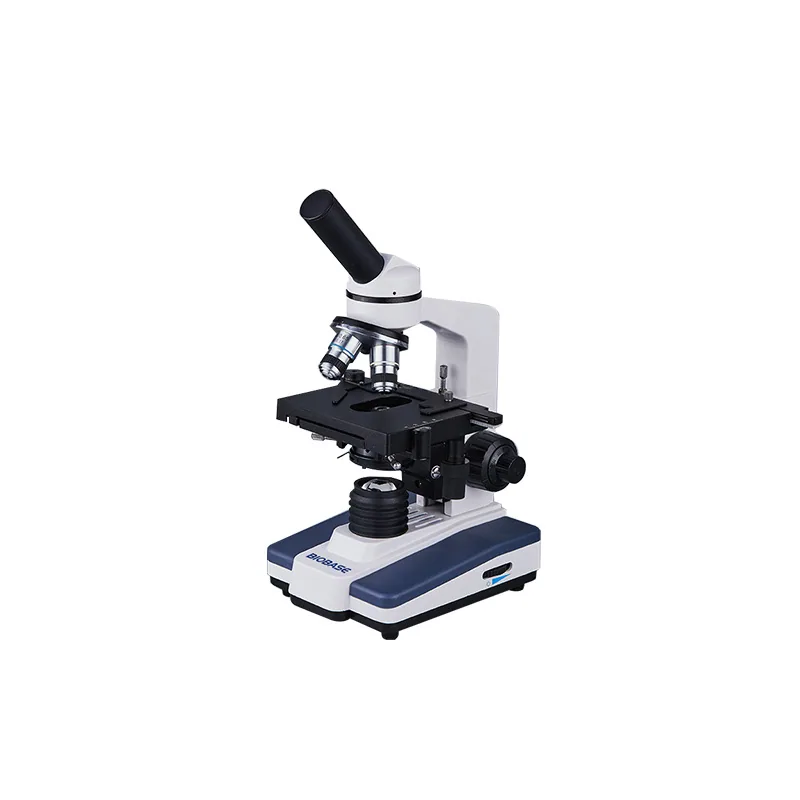

BIOBASE Biological Microscope BM-F101 BM--F102 BM-F103 BM-F104 BM-F105 BM-F106 BM-F108
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Biological Microscope BM-F101 BM--F102 BM-F103 BM-F104 BM-F105 BM-F106 BM-F108 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BM-F101, BM-F102, BM-F103, BM-F104, BM-F105, BM-F106. Compare the remaining models in the specification tables. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BM-F101 | BM-F102 | BM-F103 | BM-F104 | BM-F105 | BM-F106 | BM-F108 |
|---|---|---|---|---|---|---|---|
| Eyepiece / Wide Field Eyepieces WF10X(WF25X or WF20X or WF16X optional) | √ | √ | √ | √ | √ | √ | √ |
| Viewing Head / Compensation Free Binocular Head | ; | ; | ; | √ | √ | ; | ; |
| Viewing Head / Dual Viewing Head, one Tube 30º Inclined and Another Tube Vertical, 360º Rotatable | ; | √ | √ | ; | ; | ; | ; |
| Viewing Head / Compensation Free Trinocular Head | ; | ; | ; | ; | ; | √ | √ |
| Viewing Head / Monocular | √ | ; | ; | ; | ; | ; | ; |
| Achromatic Objective / 4X,10X,40X(Spring),100X(Spring, Oil)(185) | √ | √ | √ | √ | √ | √ | √ |
| Achromatic Objective / 4X,10X,40X(Spring), 100X(Spring, Oil)(195) | ● | ● | ● | ● | ● | ● | ● |
| Nosepiece / Triple Nosepiece | ● | ● | ● | ● | ● | ● | ● |
| Nosepiece / Quadruple Nosepiece | √ | √ | √ | √ | √ | √ | √ |
| Stage / Double Layer Mechanical Stage, Size: 110*125mm | √ | ; | √ | ; | √ | ; | √ |
| Stage / Plain Stage with Moving Scale | ; | √ | ; | √ | ; | √ | ; |
| Focusing / Coaxial Coarse and Fine Adjustment, Focusing Range 20mm | √ | √ | √ | √ | √ | √ | √ |
| Condenser / Simple N. A=1.25 Abbe Condenser &Iris Diaphragm | ; | √ | ; | √ | ; | √ | ; |
| Condenser / Handwheel Adjustment; N.A=1.25 Abbe Condenser &Iris Diaphragm | √ | ; | √ | ; | √ | ; | √ |
| Illumination / No Strobe High Brightness LED Light | √ | √ | √ | √ | √ | √ | √ |
| Power Supply / AC Input 100~240V 50/60Hz, DC Output 12V | √ | √ | √ | √ | √ | √ | √ |
| Package Size(W*D*H)mm | 270*310*410 | 270*310*410 | 270*310*410 | 270*310*410 | 270*310*410 | 270*310*410 | 270*310*410 |
| Gross Weight(kg) | 4 | 4 | 4.2 | 4.5 | 5 | 5 | 5.2 |
Manufacturer catalogue checked 2026-09-28.
