Brand: BIOBASE | Category: Scientific & Laboratory Equipment

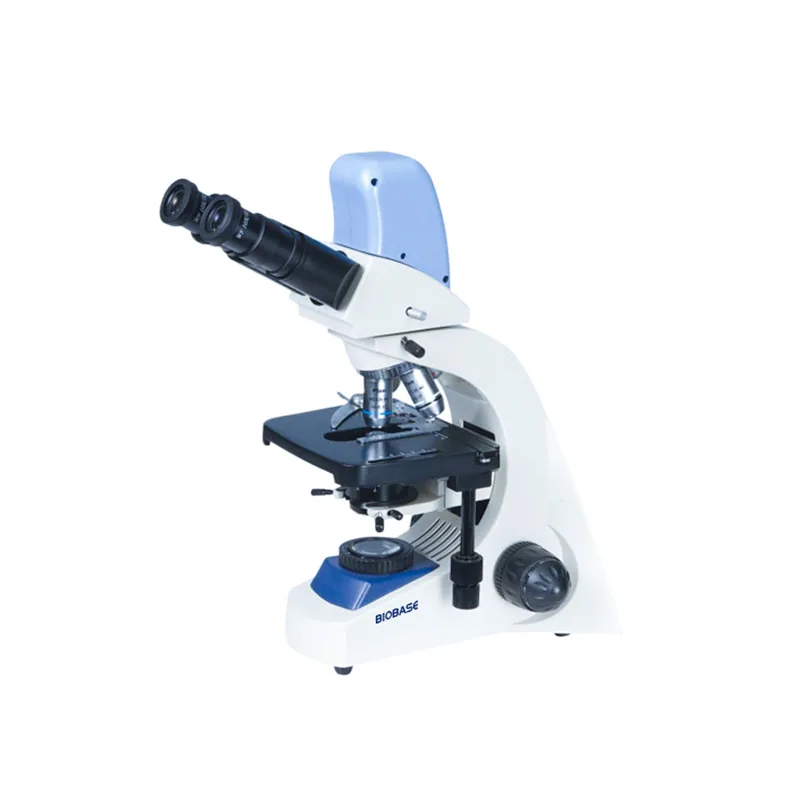

BIOBASE Digital Biological Microscope DM-18NS is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: DM-18NS. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DM-18NS |
|---|---|
| View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm |
| Eyepiece | WF10X/22mm |
| Infinite Plan Achromatic Objective | 4X, 10X, 40X(S), 100X(S, Oil) |
| Focusing | Coaxial Coarse＆Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
| Stage | Double Layers Mechanical Stage 180*150mm, Moving Range 75*50mm |
| Condenser | Abbe NA1.25 centerable condenser with Iris Diaphragm＆Filter |
| Illumination | Halogen lamp 6V/20W, Kohler illumination, brightness adjustable |
| Filter | Blue, yellow, green |
| Imaging System | 3M CMOS |
| Power Supply | AC85~240V, 50/60Hz |
| Package Size | 380*300*580mm |
| Gross Weight | 8.4kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
