Brand: BIOBASE | Category: Scientific & Laboratory Equipment

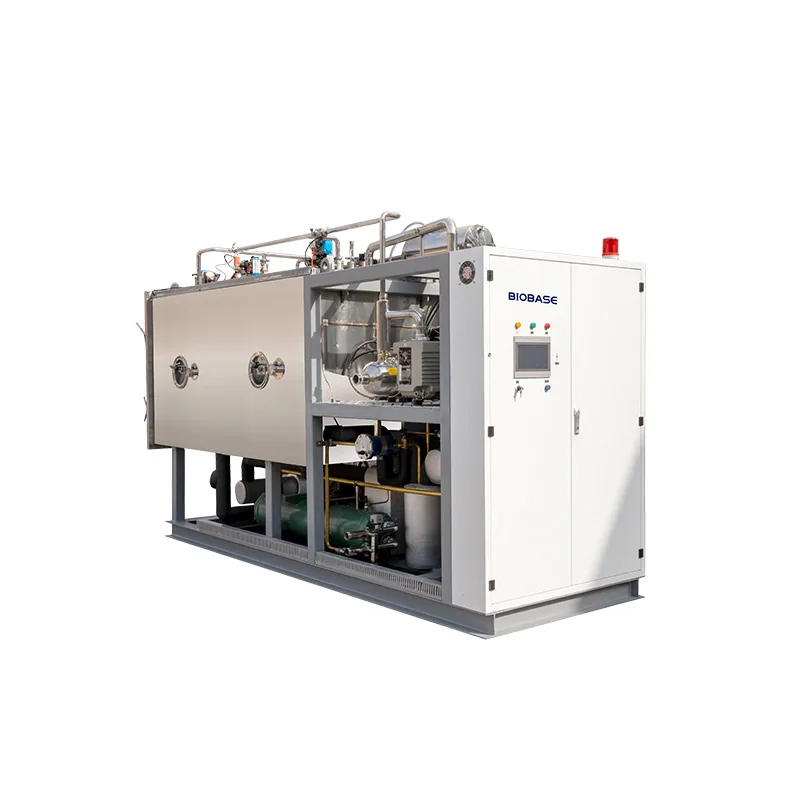

BIOBASE Pharmaceutical Freeze Dryer is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-PFD5MS (Standard), BK-PFD5MT (Stoppering), BK-PFD10MS (Standard), BK-PFD10MT (Stoppering), BK-PFD20MS (Standard), BK-PFD20MT (Stoppering). Compare the remaining models in the specification tables. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-PFD5MS (Standard) | BK-PFD5MT (Stoppering) | BK-PFD10MS (Standard) | BK-PFD10MT (Stoppering) | BK-PFD10MT (Stoppering) | BK-PFD20MS (Standard) |
|---|---|---|---|---|---|---|
| Freeze Drying Area(m2) | 5.25 | 5.25 | 10.5 | 10.5 | 20.2 | 20.2 |
| Vacuum Level(Pa) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Cold Trap Temperature(℃) | -75 | -75 | -75 | -75 | -75 | -75 |
| Maximum ice capacity(kg/B) | ＞100 | ＞100 | ＞200 | ＞200 | ＞400 | ＞400 |
| Shelf Temperature Range(℃) | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 |
| Shelf Size(W*D*H) (mm) | 750*1000*20 | 750*1000*20 | 990*1520*20 | 990*1520*20 | 1220*1520*20 | 1220*1520*20 |
| Number of Shelf Layers(pcs) | 7+1 | 7+1 | 7+1 | 7+1 | 7+1 | 7+1 |
| Stoppering Mode | / | automatic | / | automatic | / | / |
| Total Qty. Of Vial (φ16mm（2ml)） | 22540 | 22540 | 45360 | 45360 | 84942 | 84942 |
| Dimensions(mm) | 4000*1360*2800 | 4000*1360*2800 | 5500*1670*2800 | 5500*1670*2800 | 6500*1980*2800 | 6500*1980*2800 |
| Power Supply | AC380V 50Hz | AC380V 50Hz | AC380V 50Hz | AC380V 50Hz | AC380V 50Hz | AC380V 50Hz |
| Overall Power | 24kw | 24kw | 46kw | 46kw | 85kw | 85kw |
| Model | BK-PFD20MT (Stoppering) | BK-PFD30MS (Standard) | BK-PFD30MT (Stoppering) | BK-PFD40MS (Standard) | BK-PFD40MT (Stoppering) |
|---|---|---|---|---|---|
| Freeze Drying Area(m2) | 20.2 | 30 | 30 | 41 | 41 |
| Vacuum Level(Pa) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Cold Trap Temperature(℃) | -75 | -75 | -75 | -75 | -75 |
| Maximum ice capacity(kg/B) | ＞400 | ＞600 | ＞600 | ＞800 | ＞800 |
| Shelf Temperature Range(℃) | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 |
| Shelf Size(W*D*H) (mm) | 1220*1520*20 | 1220*1520*20 | 1220*1520*20 | 1520*1800*20 | 1520*1800*20 |
| Number of Shelf Layers(pcs) | 7+1 | 10+1 | 10+1 | 15+1 | 15+1 |
| Stoppering Mode | automatic | / | automatic | / | automatic |
| Total Qty. Of Vial (φ16mm（2ml)） | 84942 | 131967 | 131967 | 179955 | 179955 |
| Dimensions(mm) | 6500*1980*2800 | 7500*2280*2900 | 7500*2280*2900 | 7500*2280*3300 | 7500*2280*3300 |
| Power Supply | AC380V 50Hz | AC380V 50Hz | AC380V 50Hz | AC380V 50Hz | AC380V 50Hz |
| Overall Power | 85kw | 160kw | 160kw | 180kw | 180kw |
Manufacturer catalogue checked 2026-09-28.
