Brand: BIOBASE | Category: Scientific & Laboratory Equipment

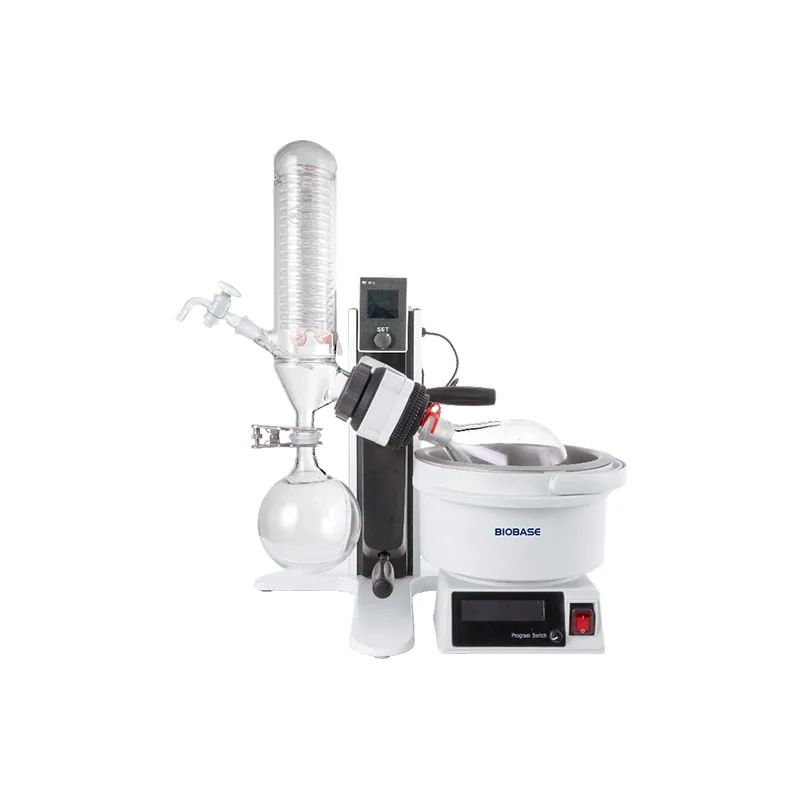

BIOBASE RE-2012 Rotary Evaporator is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: RE-2012. Published details include Temp. Range: RT~99℃; Pot Capacity: 4.6L. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | RE-2012 |
|---|---|
| Rotary Bottle | 1L 29# Standard opening |
| Collecting Bottle | 1L 35# Ball mill opening |
| Condenser | Vertical φ80*370mm |
| Charging Valve | 19#(Standard size) |
| Rotary Speed | 10~310rpm(Can rotate forward and reverse) |
| Vacuum | 399.9Pa(3mmHg) |
| Temp. Range | RT~99℃ |
| Temp. Accuracy | ±1℃ |
| Lifting Stroke | 170mm |
| Rotary Motor Power | 30W |
| Heating Power | 1300W |
| Evaporating Speed | 23ml/min |
| Sealing Part | PTFE+Fluororubber composite sealing ring |
| Condensing Area | 0.15㎡ |
| Pot Capacity | 4.6L |
| Power Supply | Standard: AC220, 50/60Hz; Optional: AC110, 50/60Hz |
| Product Size(W*D*H) | 600*400*(640~810)mm |
| Net Weight | 11.5kg |
| Packing Size(W*D*H) | 730*550*400mm |
| Gross Weight | 16kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
