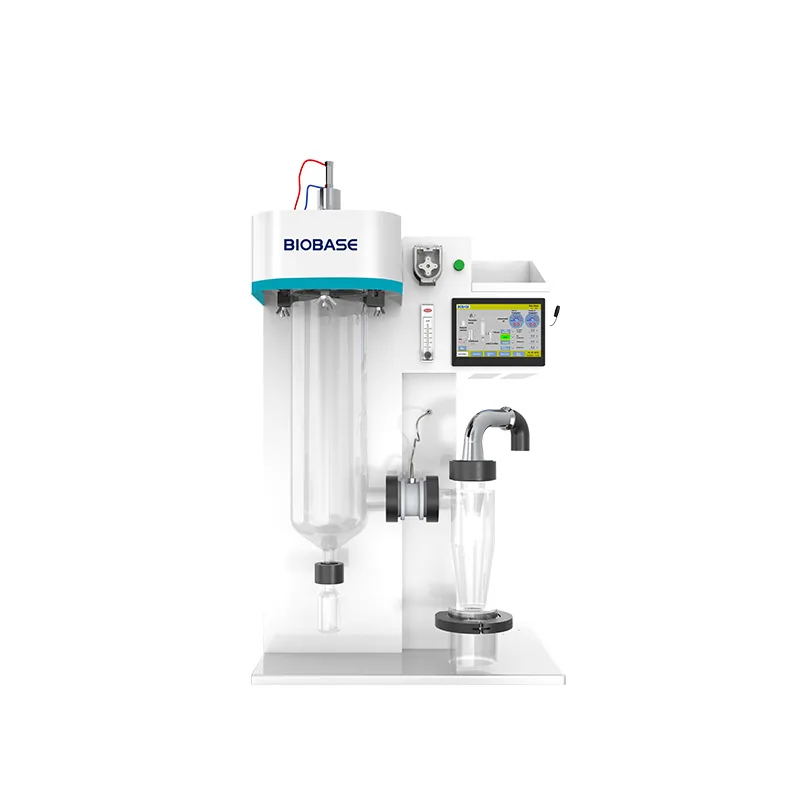

BIOBASE Mini Spray Dryer
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Mini Spray Dryer is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: SD-Mini. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SD-Mini |
|---|---|
| Maximum Water Evaporation | 2000ml/h |
| Inlet Air Temperature | 30~250℃±1℃ |
| Outlet Air Temperature | 30~120℃±1℃ |
| Spray System | 0.7mm diameter dual-fluid nozzle |
| Average Drying Time | 1.0~1.5 seconds |
| Automatic Blocking Device | The frequency of automatic needle penetration is adjustable, 0~60 seconds/time |
| Display | 7-inch color touch screen |
| Quick Release Design | Thermometer, air line, power supply, all use quick-plug design |
| Operation Mode | Two operation modes: manual and automatic, which can be switched between each other |
| Standard Accessories | Air compressor |
| Optional Accessories | Magnetic stirrer, weight device, filter bag, special-purpose toolbox, wireless network control module, iPad Air(Dedicated), laptop(Dedicated), 1.2mm large-bore nozzle, 0.4mm small-bore nozzle |
| Consumption | 5KW |
| Power Supply | AC220V, 50/60Hz(Standard), AC110V, 50/60Hz(Optional, external transformer) |
| External Size(L*W*H) | 620*570*900mm, 510*420*680mm |
| Net Weight | 65kg, 34kg |
| Packing Size(L*W*H) | 750*700*1150mm, 520*520*870mm |
| Gross Weight | 135kg, 40kg |
Manufacturer catalogue checked 2026-09-28.
