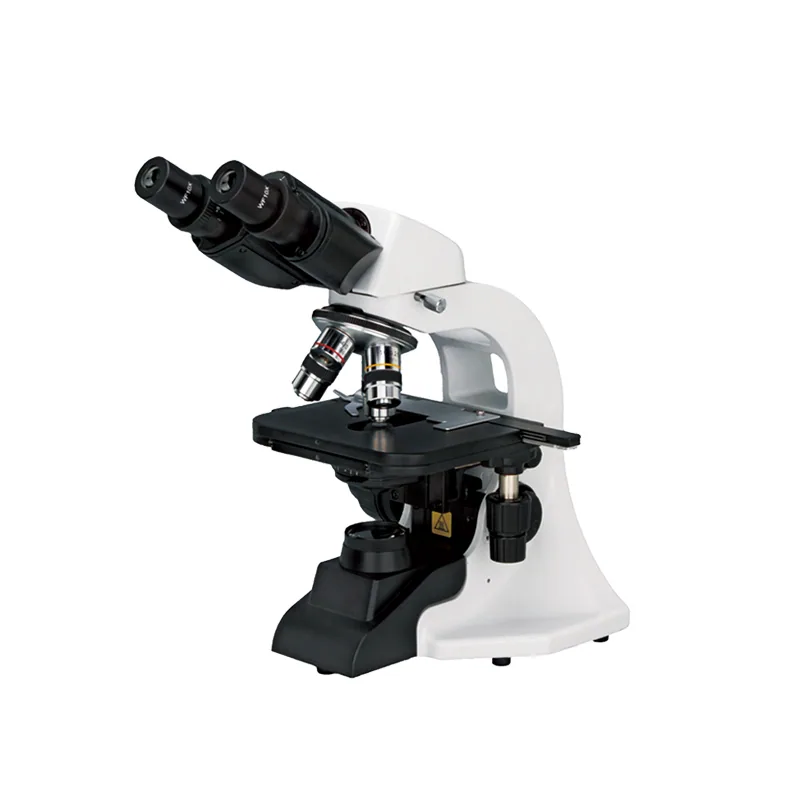

BIOBASE Multi-function Digital Biological Microscope BMM-1000 BMM-2000

Brand: BIOBASE | Category: Scientific & Laboratory Equipment

BIOBASE Multi-function Digital Biological Microscope BMM-1000 BMM-2000 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BMM-1000, BMM-2000. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications

Model	;	BMM-1000	BMM-2000
Optical System	Infinite optical system	/	√
Viewing Head	Siedentopf binocular viewing head, inclined at 30°,; 360° rotatable, Interpupillary 48~75mm	√	√
Viewing Head	Siedentopf trinocular viewing head, inclined at 30°,; 360° rotatable, Interpupillary 48~75mm	●	●
Eyepiece	WF10X/18	√	\
Eyepiece	P16X/11	●	\
Eyepiece	WF10X/20	\	√
Eyepiece	WF15×/16	\	●
Objective	Achromatic objective 4X, 10X, 40X, 100X	√	\
Objective	Semi-plan achromatic objective 4X, 10X, 40X, 100X	●	\
Objective	Infinite achromatic objective 4X, 10X, 40X, 100X	●	\
Objective	Infinite semi-plan achromatic objective 4X, 10X, 40X, 100X	●	\
Objective	Infinite plan achromatic objective 4X, 10X, 40X, 100X	\	√
Nosepiece	Quadruple nosepiece	√	\
Nosepiece	Backward quadruple nosepiece	\	√
Nosepiece	Backward quintuple nosepiece	\	●
Focusing	Coaxial coarse&fine adjustment, fine division 0.002mm, coarse stroke; 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 20mm	√	√
Stage	Double layers mechanical stage: 132*142mm, moving range: 75*40mm	√	\
Stage	Rectangular 230*150mm stage, moving range: 78*54mm,; using low-positioned X/Y coaxial control knob	\	√
Condenser	Abbe condenser NA1.25 with aperture diaphragm	√	√
Illumination	S-LED IIlumination, brightness adjustable	√	√
Illumination	12V/20W Halogen lamp, brightness adjustable	●	●
Illumination	Kohler illumination	\	●
Power Supply	110~220V, 50/60Hz	√	√
Accessories	Photo attachment, video attachment	●	●
Accessories	Dark field condenser	\	\
Accessories	Polarization set, phase contrast kit	\	●
Package Size	323*264*440mm(BMM-1000), 380*260*510mm(BMM-2000)	√	√
Gross Weight	6.5kg(BMM-1000), 10kg(BMM-2000)	√	√

Manufacturer catalogue checked 2026-09-28.
