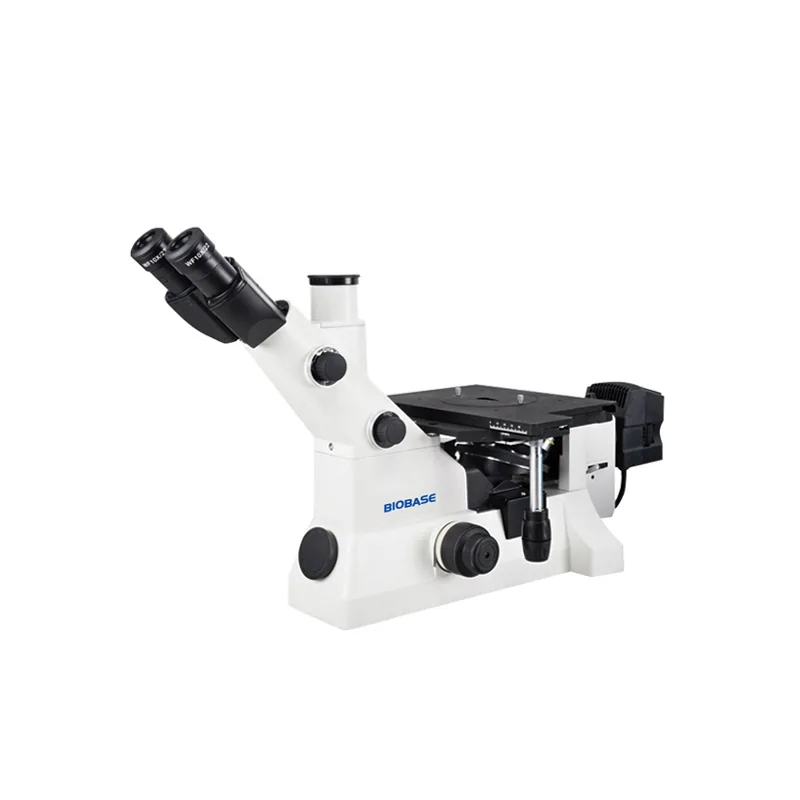

BIOBASE Metallogical Microscope MM-5000
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Metallogical Microscope MM-5000 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: MM-5000. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MM-5000 |
|---|---|
| Optical System / Infinite optical system | √ |
| Extra Wide Field Eyepiece / WF10×/22 | √ |
| Extra Wide Field Eyepiece / WF10×/20 eyepiece with scale of cross hair | √ |
| Extra Wide Field Eyepiece / WF15×/16 | ● |
| Extra Wide Field Eyepiece / WF20×/12 | ● |
| Infinite LWD Plan Achromatic Objective / 5×/0.12/∞/0(BF/DF) LWD 10mm | √ |
| Infinite LWD Plan Achromatic Objective / 10×/0.25/∞/0(BF/DF) LWD 10mm | √ |
| Infinite LWD Plan Achromatic Objective / 20×/0.4/∞/0(BF/DF) LWD 5mm | √ |
| Infinite LWD Plan Achromatic Objective / 50×/0.75/∞/0(BF/DF) LWD 1.3mm | √ |
| Infinite LWD Plan Achromatic Objective / 100×/0.9/∞/0(BF/DF) LWD 0.7mm | √ |
| Viewing Head / Siedentopf binocular viewing head, Inclined at 30°, Interpupillary 48~75mm | √ |
| Kohler Incident Light / 12V/50W halogen light, center and brightness adjustable | √ |
| Kohler Incident Light / Polarizer and analyzer | √ |
| Kohler Incident Light / DIC | ● |
| Kohler Incident Light / Built-in green, blue, yellow, gray and ground glass | √ |
| Focusing / Coaxial coarse and fine adjustment, fine division 2μm | √ |
| Nosepiece / Backward quintuple nosepiece | √ |
| Stage / Double layer mechanical stage 226*178mm, Moving range 40*40mm | √ |
| Stage / Stage Φ20, Φ30, teardrop | √ |
| Accessories / Photo/Video attachment | ● |
| Accessories / Micrometer scale 0.01mm | √ |
| Power Supply / AC100~240V, 50/60Hz | √ |
| Package Size(W*D*H) / 715*335*520mm | √ |
| Gross Weight / 17kg | √ |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
