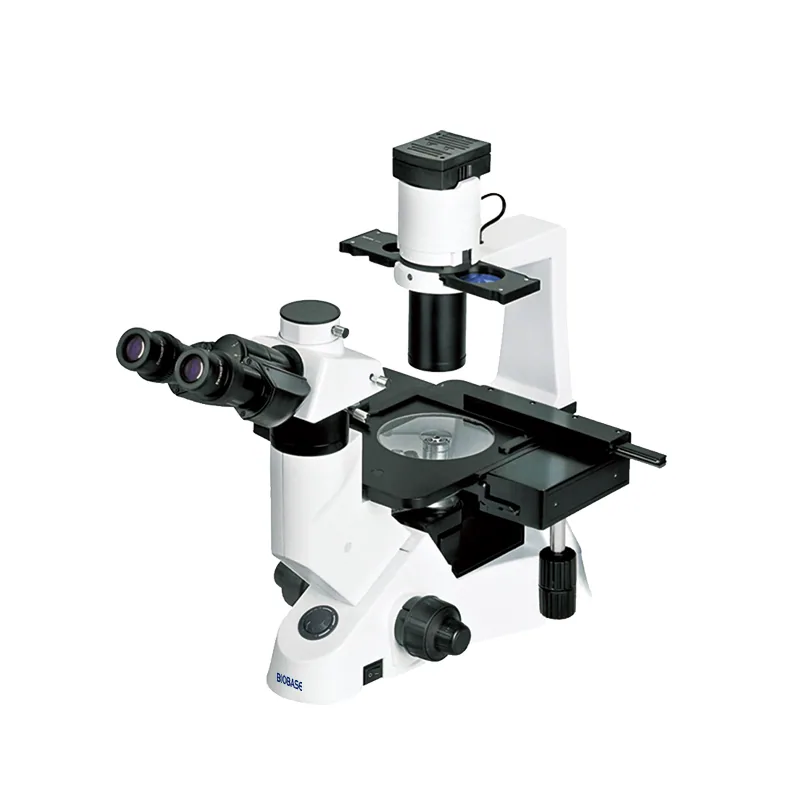

BIOBASE Inverted Biological Microscope BMI-100
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Inverted Biological Microscope BMI-100 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BMI-100. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BMI-100 |
|---|---|
| Optical System / Infinite Optical System | √ |
| Viewing Head / Trinocular Head Inclined at 30°, Interpupillary Distance 48~75mm | √ |
| Eyepiece / High-point, Extra Wide Field Eyepiece EW10X/22 | √ |
| Objective / LWD Infinite Plan Objective / 4X/0.1, WD 17.3mm | √ |
| Objective / LWD Infinite Plan Objective / 10X/0.25, WD 10mm | ● |
| Objective / LWD Infinite Plan Objective / 20X/0.4, WD 5.1mm | ● |
| Objective / LWD Infinite Plan Objective / 40X/0.6, WD 2.1mm | √ |
| Objective / Infinite Plan Phase Objective / PH10X/0.25, WD 10 mm | √ |
| Objective / Infinite Plan Phase Objective / PH20X/0.4, WD 5.1mm | √ |
| Objective / Infinite Plan Phase Objective / PH40X/0.65, WD 2.1mm | ● |
| Nosepiece / Quintuple Nosepiece | √ |
| Condenser / ELWD Condenser NA 0.3, LWD 72mm(Without Condenser 150mm) | √ |
| Centering / Centering Telescope(Φ30MM) | ● |
| Phase Annulus / 10X~20X, Phase Annulus Plate(Fixed) | √ |
| Phase Annulus / 10X~20X、40X Phase Annulus Plate(Adjustable) | ● |
| Stage / Plain Stage 160X250mm | √ |
| Stage / Glass Insert | √ |
| Stage / Attachable Mechanical Stage, X-Y Coaxial Control，Moving Rang120X78mm | ● |
| Stage / Auxiliary Stages70X180mm | √ |
| Stage / Terasaki Holder | ● |
| Stage / Φ35mm Petri Dish Holder | ● |
| Stage / Φ54mm Slide Glass Holder | ● |
| Stage / Φ90mm Petri Dish Holder | ● |
| Focusing / Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range up 8mm, down 3mm | √ |
| Illumination / Halogen Lamp 6V/30W | √ |
| Illumination / LED | ● |
| Filter / Blue、Green and Ground Glass , Diameter 45mm | √ |
| Power Supply / AC110~220V, 50/60Hz | √ |
| Accessories / Inverted flurescent attahement FL-100, Photo Attachment, Video Adapter with C Mount | ● |
| Package Size / 468*397*665mm | √ |
| Gross Weight / 15.5kg | √ |
Manufacturer catalogue checked 2026-09-28.
