Brand: BIOBASE | Category: Scientific & Laboratory Equipment

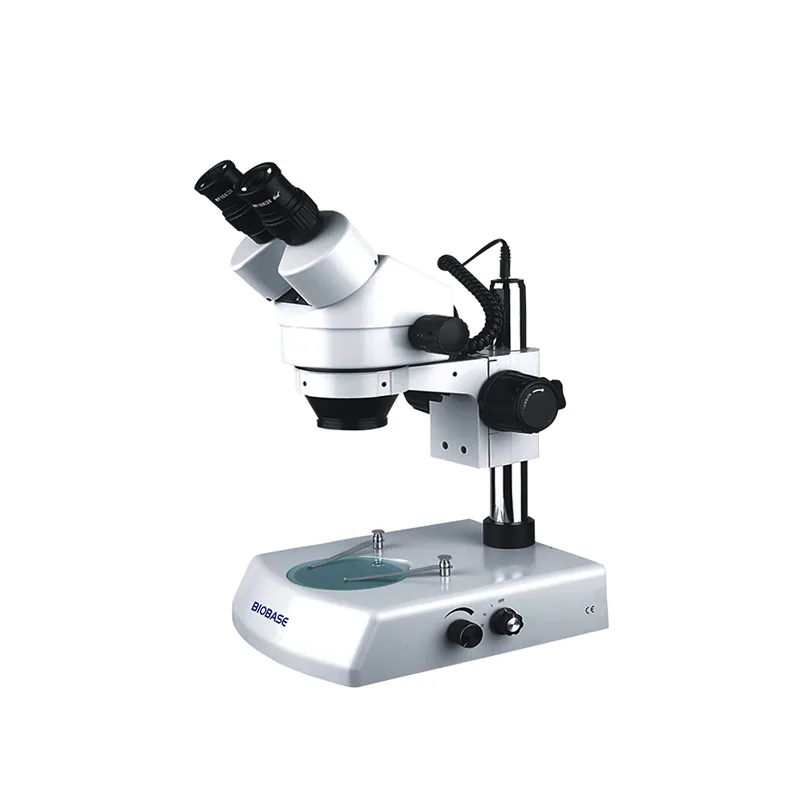

BIOBASE Stereo Zoom Microscope SZM-45 SZM-45T is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: SZM-45, SZM-45T, ST-20, ST-40, ST-60. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | Specification | SZM-45 | SZM-45T |
|---|---|---|---|
| Observation Head | Binocular observation head tilted 45 ° | √ | ; |
| Observation Head | Trinocular body tilted 45° | ; | √ |
| Observation Head | Digital stereoscope body 45° tilt | ; | ; |
| Eyepiece | High point wide field of view adjustable eyepiece WF10X | √ | √ |
| Zoom Objective | 0.7X~4.5X | √ | √ |
| Zoom Ratio | 6.4:1 | √ | √ |
| Working Distance | 100mm | √ | √ |
| Focusing Bracket | Focusing frame adjustment knob | √ | √ |
| Interpupillary Distance | 55~75mm | √ | √ |
| Uplighting | LED lights | √ | √ |
| Downlighting | LED lights | √ | √ |
| Power Supply | AC100~240V, 50/60Hz | √ | √ |
| Package | Foam carton | √ | √ |
| Packing Size(W*D*H) | mm | 500*260*370 | 500*260*370 |
| Gross Weight | kg | 8 | 8 |
| Model | ST-20 | ST-40 | ST-60 | ST-60 |
|---|---|---|---|---|
| Lighting | Natural light binocular | Transmissive illuminator/oblique light binocular | Ring light binocular | Ring light binocular |
| Observation Head&Main Body | Straight head | Tilt observation, rotatable body | Tilt viewing body can be rotated 360° | Tilt viewing body can be rotated 360° |
| Objective Lens | 2X | 2X&4X, rotate 90° | 2X&4X, 360° rotation | 2X&4X, 360° rotation |
| Working Distance | 80mm | 57mm | 100mm | 100mm |
| Eyepiece | WF10X | WF10X | WF10X | WF10X |
| Power Supply | / | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Packing Size(W*D*H) | 300*200*150mm | 360*170*290mm | 400*250*360mm | 400*250*360mm |
| Gross Weight | 3kg | 6kg | 8kg | 8kg |
Manufacturer catalogue checked 2026-09-28.
