Brand: BIOBASE | Category: Scientific & Laboratory Equipment

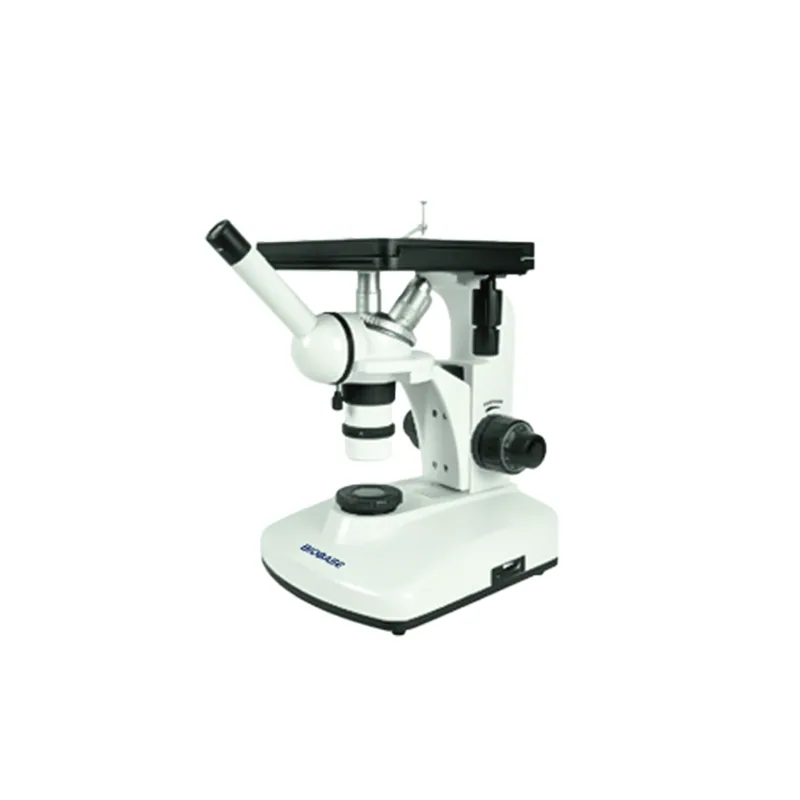

BIOBASE Metallurgical Microscope XJD-100 XJD-200 XDS-1 4XC is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: XJD-100, XJD-200, XDS-1, 4XC. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| ; | Specification | Model | Model | Model | Model |
|---|---|---|---|---|---|
| ; | Specification | XJD-100 | XJD-200 | XDS-1 | 4XC |
| Observation Head | Monocular observation head tilted 45° | √ | ; | ; | ; |
| Observation Head | Articulated binocular observation head tilted 45° | ; | √ | ; | ; |
| Observation Head | Translational sliding trinocular observation head 45° tilt | ; | ; | √ | ; |
| Observation Head | Articulated trinocular viewing head tilted 30 ° | ; | ; | ; | √ |
| Nosepiece | Four-aperture nosepiece | √ | √ | √ | √ |
| Eyepiece | WF10X | √ | √ | ; | ; |
| Eyepiece | WF10X18mm | ; | ; | √ | √ |
| Objective Lens | Achromatic objective lens: 10X, 100X LWD plan achromatic objective: 40X | √ | √ | ; | ; |
| Objective Lens | Achromatic objective lens 4X, 10X, 40X, 100X | ; | ; | √ | ; |
| Objective Lens | LWD plan achromatic objectives 10X, 20X, 40X, Achromatic objective lens 100X | ; | ; | ; | √ |
| Stage | Double-layer mechanical platform 180*150mm moving range 15*15mm | ; | ; | ; | √ |
| Stage | Double-layer mechanical platform 140*135mm moving range 70*50mm | ; | ; | √ | ; |
| Stage | Double-layer mechanical stage 175*135mm | √ | √ | ; | ; |
| Focusing | Coaxial coarse and fine focusing, using rack and pinion mechanism, fine focusing value 0.002mm | √ | √ | √ | √ |
| Illumination | Built-in lighting, halogen lamp 6V/20W | √ | √ | ; | √ |
| Illumination | LED lighting | ; | ; | √ | ; |
| Filter | Blue, green, yellow | √ | √ | √ | √ |
| Polarized Light | ; | ; | ; | √ | ; |
| Power Supply | AC100~240V, 50/60Hz | √ | √ | √ | √ |
| Packing Size | Packing Size | 420*350*520mm | 420*350*520mm | 330*280*440mm; 370*260*470mm | 400*300*450mm |
| Gross Weight | Gross Weight | 10kg | 10kg | 6.5kg; 5kg | 11kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
