Brand: BIOBASE | Category: Scientific & Laboratory Equipment

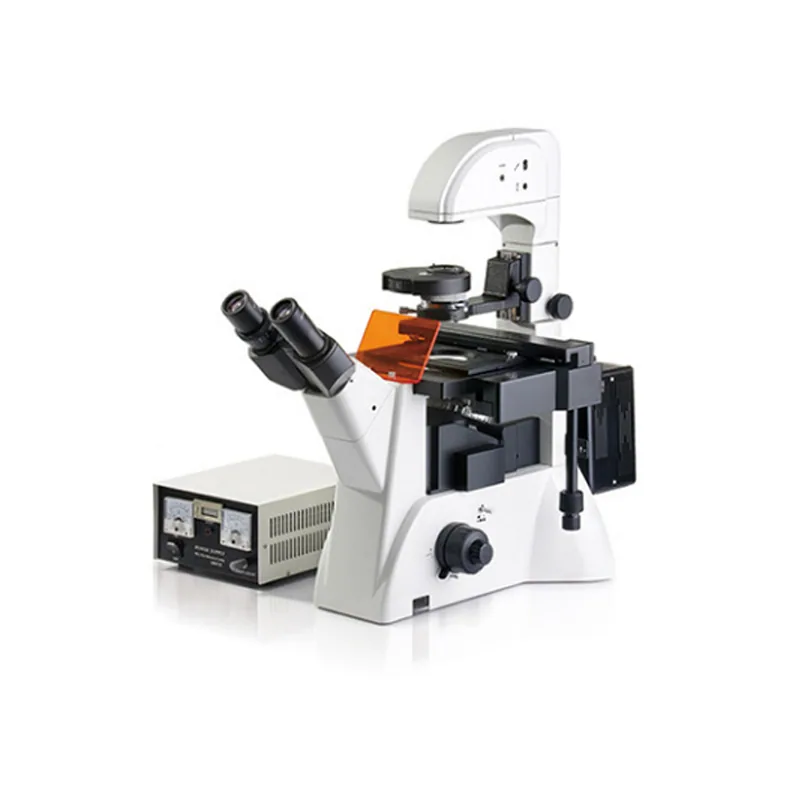

BIOBASE Inverted Fluorescence Microscope(Customized) is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BBM-38XIID. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BBM-38XIID |
|---|---|
| Drawtube | Articulated drawtube, inclined at 45° |
| Total Magnification | 100X~400X(Eyepiece x Objective) |
| Mechanical Tube Length | Infinite distance |
| Plan Wide Field Eyepiece | WF10X/Φ22 |
| Plane Infinite Achromatic Objective | ∞10X/0.25 WD4.3mm, ∞20X/0.40 WD8.0mm, ∞40X(S)0.60 WD3.5mm |
| Plane Infinite Phase Contrast | ∞10X0.25 WD4.3mm, ∞20X0.40 WD8.0mm, ∞40X(S)0.60 WD3.5mm |
| Interpupil Distance | 53~75mm |
| Nosepiece | Fivetuple Nosepiece |
| Double Layers Mechanical Stage | Stage Size: 260*208mm, Moving Range: 77*134.5mm |
| Petri Dish Plates | Petri Dish Plate 1: 86mm×129.5mm; Petri Dish Plate 2: 34mm×77.5mm; Petri Dish Plate 3: 57mm×82mm |
| Condenser | Rotatable-phase contrast condenser, working distance 55mm |
| Exciting | UV: EX330-400nm; V: EX395-415nm; B: EX420-485nm; G: EX460-550nm |
| Light Source-Epi-illumination | 230V(110V)/100W mercury lamp, power supply box |
| Light Source-Transmission Illuminate | Halogen bulb 6V/30W, Adjustable brightness |
| Computer Image-forming System | Fluorescent CMOS camera, adapter |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
