Brand: BIOBASE | Category: Scientific & Laboratory Equipment

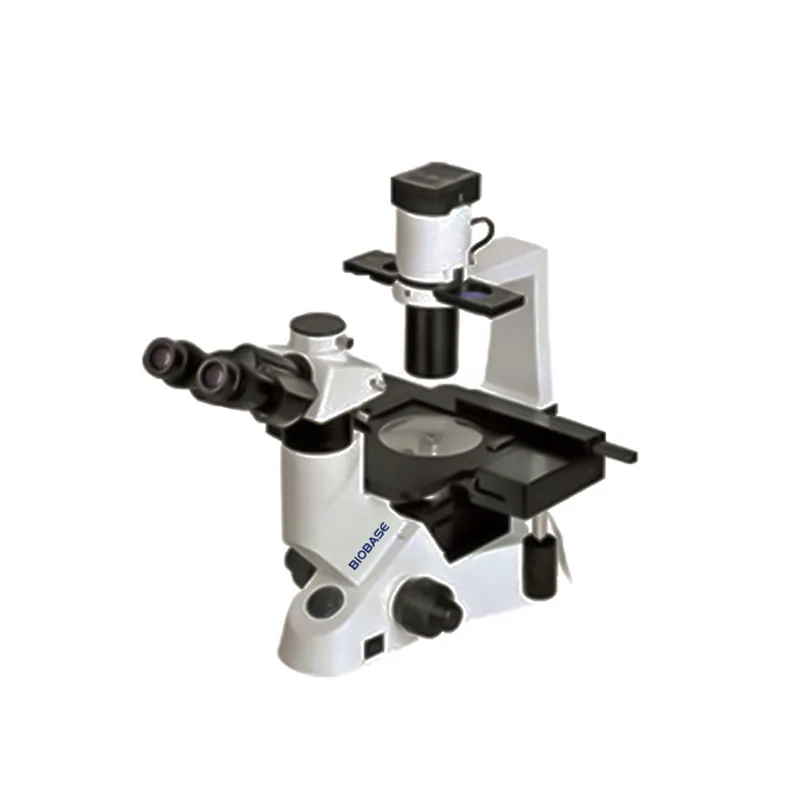

BIOBASE Inverted Microscope XDS-403 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: XDS-403, NIB-100. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | Specifications | XDS-403 | NIB-100 |
|---|---|---|---|
| Viewing Head | Trinocular viewing head, inclined at 45° | √ | ; |
| Viewing Head | Trinocular viewing head, inclined at 30° | ; | √ |
| Eyepiece | WF10X/20mm | √ | ; |
| Eyepiece | EW10X/22mm | ; | √ |
| Objective | LWD Plan objective 4X,10X,20X, 40X | √ | ; |
| Objective | LWD Infinite plan objective 4X,10X,20X, 40X Infinite plan phase objective 10X,20X, 40X | ; | √ |
| Stage | Double layers mechanical stage, stage size:242*172mm, central stage:(p110mm, moving range: 75*50mm | √ | ; |
| Stage | Plain stage: 160*250mm, glass insert, attachable mechanical stage, X-Y coaxial control, moving range: 120*78mm Auxiliary stage 70*180mm, Terasaki holder, Petri dish holder(p35mm/(p54mm/(p90mm, slide glass holder(p54mm | ; | √ |
| Condenser | NA 0.3 Abbe condenser W.D. 75mm | √ | √ |
| Condenser | ELWD Condenser NA 0.3, LWD 72mm (without condenser 150mm) | √ | √ |
| Interpupillary Distance | 50-75mm/48-75mm | √ | √ |
| Focusing | Coaxial coarse& fine adjustment, fine division 0.002mm | √ | √ |
| Phase Contrast Sliding Plate | Center of phase contrast ring plate adjustable | √ | √ |
| Phase Contrast Sliding Plate | 10X, 20X, 40X phase annulus plate (fixed) 10X, 20X, 40X phase annulus plate (adjustable) | ; | √ |
| Center Telescope | Center telescope | √ | ; |
| Center Telescope | Center telescope((p30mm) | ; | √ |
| Illumination | Halogen lamp 12V/30W, adjustable brightness | √ | ; |
| Illumination | LED lamp 3W/Halogen lamp 6V/30W | ; | √ |
| Filter | Blue, green, yellow and frosted glass | √ | ; |
| Filter | Blue, green and frosted glass | ; | √ |
| Optional Accessories | B, G wave band, 220V(110V)/100W Fluorescent Mercury lamp; photograph connecting tube, adapter with MD or PK mount, 4X photograph eyepiece | √ | ; |
| Optional Accessories | Inverted fluorescent attachment, photo attachment, video adapter with C mount | ; | √ |
| Power Supply | AC 110/220V±10%,50/60Hz | √ | √ |
| Package Size | 350*250*508mm(XDS-403), 468*397*665mm(NIB・100) | √ | √ |
| Gross Weight | 15kg | √ | √ |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
