Brand: BIOBASE | Category: Scientific & Laboratory Equipment

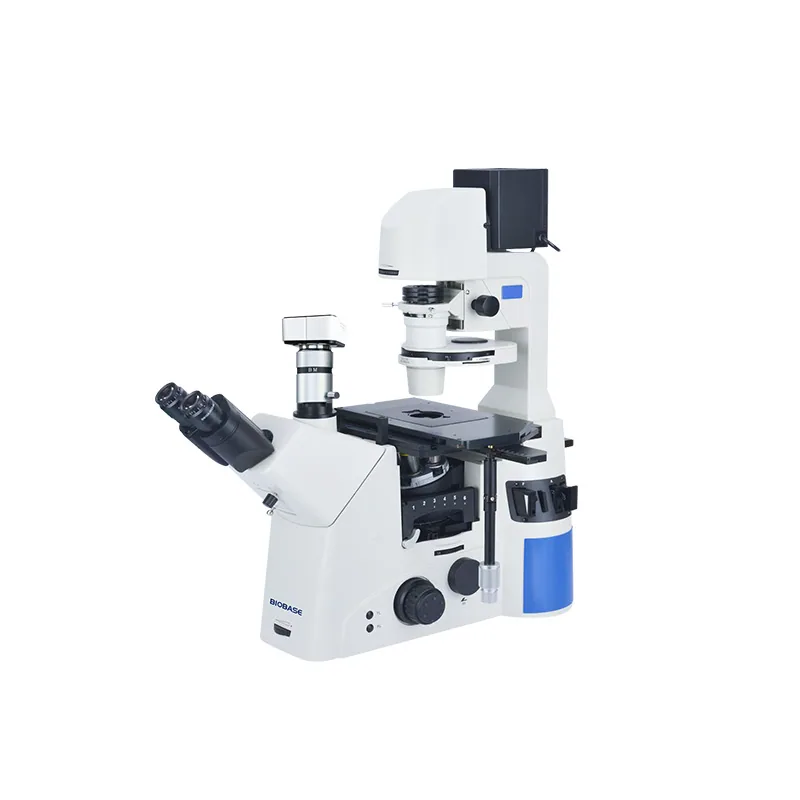

BIOBASE Inverted Biological Microscope BMI-39XD is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BMI-39XD. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BMI-39XD |
|---|---|
| Optical System | Infinite optical system |
| View Head | Compensation free trinocular head, Inclined at 45°, 360° rotatable, interpupillary 47~78mm |
| Eyepiece | WF10X/22mm |
| Infinite Plan Phase Achromatic Objective | 4X N.A=0.30 WD=7.40mm |
| Infinite Plan Phase Achromatic Objective | 20X N.A=0.45 WD=7.50~8.80mm |
| Infinite Plan Phase Achromatic Objective | 40X N.A=0.60 WD=3.00~4.40mm |
| Focusing | Coaxial Coarse&Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
| Stage | Three Layers Mechanical Stage 340*230mm, Moving Range 130*85mm |
| Condenser | ELWD condenser NA0.3, LWD 26mm |
| Illumination | Transmission illumination: Halogen lamp, 12V/100W, Kohler illumination Epi-illumination: 100w fluorescent mercury lamp |
| Filter | Blue, yellow, green |
| Imaging System | 2000W CMOS Camera, MCL-Z adapter |
| Power Supply | AC85~240V, 50/60Hz |
| Package Size | 820*880*570mm |
| Gross Weight | 32kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
