Brand: BIOBASE | Category: Scientific & Laboratory Equipment

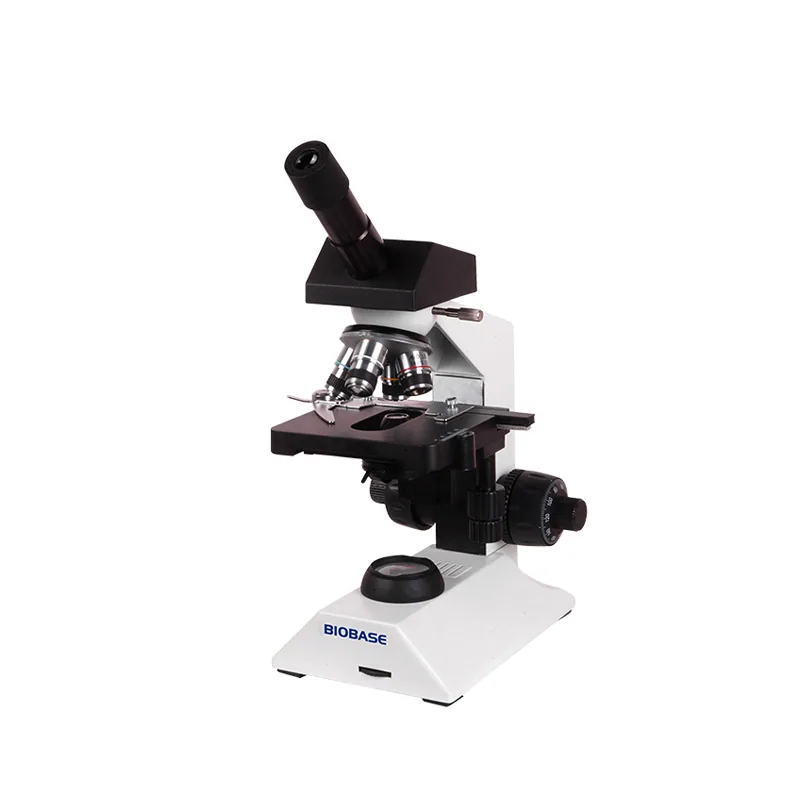

BIOBASE Laboratory Biological Microscope BX-Series is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: Observation Head, Nosepiece, Eyepiece, Objective Lens, Stage, Condenser. Compare the remaining models in the specification tables. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | Specification | Model | Model | Model |
|---|---|---|---|---|
| Model | Specification | BX-101A | BX-101B | BX-102A |
| Observation Head | Monocular observation head tilted 45° | √ | ; | ; |
| Observation Head | Monocular observation head | ; | √ | ; |
| Observation Head | 45° tilt sliding binocular observation head | ; | ; | √ |
| Observation Head | 30° tilted uncompensated binocular observation head | ; | ; | ; |
| Observation Head | 45° tilted free sliding trinocular observation head | ; | ; | ; |
| Nosepiece | Multi-roller four-aperture objective lens converter | √ | √ | √ |
| Eyepiece | Wide-angle plane eyepiece: WF10X18mm | √ | √ | √ |
| Objective Lens | 185 achromatic 4X, 10X, 40X(spring), 100X(spring, oil) | √ | √ | √ |
| Stage | Double-layer mechanical platform 115*125mm, moving range 30*50mm | √ | √ | √ |
| Condenser | Abbe NA1.25 condenser with aperture Variable aperture and filter | √ | √ | √ |
| Illumination | Built-in lighting | √ | √ | √ |
| Power Supply | AC100~240V, 50/60Hz | √ | √ | √ |
| Package | Foam carton | √ | √ | √ |
| Packing Size | 250*360*460mm | √ | √ | √ |
| Gross Weight | 6kg | √ | √ | √ |
Manufacturer catalogue checked 2026-09-28.
