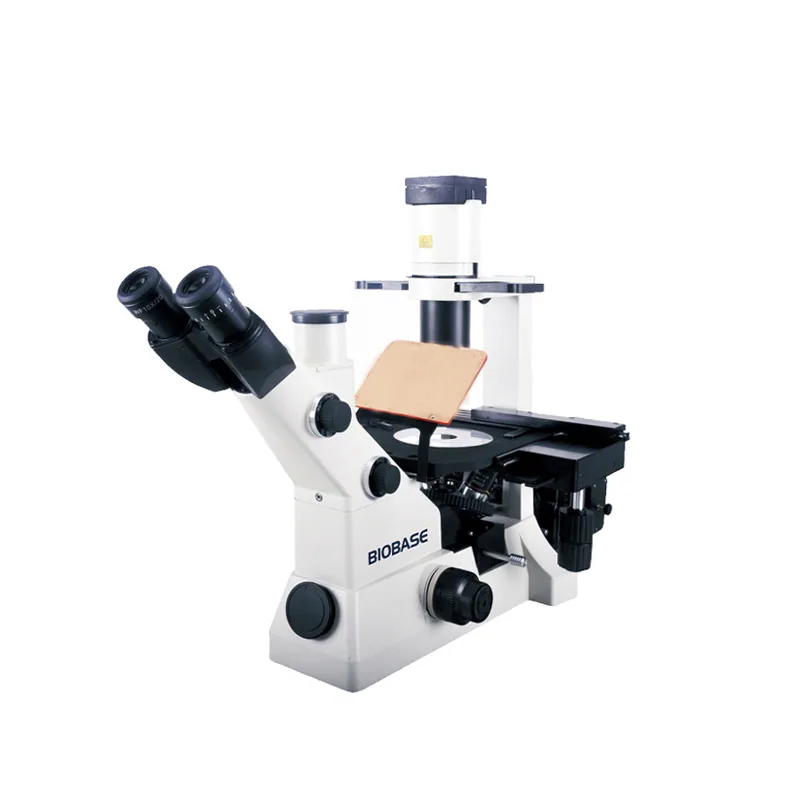

BIOBASE Inverted Biological Microscope BMI-202

Brand: BIOBASE | Category: Scientific & Laboratory Equipment

BIOBASE Inverted Biological Microscope BMI-202 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BMI-202. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications

Model	BMI-202	BMI-202	BMI-202
Optical System	Infinite optical system	Infinite optical system	√
Viewing Head	Seidentopf trinocular viewing head, Inclined at 45°, 360° rotatable, Interpupillary 48~75mm	Seidentopf trinocular viewing head, Inclined at 45°, 360° rotatable, Interpupillary 48~75mm	√
Eyepiece	Wide field eyepiece WF10X/22, eyepiece tube diameter 30mm	Wide field eyepiece WF10X/22, eyepiece tube diameter 30mm	√
Eyepiece	Wide field eyepiece WF15X/16	Wide field eyepiece WF15X/16	●
Eyepiece	Wide field eyepiece WF20X/12	Wide field eyepiece WF20X/12	●
Objective	LWD infinite plan achromatic objective 4X/0.10 WD=22	LWD infinite plan achromatic objective 4X/0.10 WD=22	√
Objective	LWD infinite plan achromatic phase objective	10X/0.25 WD=6	√
Objective	LWD infinite plan achromatic phase objective	20X/0.4 WD=3.1	√
Objective	LWD infinite plan achromatic phase objective	40X/0.55 WD=2.2	√
Objective	High-level phase contrast objective	10X/0.25 WD=6	●
Objective	High-level phase contrast objective	20X/0.4 WD=3.1	●
Objective	High-level phase contrast objective	40X/0.55 WD=2.2	●
Objective	Lamp house adjustment objective	Lamp house adjustment objective	√
Nosepiece	Backward quintuple nosepiece	Backward quintuple nosepiece	√
Condenser	ELWD condenser NA0.3, LWD72mm(without condenser 150mm)	ELWD condenser NA0.3, LWD72mm(without condenser 150mm)	√
Centering Telescope	Centering telescope(φ30mm)	Centering telescope(φ30mm)	√
Phase Annulus	10X, 20X, 40X phase annulus plate(adjustable)	10X, 20X, 40X phase annulus plate(adjustable)	√
Stage	Plain stage 230X170	Plain stage 230X170	√
Stage	Glasse insert	Glasse insert	√
Stage	Attachable mechanical stage, X, Y coaxial control, moving rang 80X120mm	Attachable mechanical stage, X, Y coaxial control, moving rang 80X120mm	√
Stage	Auxiliary stage	Auxiliary stage	√
Stage	Terasaki holder	Terasaki holder	√ √
Stage	Petri dish holder φ38	Petri dish holder φ38	√ √
Stage	Petri dish holder φ54	Petri dish holder φ54	√
Focusing System	Coaxial coarse and fine adjustment, fine division 0.002mm, moving range up 4.5mm down 4.5mm	Coaxial coarse and fine adjustment, fine division 0.002mm, moving range up 4.5mm down 4.5mm	√
Illumination	6V, 30W halogen lamp, brightness adjustable	6V, 30W halogen lamp, brightness adjustable	√
Filter	Blue, green and ground glass, diameter 45mm	Blue, green and ground glass, diameter 45mm	√
Power Supply	110~220V, 50/60Hz	110~220V, 50/60Hz	√
Accessories	Photo attachment	Photo attachment	●
Accessories	C Mount 0.4X	C Mount 0.4X	●
Package Size	630*350*620mm	630*350*620mm	√
Gross Weight	15kg	15kg	√

Manufacturer catalogue checked 2026-09-28.
