Brand: BIOBASE | Category: Scientific & Laboratory Equipment

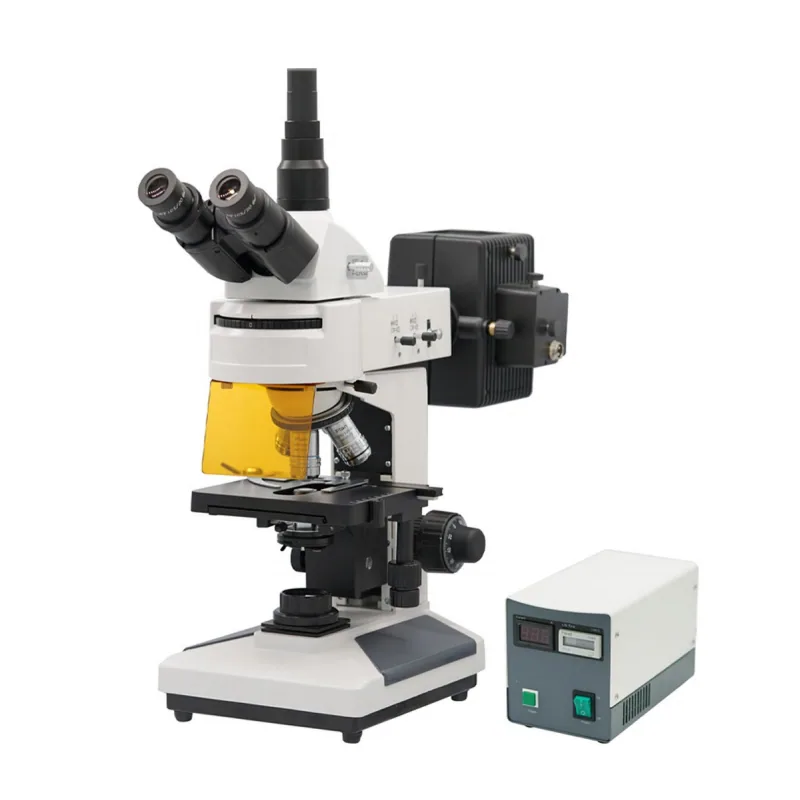

BIOBASE Fluorescence Biological Microscope(customize) is listed in VVON's microscopy & imaging systems range for Bangladesh. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Type | Magnification | Field Diameter |
|---|---|---|
| Wide Plan Field Eyepiece | 10X | Φ22mm |
| Type | Magnification | Numerical Aperture(NA) | Working Distance |
|---|---|---|---|
| Infinite | 4X | 0.1 | 37.5mm |
| Apochromatic | 10X | 0.25 | 7.31mm |
| Fluoresecent | 40X | 0.65 | 0.63mm |
| Objective | 100X | 1.25 | 0.18mm |
| Mechanical Tube Length | Infinite distance system | Infinite distance system | Infinite distance system |
| Total Magnification | 40X~1000X | 40X~1000X | 40X~1000X |
| Nosepiece | Fourtuple nosepiece | Fourtuple nosepiece | Fourtuple nosepiece |
| Stage | Stage Size: 160x140mm Moving Range: 75x50mm | Stage Size: 160x140mm Moving Range: 75x50mm | Stage Size: 160x140mm Moving Range: 75x50mm |
| Focusing Range | 30mm coaxial coarse and fine focus adjustment, fine focusing scale 0.002mm | 30mm coaxial coarse and fine focus adjustment, fine focusing scale 0.002mm | 30mm coaxial coarse and fine focus adjustment, fine focusing scale 0.002mm |
| Condenser | Abbe N.A.1.25 Condenser With Iris Diaphragm | Abbe N.A.1.25 Condenser With Iris Diaphragm | Abbe N.A.1.25 Condenser With Iris Diaphragm |
| Exciting | B, G | B, G | B, G |
| Filter | Blue, Yellow, Green | Blue, Yellow, Green | Blue, Yellow, Green |
| Light Source | Epi-illumination: 220V(110V)/100W mercurylamp, powersupply box Transmission Illuminate: Halogen Bulb 6V/20W | Epi-illumination: 220V(110V)/100W mercurylamp, powersupply box Transmission Illuminate: Halogen Bulb 6V/20W | Epi-illumination: 220V(110V)/100W mercurylamp, powersupply box Transmission Illuminate: Halogen Bulb 6V/20W |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
