Brand: BIOBASE | Category: Scientific & Laboratory Equipment

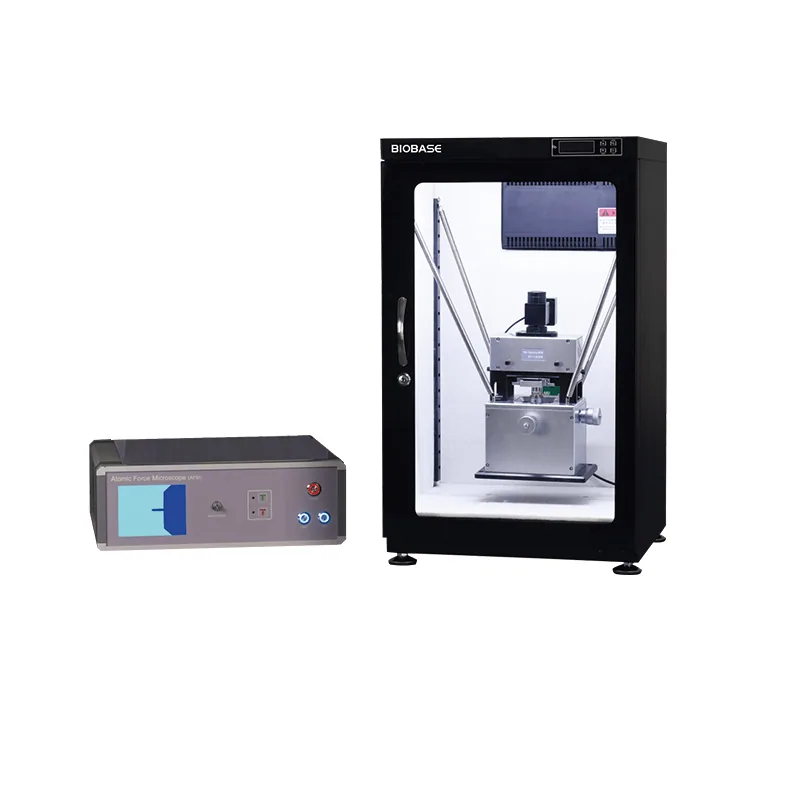

BIOBASE Atomic Force Microscopy is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BK-AFM1000. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-AFM1000 |
|---|---|
| Working Modes | Contact mode and lapping mode Optional modes: Phase, Friction(LFM), Magnetic(MFM), Electrostatic(EFM) |
| Sample Size | Ф≤90mm, H≤20mm |
| Scanners Available | 10*10μm, 20*20μm, 50*50μm, 100*100μm |
| Scanning Resolution | 0.2nm in XY direction, 0.05nm in Z direction |
| Range of Sample Movement | ±6.5mm |
| Step-motor Pulse Width | 10±2ms |
| Image Sampling Points | 512*512 |
| Optical Magnification 4X | Optical resolution 2.5μm |
| Scan Rate 0.6Hz~4.34Hz | Scan angle 0°~360° |
| Scanning Control | 18-bit D/A in XY direction, 16-bit D/A in Z direction |
| Data Sampling | 14-bit A/D, double 16-bit A/D multi-channel synchronous sampling |
| Feedback | DSP digital feedback |
| Feedback Sampling Rate | 64kHz |
| Computer interface | USB 2.0 |
| Operating System | Windows XP/7/8/10 |
| Supply Power | AC220V, 50/60Hz; 110V, 50/60Hz(optional) |
| Package Size | 550*550*1150mm |
| Gross Weight | 65kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
