Brand: BIOBASE | Category: Scientific & Laboratory Equipment

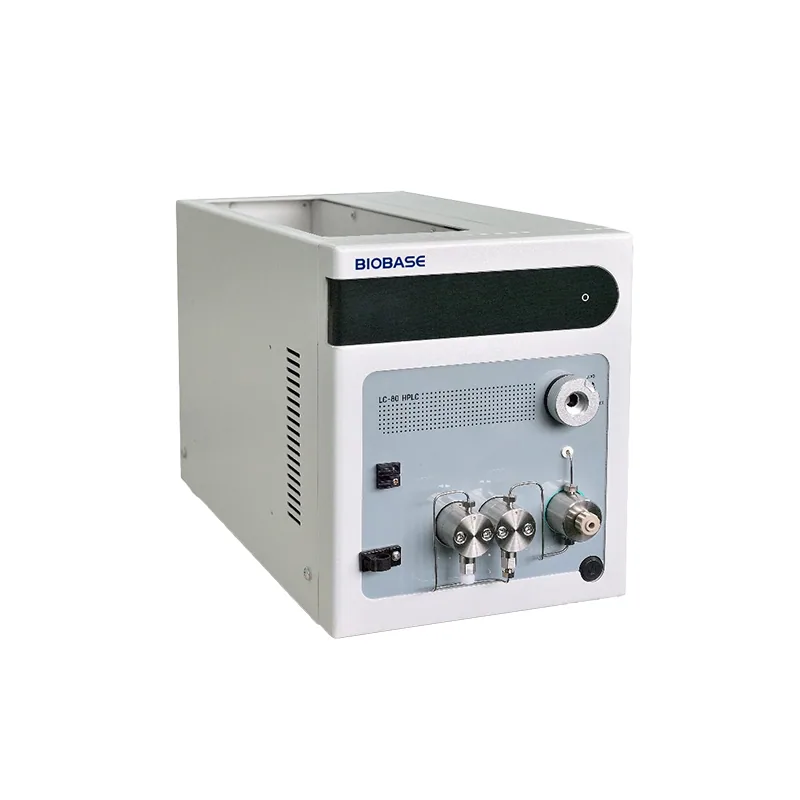

BIOBASE High Performance Liquid Chromatography System BK-80HPLC is listed in VVON's chromatography systems & consumables range for Bangladesh. Published models: BK-80HPLC(Type I) Isocratic Manual System, BK-80HPLC(Type II) Isocratic Manual System. Match the analytical method, detector, column and sample-handling configuration. For a quotation, send the analytes, method, detector, columns, samples per day and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-80HPLC(Type I) Isocratic Manual System | BK-80HPLC(Type II) Isocratic Manual System |
|---|---|---|
| Flow Range | 0.001~5.000ml/min | 0.001~5.000ml/min |
| Flow Stability Error SR | <0.1% | <0.1% |
| Flow Setting Value Error SS | ≤±1% | ≤±1% |
| Maximum Working Pressure | 40MPa | 40MPa |
| Qualitative Repeatability | RSD6≤±0.2%(naphthalene/methanol standard) | RSD6≤±0.2%(naphthalene/methanol standard) |
| Quantitative Repeatability | RSD6≤±0.5%(naphthalene/methanol standard) | RSD6≤±0.5%(naphthalene/methanol standard) |
| Pressure Fluctuation | 0.1MPa | 0.1MPa |
| Spectrum Bandwidth | 8nm | 8nm |
| Wavelength Accuracy | ±1nm | ±1nm |
| Wavelength Precision | Below 0.1nm | Below 0.1nm |
| Noise | ≤0.25×10⁻⁵AU(static)/±1×10⁻⁵AU(dynamic, under given conditions) | ≤0.25×10⁻⁵AU(static)/±1×10⁻⁵AU(dynamic, under given conditions) |
| Drift | ≤0.4×10⁻³AU/h(static)/≤2×10⁻³AU/h(dynamic, under given conditions) | ≤0.4×10⁻³AU/h(static)/≤2×10⁻³AU/h(dynamic, under given conditions) |
| Minimum Detectable Concentration | 5×10⁻⁹g/mL(naphthalene/methanol solution) | 5×10⁻⁹g/mL(naphthalene/methanol solution) |
| Configuration | Main unit(Isocratic+UV detector), injection valve, control software, 150mm C18 column | Main unit(Isocratic+UV detector), injection valve, control software, 250mm C18 column |
| Optional Accessories | Column, column oven | Column, column oven |
| Power Supply | Standard: AC220V, 50/60Hz; Optional: 110V, 50/60Hz | Standard: AC220V, 50/60Hz; Optional: 110V, 50/60Hz |
| External Size(W*D*H) | 220*455*267mm | 220*455*267mm |
| Packing Size(W*D*H) | 450*630*450mm | 450*630*450mm |
| Gross Weight | 20kg | 20kg |
Manufacturer catalogue checked 2026-09-28.
