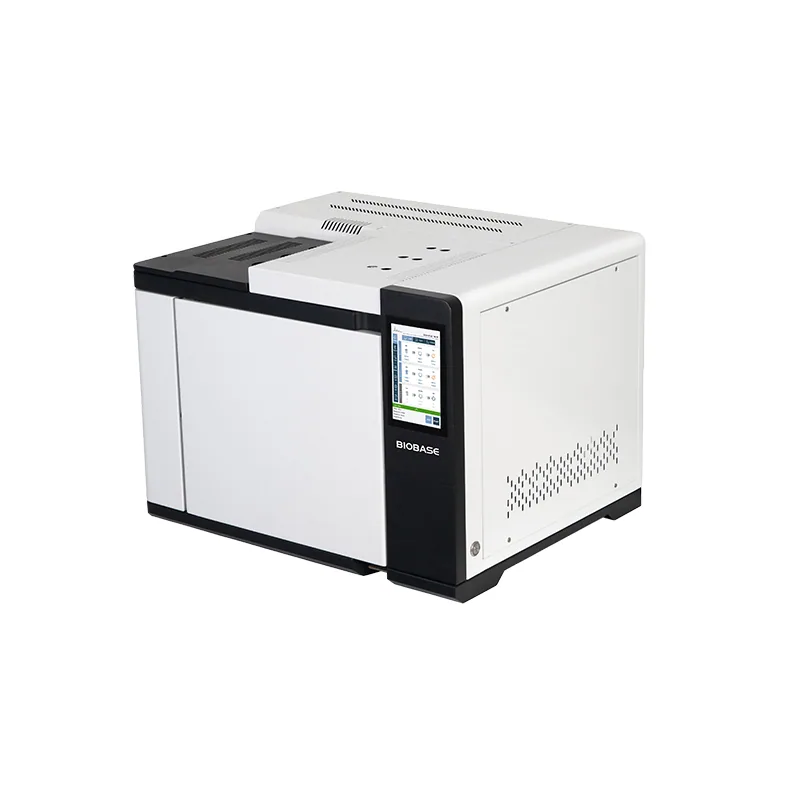

BIOBASE Gas Chromatograph BK-GC7820N
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Gas Chromatograph BK-GC7820N is listed in VVON's chromatography systems & consumables range for Bangladesh. Published models: BK-GC7820N. Match the analytical method, detector, column and sample-handling configuration. For a quotation, send the analytes, method, detector, columns, samples per day and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-GC7820N | BK-GC7820N |
|---|---|---|
| Oven | Temperature Range | RT+2~450℃ |
| Oven | Temperature Control Accuracy | 0.01℃ |
| Oven | Temperature Program | ≥99 levels, 100 platform (expandable) |
| Oven | Maximum Temperature Heating Rate | 250ºC/min |
| Oven | Temperature Control System | An 8-channel independent temperature control system with automatic temperature protection function |
| Selectable Detector Types | Flame Ionization Detector (FID) | Operating temperature: 450℃ |
| Selectable Detector Types | Flame Ionization Detector (FID) | Detection limit ≤ 1.1 pg C/s (n-hexadecane) |
| Selectable Detector Types | Flame Ionization Detector (FID) | Baseline drift (30 min) ≤ 2*10⁻¹³ A |
| Selectable Detector Types | Flame Ionization Detector (FID) | Baseline noise ≤2*10⁻^(14)A |
| Selectable Detector Types | Flame Ionization Detector (FID) | Dynamic linear range ≥10⁷ |
| Selectable Detector Types | Flame Ionization Detector (FID) | Automatic ignition function |
| Selectable Detector Types | Thermal Conductivity Detector (TCD) | Sensitivity≥10,000 mV·mL/mg |
| Selectable Detector Types | Thermal Conductivity Detector (TCD) | Baseline drift (30 min): ≤0.2 mV |
| Selectable Detector Types | Thermal Conductivity Detector (TCD) | Baseline noise: ≤0.05mV |
| Selectable Detector Types | Thermal Conductivity Detector (TCD) | Dynamic linear range: ≥10⁵ |
| Selectable Detector Types | Thermal Conductivity Detector (TCD) | Safety protection: Gas bridging current protection function |
| Selectable Detector Types | Flame Photometric Detector (FPD) | Maximum operating temperature: 450℃ |
| Selectable Detector Types | Flame Photometric Detector (FPD) | Limits of detection: P ≤ 80 fg/s (methyl parathion), S ≤ 8 pg/s (methyl parathion) |
| Selectable Detector Types | Flame Photometric Detector (FPD) | Dynamic linear range: P≥10³; S≥10² |
| Selectable Detector Types | Flame Photometric Detector (FPD) | Equipped with automatic ignition function |
| Selectable Detector Types | Electron Capture Detector (ECD) | Radioactive source: 63Ni |
| Selectable Detector Types | Electron Capture Detector (ECD) | Maximum operating temperature: 400℃ |
| Selectable Detector Types | Electron Capture Detector (ECD) | Limit of detection: ≤1.0*10^(-14) g/mL (γ-666) |
| Selectable Detector Types | Electron Capture Detector (ECD) | Dynamic linear range: ≥10⁴ |
| Selectable Detector Types | Nitrogen-phosphorus Detector (NPD) | Maximum operating temperature: 400℃ |
| Selectable Detector Types | Nitrogen-phosphorus Detector (NPD) | Limit of detection: N: ≤1*10⁻¹² g(N)/s (azobenzene); P: ≤5*10⁻¹³ g(P)/s (malathion) |
| Selectable Detector Types | Nitrogen-phosphorus Detector (NPD) | Dynamic linear range: N≥10³, P≥10³ |
| Selectable Sample Injection Method | It can be used with standard and inert flow path split/splitless capillary injection, septum purge packed column injection, cold column injection, programmable temperature vaporization injection ports, valve injection systems, headspace injection systems, thermal desorption injection systems, etc. | It can be used with standard and inert flow path split/splitless capillary injection, septum purge packed column injection, cold column injection, programmable temperature vaporization injection ports, valve injection systems, headspace injection systems, thermal desorption injection systems, etc. |
| Standard Accessories | FID detector, general chromatography workstation software, capillary sampler, startup toolkit | FID detector, general chromatography workstation software, capillary sampler, startup toolkit |
| Optional Accessories | Sample injection system, TCD, ECD, FPD and NPD detector, audit chromatography workstation software, chromatographic column, nickel catalytic converter, liquid autosampler, headspace sampler | Sample injection system, TCD, ECD, FPD and NPD detector, audit chromatography workstation software, chromatographic column, nickel catalytic converter, liquid autosampler, headspace sampler |
| Power Supply | AC220V, 50/60Hz | AC220V, 50/60Hz |
| Product Size(W*D*H) | 670*580*500mm | 670*580*500mm |
| Net Weight | 60kg | 60kg |
| Packing Size(W*D*H) | 840*720*750mm | 840*720*750mm |
| Gross Weight | 73kg | 73kg |
Manufacturer catalogue checked 2026-09-28.
