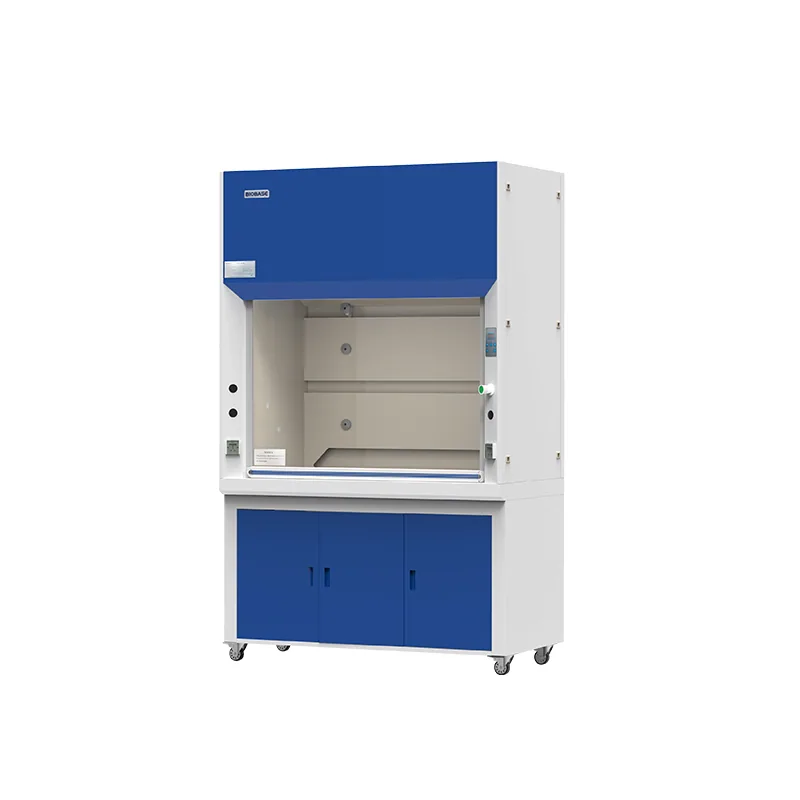

BIOBASE Fume Hood FH1000(E) FH1200(E) FH1500(E) FH1800(E)

Brand: BIOBASE | Category: Scientific & Laboratory Equipment

BIOBASE Fume Hood FH1000(E) FH1200(E) FH1500(E) FH1800(E) is listed in VVON's fume hoods & laboratory ventilation range for Bangladesh. Published models: FH1000(E), FH1200(E), FH1500(E), FH1800(E). Check chemical compatibility, extraction method, working space and ducting needs. For a quotation, send the chemicals, process, hood width, extraction route and room utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications

Model	FH1000(E)	FH1200(E)	FH1200(E)	FH1500(E)	FH1800(E)	FH1800(E)
External Size(W*D*H)	1000*800*2515mm	1200*800*2515mm	1200*800*2515mm	1500*800*2515mm	1800*800*2515mm	1800*800*2515mm
Internal Size(W*D*H)	790*600*870mm	990*600*870mm	990*600*870mm	1290*600*870mm	1590*600*870mm	1590*600*870mm
Work Surface Height	900mm	900mm	900mm	900mm	900mm	900mm
Max Opening	750mm	750mm	750mm	750mm	750mm	750mm
Air Velocity	0.3~0.8m/s	0.3~0.8m/s	0.3~0.8m/s	0.3~0.8m/s	0.3~0.8m/s	0.3~0.8m/s
System Exhaust Volume	570m³/h	570m³/h	710m³/h	930m³/h	930m³/h	1140m³/h
Noise	≤68dB	≤68dB	≤68dB	≤68dB	≤68dB	≤68dB
Exhaust Duct	PVC, standard length; 5 meters, Φ300mm	PVC, standard length; 5 meters, Φ300mm	PVC, standard length; 5 meters, Φ300mm	PVC, standard length; 5 meters, Φ300mm	PVC, standard length; 5 meters, Φ300mm	PVC, standard length; 5 meters, Φ300mm
Pipe Strap	2pcs	2pcs	2pcs	2pcs	2pcs	2pcs
LED Lamp	20W*1	20W*1	20W*1	40W*1	40W*1	40W*1
Blower	Built-in PP centrifugal blower	Built-in PP centrifugal blower	Built-in PP centrifugal blower	Built-in PP centrifugal blower	Built-in PP centrifugal blower	Built-in PP centrifugal blower
Front Window	Manual, 5mm toughened glass, height adjustable	Manual, 5mm toughened glass, height adjustable	Manual, 5mm toughened glass, height adjustable	Manual, 5mm toughened glass, height adjustable	Manual, 5mm toughened glass, height adjustable	Manual, 5mm toughened glass, height adjustable
Power Supply	220V±10%, 60/50Hz; 110V±10%, 60Hz	220V±10%, 60/50Hz; 110V±10%, 60Hz	220V±10%, 60/50Hz; 110V±10%, 60Hz	220V±10%, 60/50Hz; 110V±10%, 60Hz	220V±10%, 60/50Hz; 110V±10%, 60Hz	220V±10%, 60/50Hz; 110V±10%, 60Hz
Consumption	400W	400W	400W	500W	500W	500W
Material / Exterior	1.0mm cold-rolled steel with anti-bacteria powder coating	1.0mm cold-rolled steel with anti-bacteria powder coating	1.0mm cold-rolled steel with anti-bacteria powder coating	1.0mm cold-rolled steel with anti-bacteria powder coating	1.0mm cold-rolled steel with anti-bacteria powder coating	1.0mm cold-rolled steel with anti-bacteria powder coating
Material / Interior	Compact laminate board with good acid and alkali resistance function	Compact laminate board with good acid and alkali resistance function	Compact laminate board with good acid and alkali resistance function	Compact laminate board with good acid and alkali resistance function	Compact laminate board with good acid and alkali resistance function	Compact laminate board with good acid and alkali resistance function
Material / Work table	Chemical resistant phenolic resin	Chemical resistant phenolic resin	Chemical resistant phenolic resin	Chemical resistant phenolic resin	Chemical resistant phenolic resin	Chemical resistant phenolic resin
Standard Accessory	PP water sink Total load of 2 waterproof sockets: 500W Base cabinet Water tap 5 meters exhaust duct(φ300mm)	PP water sink Total load of 2 waterproof sockets: 500W Base cabinet Water tap 5 meters exhaust duct(φ300mm)	PP water sink Total load of 2 waterproof sockets: 500W Base cabinet Water tap 5 meters exhaust duct(φ300mm)	PP water sink Total load of 2 waterproof sockets: 500W Base cabinet Water tap 5 meters exhaust duct(φ300mm)	PP water sink Total load of 2 waterproof sockets: 500W Base cabinet Water tap 5 meters exhaust duct(φ300mm)	PP water sink Total load of 2 waterproof sockets: 500W Base cabinet Water tap 5 meters exhaust duct(φ300mm)
Optional Accessory	Gas valve, gas tap	Gas valve, gas tap	Gas valve, gas tap	Gas valve, gas tap	Gas valve, gas tap	Gas valve, gas tap
Gross Weight	186kg; 81kg	207kg; 89kg	207kg; 89kg	233kg; 101kg	279kg; 130kg	279kg; 130kg
Package / Main Body	1145*960*1865mm	1345*960*1865mm	1345*960*1865mm	1645*960*1875mm	1945*960*1875mm	1945*960*1875mm
Package / Base Cabinet	1145*960*1040mm	1345*960*1040mm	1345*960*1040mm	1645*960*1060mm	1945*960*1040mm	1945*960*1040mm

Manufacturer catalogue checked 2026-09-28.
