Brand: BIOBASE | Category: Scientific & Laboratory Equipment

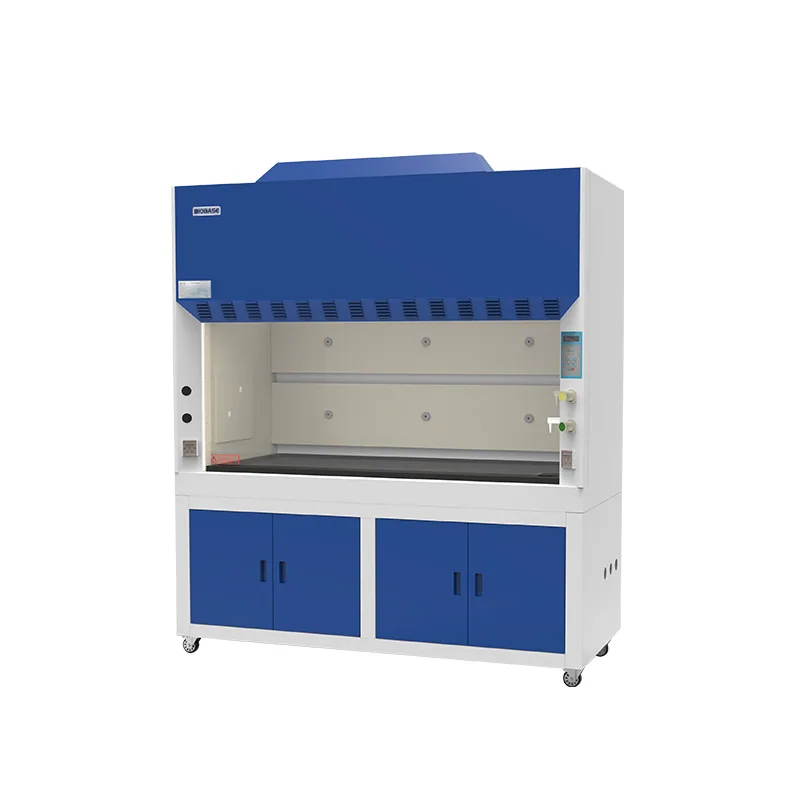

BIOBASE Ducted Fume Hood FH1000(A) is listed in VVON's fume hoods & laboratory ventilation range for Bangladesh. Published models: FH1000(A), FH1200(A), FH1500(A), FH1800(A). Check chemical compatibility, extraction method, working space and ducting needs. For a quotation, send the chemicals, process, hood width, extraction route and room utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FH1000(A) | FH1200(A) | FH1500(A) | FH1800(A) |
|---|---|---|---|---|
| External Size(W*D*H) | 1040*800*2200mm | 1240*800*2200mm | 1540*800*2200mm | 1840*800*2200mm |
| Internal Size(W*D*H) | 820*670*730mm | 1020*670*730mm | 1320*670*730mm | 1620*670*730mm |
| Work Surface Height | 850mm | 850mm | 850mm | 850mm |
| Max Opening | 520mm | 520mm | 520mm | 520mm |
| Air Velocity | 0.3~0.8m/s | 0.3~0.8m/s | 0.3~0.8m/s | 0.3~0.8m/s |
| Exhaust Air Volume | 590m³/h | 730m³/h | 950m³/h | 1170m³/h |
| Noise | ≤68dB | ≤68dB | ≤68dB | ≤68dB |
| Exhaust Duct | PVC, Standard length: 5 meters | PVC, Standard length: 5 meters | PVC, Standard length: 5 meters | PVC, Standard length: 5 meters |
| Exhaust Duct | Φ300mm | Φ300mm | Φ300mm | Φ300mm |
| LED Lamp | 8W*1 | 12W*1 | 16W*1 | 16W*1 |
| UV Lamp | Emission of 253.7 nanometers for most efficient decontamination | Emission of 253.7 nanometers for most efficient decontamination | Emission of 253.7 nanometers for most efficient decontamination | Emission of 253.7 nanometers for most efficient decontamination |
| Blower | Built-in centrifugal blower, Speed adjustable | Built-in centrifugal blower, Speed adjustable | Built-in centrifugal blower, Speed adjustable | Built-in centrifugal blower, Speed adjustable |
| Front Window | 5mm toughened glass, Motorized, Height adjustable | 5mm toughened glass, Motorized, Height adjustable | 5mm toughened glass, Motorized, Height adjustable | 5mm toughened glass, Motorized, Height adjustable |
| Power Supply | AC220±10%, 50/60Hz; 110V±10%, 60Hz | AC220±10%, 50/60Hz; 110V±10%, 60Hz | AC220±10%, 50/60Hz; 110V±10%, 60Hz | AC220±10%, 50/60Hz; 110V±10%, 60Hz |
| Consumption | 400W | 400W | 500W | 500W |
| Material / Exterior | Cold-rolled steel with anti-bacteria powder coating | Cold-rolled steel with anti-bacteria powder coating | Cold-rolled steel with anti-bacteria powder coating | Cold-rolled steel with anti-bacteria powder coating |
| Material / Interior | Compact laminate board with good acid and alkali resistance function | Compact laminate board with good acid and alkali resistance function | Compact laminate board with good acid and alkali resistance function | Compact laminate board with good acid and alkali resistance function |
| Material / Work Table | Chemical resistant phenolic resin | Chemical resistant phenolic resin | Chemical resistant phenolic resin | Chemical resistant phenolic resin |
| Standard Accessory | UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet | UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet | UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet | UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet |
| Standard Accessory | Total load of 2 waterproof sockets: 500W | Total load of 2 waterproof sockets: 500W | Total load of 2 waterproof sockets: 500W | Total load of 2 waterproof sockets: 500W |
| Standard Accessory | 5 meters PVC exhaust duct, pipe strap*2 | 5 meters PVC exhaust duct, pipe strap*2 | 5 meters PVC exhaust duct, pipe strap*2 | 5 meters PVC exhaust duct, pipe strap*2 |
| Optional Accessory | Active carbon filter, HEPA filter | Active carbon filter, HEPA filter | Active carbon filter, HEPA filter | Active carbon filter, HEPA filter |
| Gross Weight | 191kg; 79kg | 207kg; 84kg | 243kg; 100kg | 285kg;113kg |
| Package / Main Body | 1190*995*1660mm | 1390*995*1680mm | 1690*995*1660mm | 1990*995*1660mm |
| Package / Base Cabinet | 1190*995*930mm | 1390*995*945mm | 1690*995*930mm | 1990*995*930mm |
Manufacturer catalogue checked 2026-09-28.
