Brand: BIOBASE | Category: Scientific & Laboratory Equipment

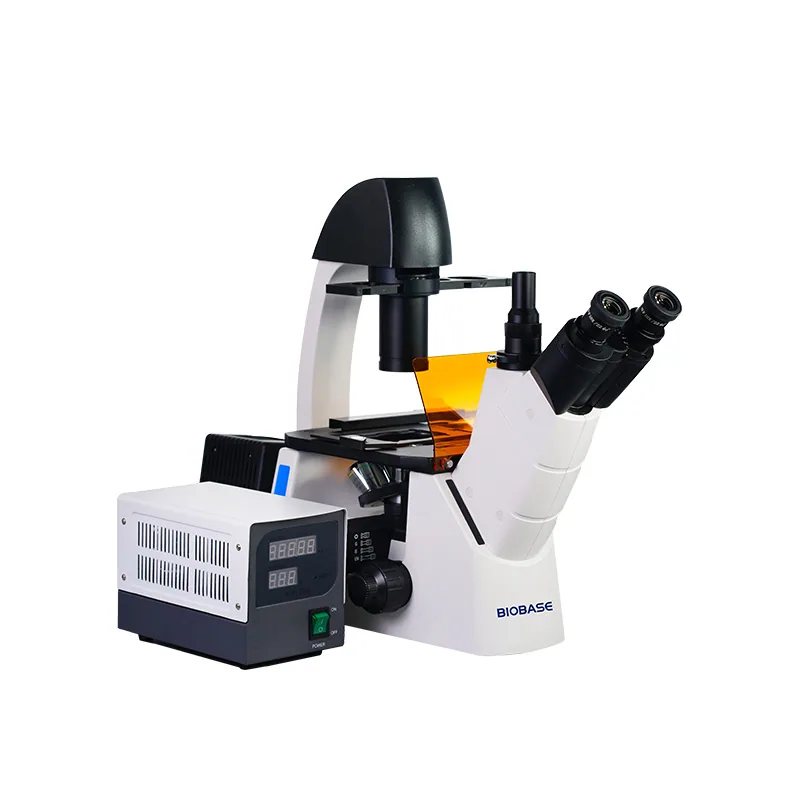

BIOBASE Fluorescence Biological Microscope BFM-37XYIII is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BFM-37XYIII. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BFM-37XYIII |
|---|---|
| Optical System | Modular infinity optical system |
| Eyepiece | 10X/22mm |
| View Head | Trinocular view head, interpupillary distance adjustment range: 50~75mm |
| Objective | Infinity plan achromatic objective 4X; Infinity working distance plan-contrast objective 10X PH; Infinity working distance plan-contrast objective 20X PH; Infinity working distance plan-contrast objective 40X PH; Infinity Working Distance Plan Objective 10X(Optional); Infinity Working Distance Plan Objective 40X(Optional) |
| Fluorescence Accessories | Standard: Ultraviolet (UV): EX: 330nm~380nm, DM: 400nm, BA=420nm; Blue (B): EX: 450nm~490nm, DM: 505nm, BA=520nm; Green (G): EX: 510nm~560nm, DM: 575nm, BA=590nm Others can be optional |
| Focusing System | Coaxial coarse and fine adjustment mechanism, equipped with limit and locking devices, low-position coaxial focusing handwheel, fine adjustment handwheel increments of 2μm, focusing travel of 11mm. |
| Nosepiece | 5-position nosepiece |
| Stage | Stage dimensions: Size: 242*172mm, Movement range: 75*50mm; Circular transparent stage plate: Outer ring φ110mm, inner ring φ32mm; Cultural dish tray I: 86*129.5mm, compatible with circular 87.5mm trays; Cultural dish tray II: 34*77.5mm, compatible with circular 68.5mm trays; Cultural dish tray III: 57*82mm |
| Condenser | Sliding-pull phase-contrast condenser lens, working distance: 75mm, numerical aperture: 0.3. |
| Illumination | White LED, adjustable brightness |
| Power Supply | AC100~240V, 50/60Hz |
| Packing Size(W*D*H) | 680*670*620mm |
| Gross Weight | 24kg |
Manufacturer catalogue checked 2026-09-28.
