Brand: BIOBASE | Category: Scientific & Laboratory Equipment

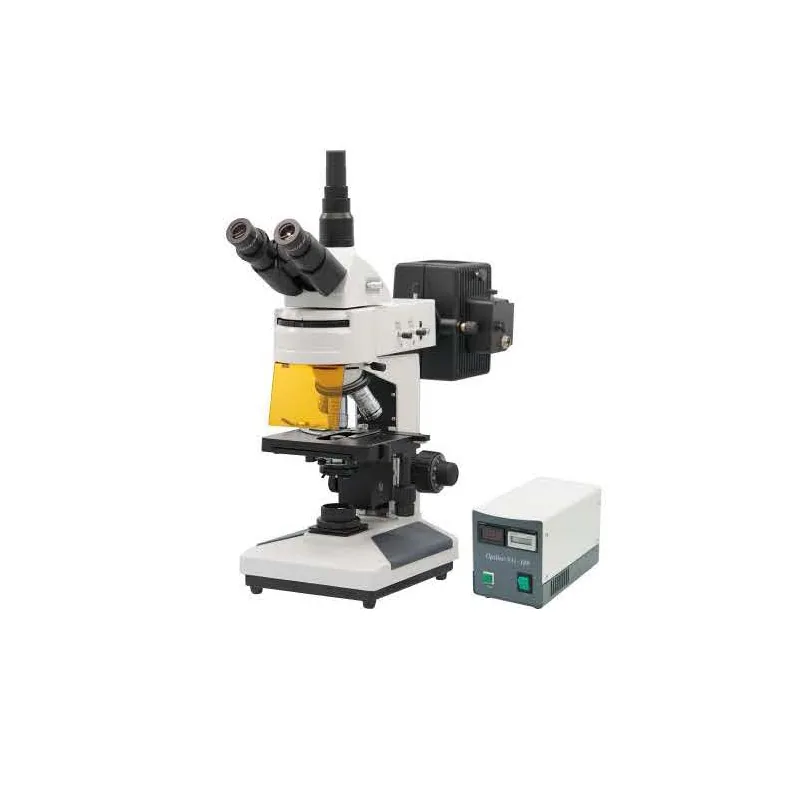

BIOBASE Fluorescence Biological Microscope BM-13CYII (Customized) is listed in VVON's microscopy & imaging systems range for Bangladesh. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Type | Magnification | Field diameter |
|---|---|---|
| Wide Plan Field Eyepiece | 10X | Φ22mm |
| Type | Magnification | NA | Working distance |
|---|---|---|---|
| Infinite Apochromatic Fluoresecent Objective | 4X | 0.1 | 37.5mm |
| Infinite Apochromatic Fluoresecent Objective | 10X | 0.25 | 7.31mm |
| Infinite Apochromatic Fluoresecent Objective | 40X | 0.65 | 0.63mm |
| Infinite Apochromatic Fluoresecent Objective | 100X | 1.25 | 0.18mm |
| Mechanical Tube Length | Infinite Distance system |
|---|---|
| Total Magnification | 40X~1000X |
| Nosepiece | Fourtuple Nosepiece |
| Stage: | Stage Size 160x140mm Moving Range 75x50mm |
| Focusing Range: | 30mmCoaxial coarse and fine focus adjustment,Fine Focusing Scale0.002mm |
| Condenser | Abbe N.A.1.25 Condenser With lris Diaphragm |
| Exciting | B、G |
| Filer | Blue、Yellow、Green; Epi-illumination: 220V(110V)/100W mercury lamp、power supply box |
| Light source | Transmission illuminate: Halogen Bulb 6V/20w |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
