Brand: BIOBASE | Category: Scientific & Laboratory Equipment

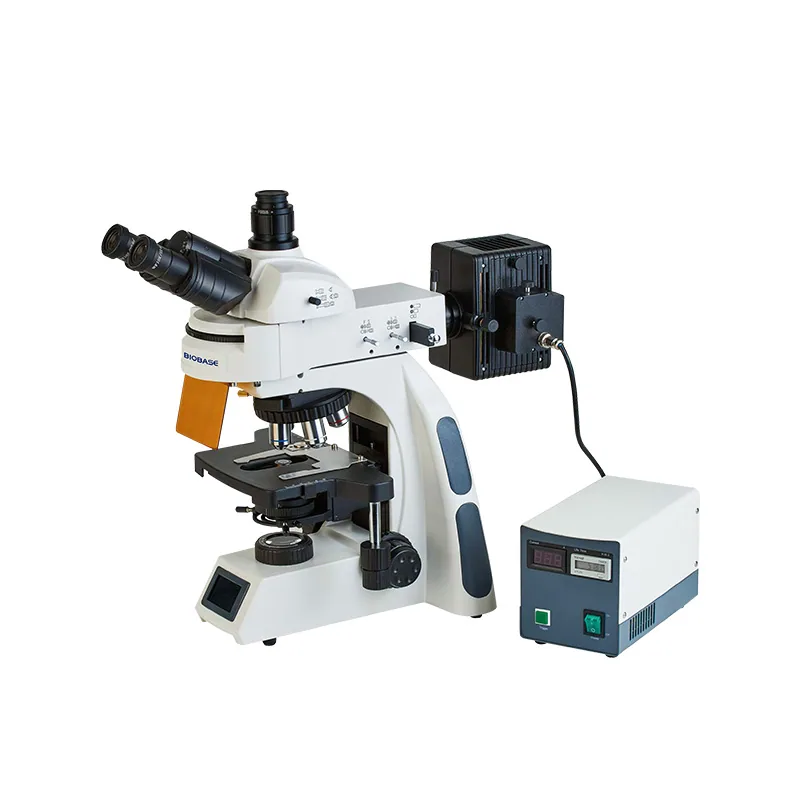

BIOBASE Fluorescence Biological Microscope BFM-21AYFIV is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BFM-21AYFIV. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BFM-21AYFIV |
|---|---|
| Optical System | Infinity optical system |
| Eyepiece | 10X/22mm |
| View Head | Trinocular view head, inclined at 30°, interpupillary distance adjustment 48~75mm |
| Objective | Infinity-plan semi-apochromatic objectives: 4X/0.13 WD=12mm;Infinity-plan semi-apochromatic objectives: 10X/0.3 WD=10.7mm; Infinity-plan semi-apochromatic objectives: 20X/0.5 WD=2.5mm; Infinity-plan semi-apochromatic objectives: 40X/0.75 WD=1.1mm; Infinity-plan semi-apochromatic objectives: 100X(Oil)/1.30 WD=0.25mm |
| Fluorescence Accessories | Standard: Ultraviolet (UV): EX: 330nm~380nm; DM: 400nm; BA=420nm Blue (B): EX: 450nm~490nm; DM: 505nm; BA=520nm Green (G): EX: 510nm~560nm; DM: 575nm; BA=590nm Violet (V): EX: 380nm~420nm; DM: 430nm; BA=450nm Others can be optional |
| Focusing System | Coaxial coarse and fine adjustment, equipped with limit and locking devices, low-position coaxial focusing handwheel, fine adjustment handwheel with 1μm increments. |
| Nosepiece | 5-position nosepiece |
| Stage | Right-hand low-position coaxial drive knob; high-wear-resistant ceramic-coated stage; stage dimensions: 180*160mm; movement range: 75*50mm. |
| Condenser | Abbe Condenser N.A.1.25 |
| Illumination | Warm white LED, adjustable brightness |
| Power Supply | AC100~240V, 50/60Hz |
| Packing Size(W*D*H) | 630*465*520mm |
| Gross Weight | 20kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
