Brand: BIOBASE | Category: Scientific & Laboratory Equipment

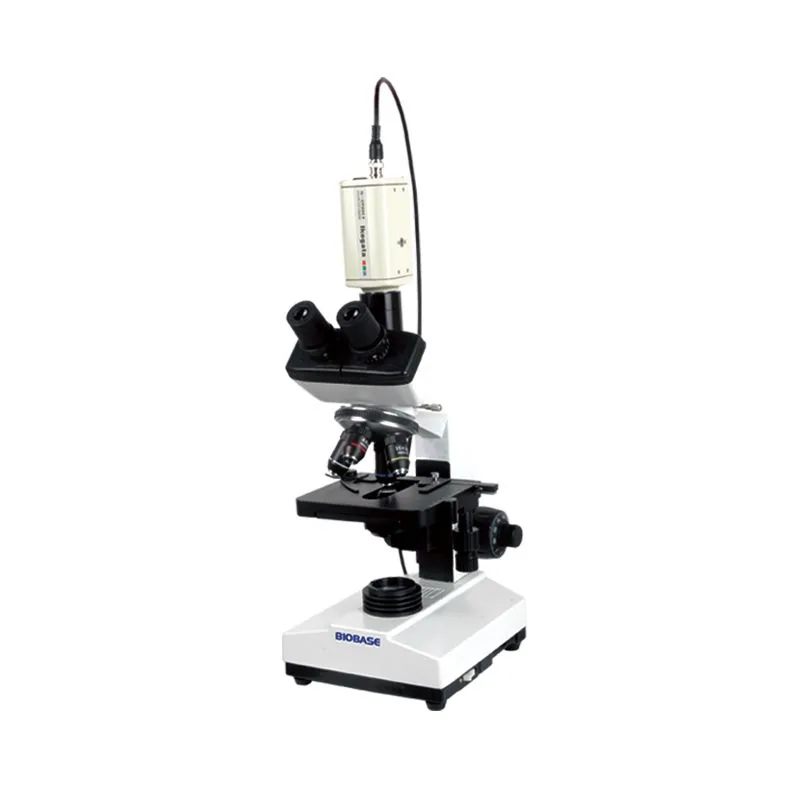

BIOBASE Digital Microscope BXTV Series BXM-1B is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BXTV-1, BXTV-1A, BXTV-1B, BXM-1B. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| ; | Specification | Model | Model | Model | Model |
|---|---|---|---|---|---|
| ; | Specification | BXTV-1 | BXTV-1A | BXTV-1B | BXM-1B |
| Observation Head | Translating trinocular head 45° tilt | √ | √ | ; | ; |
| Observation Head | Hinge trinocular head 30° tilt | ; | ; | √ | ; |
| Camera | Domestic CCD | √ | √ | ; | ; |
| Camera | Sony CCD | ; | ; | √ | ; |
| Camera | 10-inch LCD screen | ; | ; | ; | √ |
| Nosepiece | Multi-roller four-aperture objective lens converter | √ | √ | √ | √ |
| Eyepiece | WF10X/18mm | √ | √ | √ | ; |
| Objective Lens | Achromatic 4X, 10X, 40X(S), 100X(S, O) | √ | √ | √ | ; |
| Objective Lens | Plan achromatic 4X, 10X, 40X(S), 100X(S, O) | ; | ; | ; | √ |
| Stage | Double-layer mechanical stage, platform size: 135*140mm | √ | √ | √ | √ |
| Condenser | Abbe NA1.25 condenser with variable aperture and filter, rack and pinion adjustable mechanism | √ | √ | √ | √ |
| Illumination | Built-in lighting 3W LED lamp | √ | √ | √ | √ |
| Power Supply | AC100~240V, 50/60Hz | √ | √ | √ | √ |
| Package | Foam carton | √ | √ | √ | √ |
| Packing Size(W*D*H) | 250*360*460mm | √ | √ | √ | ; |
| Gross Weight | 8kg | √ | √ | √ | ; |
| Packing Size(W*D*H) | 330*280*440mm; 320*270*150mm | ; | ; | ; | √ |
| Gross Weight | 6kg; 3kg | ; | ; | ; | √ |
| Image Sensor | 1/3 inch Sony CCD | Video Output | BNC 1.0VP |
|---|---|---|---|
| Signal System | PAL | Backlight Compensation | Off/On |
| Signal-to-noise Ratio | 50dB AGC | Electronic Shutter | Automatic aperture |
| Horizontal Resolution | 480 TV/540 lines/700 lines | Camera Interface | CS |
| Minimum Illumination | 0.01 Lux, F1.2 | White Balance | Automatic |
| Gain Control | Automatic | Power Supply | DC 12V |
| Image Sensor | 1/3 inch Sony CCD | Video Output | BNC 1.0VP |
|---|---|---|---|
| Signal System | PAL | Backlight Compensation | Off/On |
| Signal-to-noise Ratio | 50dB AGC | Electronic Shutter | Automatic aperture |
| Horizontal Resolution | 700 lines | Camera Interface | CS |
| Minimum Illumination | 0.01 Lux, F1.2 | White Balance | Automatic |
| Gain Control | Automatic | Power Supply | DC 12V |
Manufacturer catalogue checked 2026-09-28.
