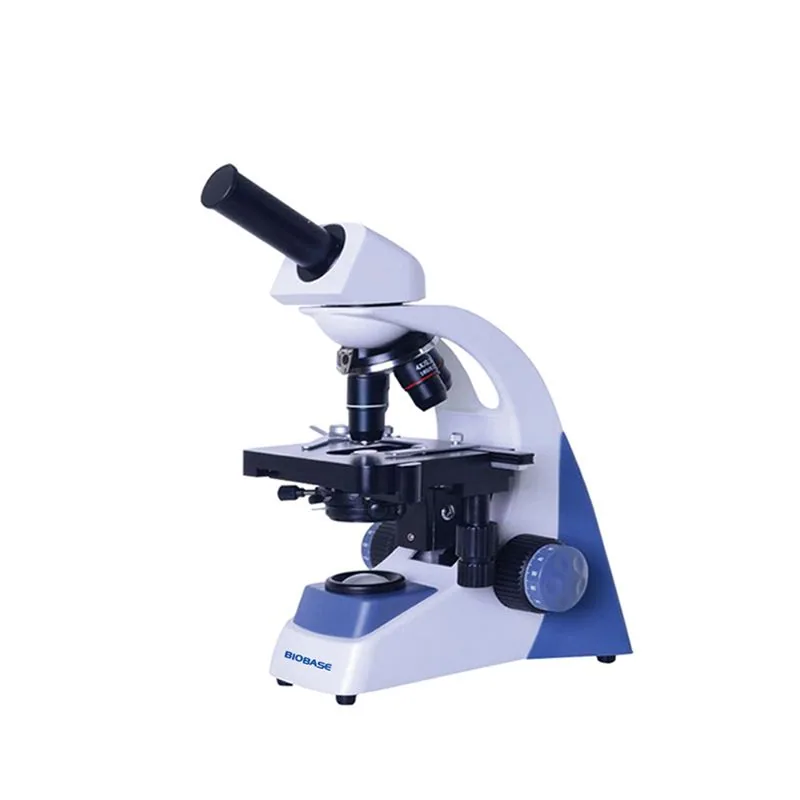

BIOBASE Economical Biological Microscope BME-500D BME-20E BME-30SM BME-500V
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Economical Biological Microscope BME-500D BME-20E BME-30SM BME-500V is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BME-500D, BME-20E, BME-30SM, BME-500V. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BME-500D | BME-20E | BME-20E | BME-30SM | BME-500V | BME-500V |
|---|---|---|---|---|---|---|
| Viewing Head | Monocular head inclined at 30°, 360° rotatable | Compensation free binocular head inclined at 30°, 360° rotatable | Compensation free binocular head inclined at 30°, 360° rotatable | Compensation free trinocular head inclined at 30°, 360° rotatable | Dual viewing head, one tube 30°, inclined and another tube vertical, 360° rotatable | Dual viewing head, one tube 30°, inclined and another tube vertical, 360° rotatable |
| Achromatic Objectives | 4X, 10X, 40X(Spring), 100X(Spring, Oil) | 4X, 10X, 40X(Spring), 100X(Spring, Oil) | 4X, 10X, 40X(Spring), 100X(Spring, Oil) | 4X, 10X, 40X(Spring), 100X(Spring, Oil) | 4X, 10X, 40X(Spring), 100X(Spring, Oil) | 4X, 10X, 40X(Spring), 100X(Spring, Oil) |
| Eyepiece | WF10X(WF16X optional) | WF10X(WF16X optional) | WF10X(WF25X optional) | WF10X(WF25X optional) | WF10X(WF25X optional) | WF10X(WF16X optional) |
| Stage | Double layer mechanical stage size 115*125mm; 138*156mm can be optional for BME-20E/ BME-30SM | Double layer mechanical stage size 115*125mm; 138*156mm can be optional for BME-20E/ BME-30SM | Double layer mechanical stage size 115*125mm; 138*156mm can be optional for BME-20E/ BME-30SM | Double layer mechanical stage size 115*125mm; 138*156mm can be optional for BME-20E/ BME-30SM | Double layer mechanical stage size 115*125mm; 138*156mm can be optional for BME-20E/ BME-30SM | Double layer mechanical stage size 115*125mm; 138*156mm can be optional for BME-20E/ BME-30SM |
| Focusing | Coaxial coarse and fine adjustment, focusing range 30mm, focusing interval 0.002mm | Coaxial coarse and fine adjustment, focusing range 30mm, focusing interval 0.002mm | Coaxial coarse and fine adjustment, focusing range 20mm, focusing interval 0.002mm | Coaxial coarse and fine adjustment, focusing range 20mm, focusing interval 0.002mm | Coaxial coarse and fine adjustment, focusing range 20mm, focusing interval 0.002mm | Coaxial coarse and fine adjustment, focusing range 30mm, focusing interval 0.002mm |
| Condenser | Abbe NA=1.25 with Iris diaphragm &filter | Abbe NA=1.25 with Iris diaphragm &filter | Abbe NA=1.25 with Iris diaphragm &filter | Abbe NA=1.25 with Iris diaphragm &filter | Abbe NA=1.25 with Iris diaphragm &filter | Abbe NA=1.25 with Iris diaphragm &filter |
| Illumination | LED | LED | LED | LED | LED | LED |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Packing Size(W*D*H) | 450*360*240mm | 450*360*240mm | 300*230*460mm | 300*230*460mm | 300*230*460mm | 450*360*240mm |
| Gross Weight | 5kg | 5kg | 4.65kg | 4.65kg | 4.65kg | 5kg |
Manufacturer catalogue checked 2026-09-28.
