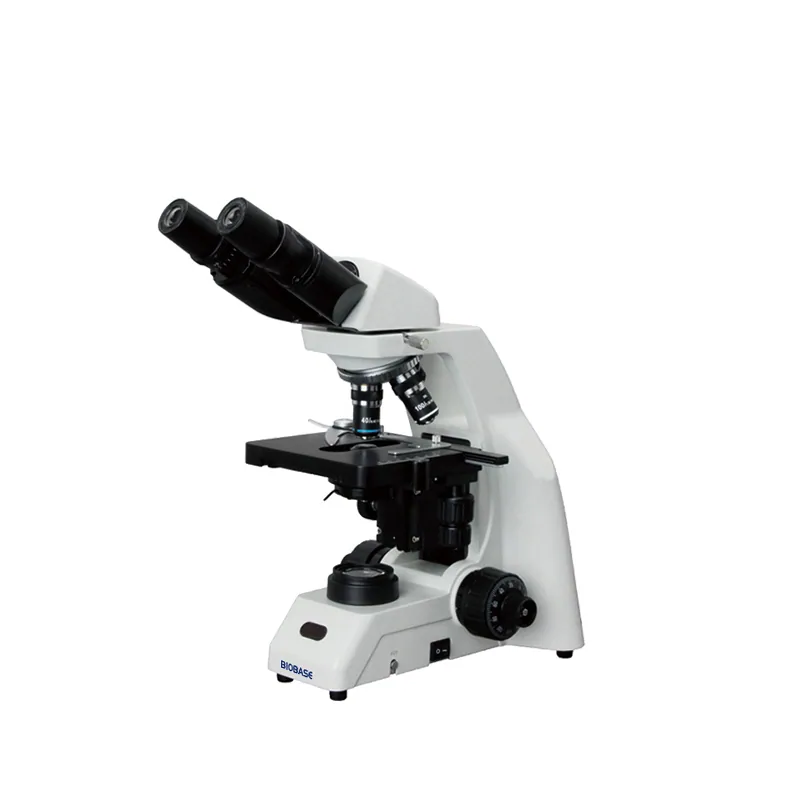

BIOBASE Digital Biological Microscope DM-125 DM-300M
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Digital Biological Microscope DM-125 DM-300M is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: DM-125, DM-300M. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DM-125 | DM-300M |
|---|---|---|
| Optical System / Infinite Optical System | / | √ |
| Optical System / Finite Optical System | √ | / |
| Viewing Head / Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | √ | / |
| Viewing Head / Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | / |
| Viewing Head / Seidentopf Binocular Viewing Head, 30° Inclined, Interpupillary 48-75mm | / | √ |
| Viewing Head / Seidentopf Trinocular Viewing Head, 30° Inclined, Interpupillary 48-75mm | / | ● |
| Viewing Head / MD101Microscope Camera with HD Monitor, 5M pixels, Colour CMOS | ● | ● |
| Eyepiece / Wide Field Eyepiece WF 10×/18 | √ | √ |
| Eyepiece / Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment | / | ● |
| Objective / Achromatic Objective 4×,10×,40×,100× | √ | / |
| Objective / Infinite Semi-plan Achromatic Objectives 4×,10×,40×,100× | / | √ |
| Objective / Infinite Plan Achromatic Objectives 4×,10×,40×,100× | / | ● |
| Nosepiece / Backward Quadruple Nosepiece | √ | / |
| Nosepiece / Quadruple Nosepiece | / | √ |
| Stage / Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm | √ | / |
| Stage / Double Layers Mechanical Stage 140mm×130mm/ 75mm×50mm | / | √ |
| Condenser / NA1.25 Abbe Condenser | √ | / |
| Condenser / Sliding-in Centerable condenser NA1.25 | / | √ |
| Condenser / Dark Field Condenser (Dry, Oil) | ● | / |
| Focusing System / Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 15mm | / | √ |
| Focusing System / Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm | √ | / |
| Illumination / 6V/ 20W Halogen Lamp, Brightness Adjustable | ● | ● |
| Illumination / S-LED Illumination, Brightness Adjustable | √ | √ |
| Accessories / Phase Contrast Kit, Fluorescent Attachment, Polarization Set | ● | ● |
| Power Supply / AC 110–220V, 50/60HZ | √ | √ |
| Packing Size(mm) / 380*270*470(DM-125 Main body) 350*350*640(DM-300M) | √ | √ |
| Gross Weight(kg) / 8.5(DM-125 Main body); 12(DM-300M) | √ | √ |
Manufacturer catalogue checked 2026-09-28.
