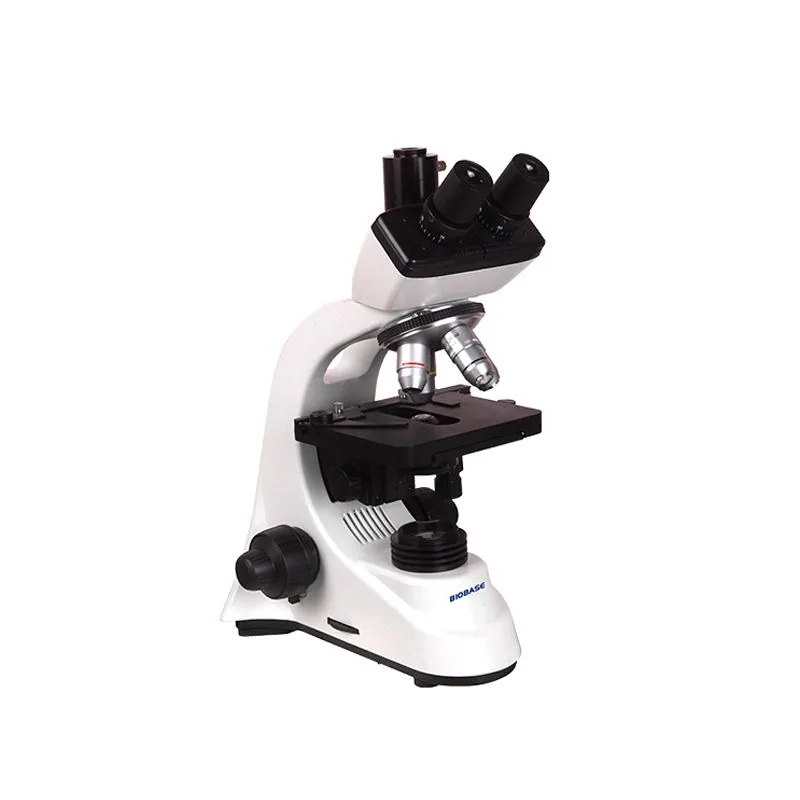

BIOBASE Digital Laboratory Biological Microscope XS-208B-FL(Customized)
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Digital Laboratory Biological Microscope XS-208B-FL(Customized) is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: XS-208B-FL(Customized). Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specification | Specification | Model |
|---|---|---|
| Specification | Specification | XS-208B-FL(Customized) |
| Observation Head | 45° tilt sliding binocular observation head | ; |
| Observation Head | 45° tilt sliding trinocular observation head | √ |
| Observation Head | Hinged 30° binocular observation head | ; |
| Observation Head | Hinged 30° trinocular observation head | ; |
| Nosepiece | Multi-roller four-aperture objective lens converter | √ |
| Eyepiece | Wide-angle plane eyepiece: WF10X/18mm | √ |
| Objective Lens | Achromatic 4X, 10X, 40X(spring), 100X(spring, oil) | √ |
| Objective Lens | Plan achromat 4X, 10X, 40X(spring), 100X(spring, oil) | ; |
| Objective Lens | Infinity plan achromat 4X, 10X, 40X(spring), 100X(spring, oil) | ; |
| Stage | Double-layer mechanical platform 135*140mm | √ |
| Condenser | ABBE NA1.25 condenser with variable aperture and filters, rack and pinion adjustment | √ |
| Illumination | Built-in lighting | √ |
| Power Supply | AC100~240V, 50/60Hz | √ |
| Optional Accessories | Darkfield condenser, phase contrast accessories | √ |
| Package | Foam carton | √ |
| Packing Size | 250*360*460mm | √ |
| Gross Weight | 8kg | √ |
Manufacturer catalogue checked 2026-09-28.
