Brand: BIOBASE | Category: Scientific & Laboratory Equipment

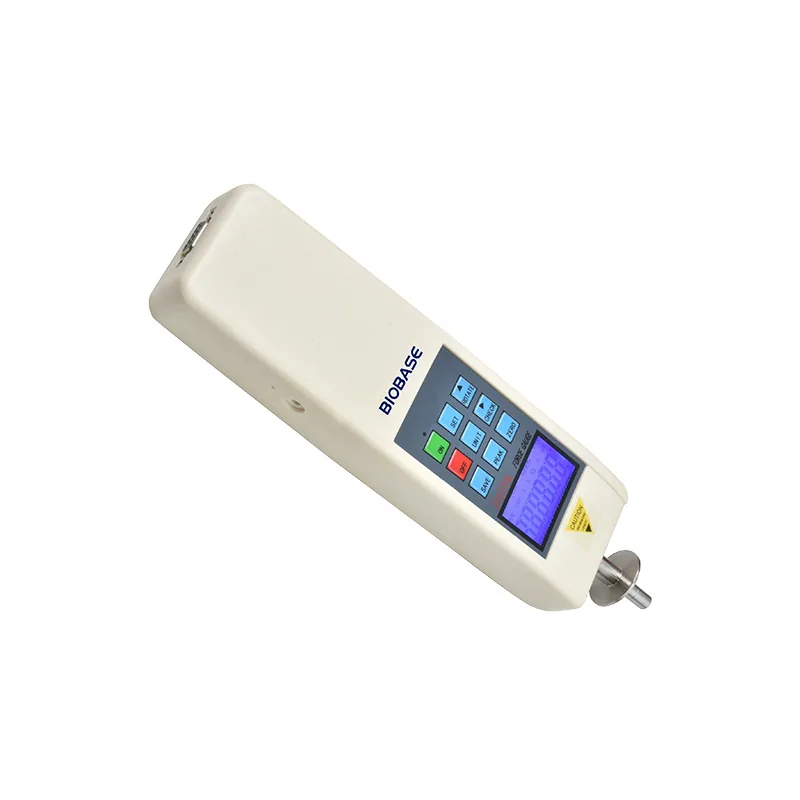

BIOBASE Digital Force Gauge is listed in VVON's mechanical testing instruments range for Bangladesh. Published models: BK-DFS4A. Match specimen geometry, force range, method, grips and measurement requirements. For a quotation, send the material, specimen dimensions, test method, force range and fixtures. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-DFS4A | BK-DFS4A | BK-DFS4A |
|---|---|---|---|
| Range | 52kg/cm² | 102kg/cm² | 520kg/cm² |
| Division Value | 0.01kg/cm² | 0.01kg/cm² | 0.01kg/cm² |
| Pressure Head Diameter | 1# Φ11.1mm | 2# Φ7.9mm | 3# Φ3.5mm |
| Precision | ±1% | ±1% | ±1% |
| Indication Error | ±0.5% | ±0.5% | ±0.5% |
| Unit | kg/cm²、N/mm²、lb/in² (Push-button switching) | kg/cm²、N/mm²、lb/in² (Push-button switching) | kg/cm²、N/mm²、lb/in² (Push-button switching) |
| Display Mode | Digital | Digital | Digital |
| Insertion Depth of Pressure Head | 10mm | 10mm | 10mm |
| Optional Accessories | Stand | Stand | Stand |
| Output Interface | RS 232 nine-pin socket | RS 232 nine-pin socket | RS 232 nine-pin socket |
| Power Supply | Rechargeable battery Charger (Charging voltage: 100V~240V) | Rechargeable battery Charger (Charging voltage: 100V~240V) | Rechargeable battery Charger (Charging voltage: 100V~240V) |
| Packing Size(W*D*H) | 390*210*130mm | 390*210*130mm | 390*210*130mm |
| Gross Weight | 1.9kg | 1.9kg | 1.9kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
