Brand: BIOBASE | Category: Scientific & Laboratory Equipment

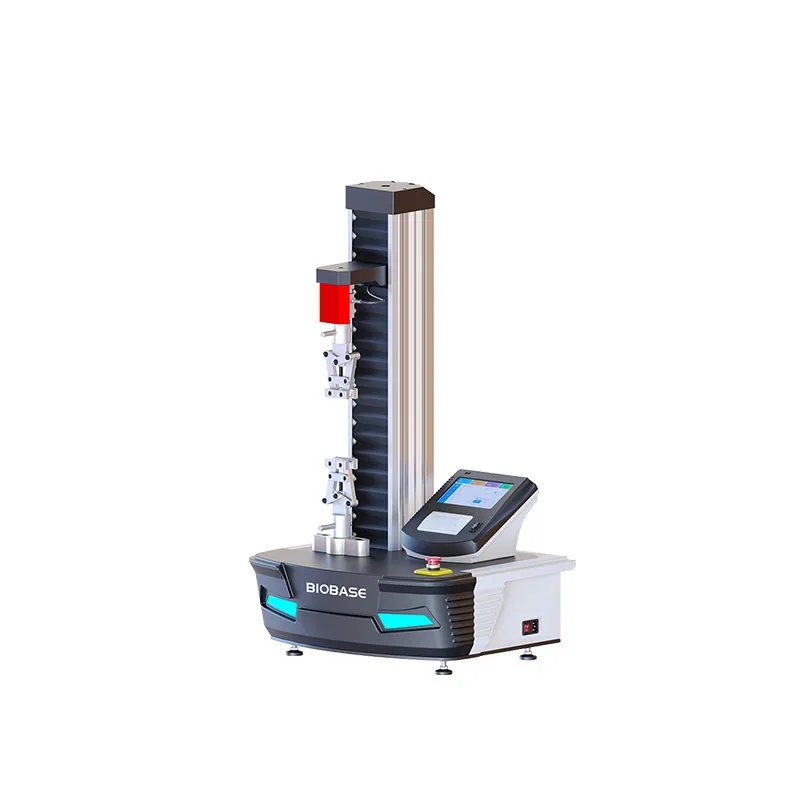

BIOBASE Electronic Universal Testing Machine BK-UTM5 is listed in VVON's mechanical testing instruments range for Bangladesh. Published models: BK-UTM5. Match specimen geometry, force range, method, grips and measurement requirements. For a quotation, send the material, specimen dimensions, test method, force range and fixtures. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-UTM5 | BK-UTM5 | BK-UTM5 | BK-UTM5 | BK-UTM5 | BK-UTM5 | BK-UTM5 |
|---|---|---|---|---|---|---|---|
| Max Testing Force | 50N | 100N | 200N | 500N | 1000N | 2000N | 5000N |
| Accuracy Level | Level 1 | Level 1 | Level 1 | Level 1 | Level 1 | Level 1 | Level 1 |
| Type | Single-arm structure | Single-arm structure | Single-arm structure | Single-arm structure | Single-arm structure | Single-arm structure | Single-arm structure |
| Limit of Allowable Error for Testing Force Indication | ≤±1% of Indication | ≤±1% of Indication | ≤±1% of Indication | ≤±1% of Indication | ≤±1% of Indication | ≤±1% of Indication | ≤±1% of Indication |
| Force Measurement Range | 2%~100%FS | 2%~100%FS | 2%~100%FS | 2%~100%FS | 2%~100%FS | 2%~100%FS | 2%~100%FS |
| Force Resolution | 1/250000 of the maximum test force | 1/250000 of the maximum test force | 1/250000 of the maximum test force | 1/250000 of the maximum test force | 1/250000 of the maximum test force | 1/250000 of the maximum test force | 1/250000 of the maximum test force |
| Limit of Indication Error for Displacement | ≤±1% of Indication | ≤±1% of Indication | ≤±1% of Indication | ≤±1% of Indication | ≤±1% of Indication | ≤±1% of Indication | ≤±1% of Indication |
| Minimum Displacement Resolution | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| Beam Speed Range | 0.01~500mm/min | 0.01~500mm/min | 0.01~500mm/min | 0.01~500mm/min | 0.01~500mm/min | 0.01~500mm/min | 0.01~500mm/min |
| Relative Error of Beam Speed | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% |
| Stretching Distance | 700mm | 700mm | 700mm | 700mm | 700mm | 700mm | 700mm |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) |
| External Size(L*W*H) | 420*280*1150mm | 420*280*1150mm | 420*280*1150mm | 420*280*1150mm | 420*280*1150mm | 420*280*1150mm | 420*280*1150mm |
| Net Weight | 120kg | 120kg | 120kg | 120kg | 120kg | 120kg | 120kg |
| Packing Size(L*W*H) | 550*600*1600mm | 550*600*1600mm | 550*600*1600mm | 550*600*1600mm | 550*600*1600mm | 550*600*1600mm | 550*600*1600mm |
| Gross Weight | 135kg | 135kg | 135kg | 135kg | 135kg | 135kg | 135kg |
Manufacturer catalogue checked 2026-09-28.
