Brand: BIOBASE | Category: Scientific & Laboratory Equipment

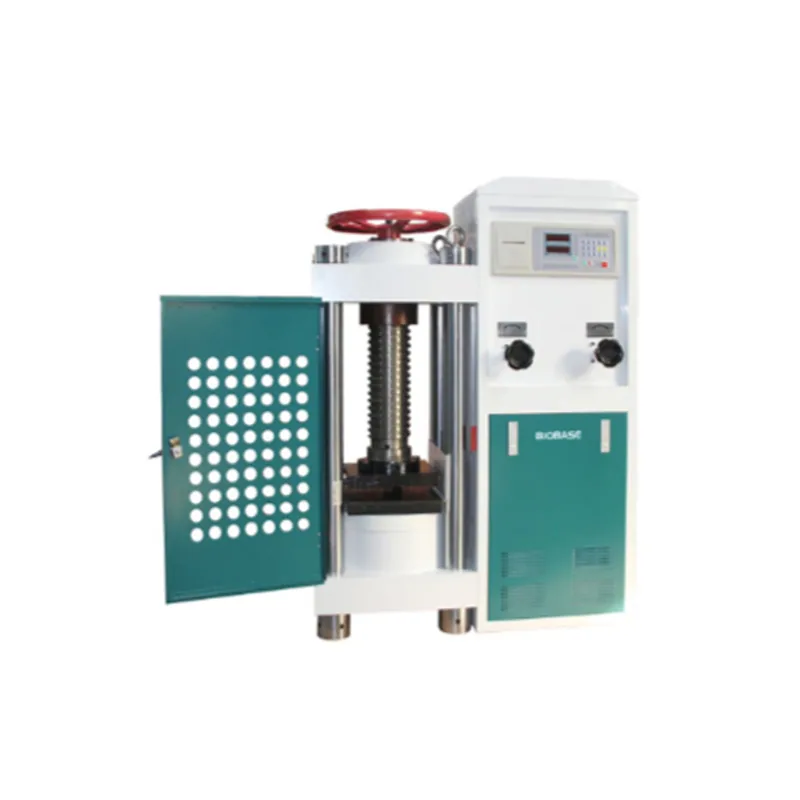

BIOBASE Digital Display Compression Testing Machine (Customized) is listed in VVON's mechanical testing instruments range for Bangladesh. Published models: BK-YES2000. Match specimen geometry, force range, method, grips and measurement requirements. For a quotation, send the material, specimen dimensions, test method, force range and fixtures. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-YES2000 |
|---|---|
| Max. Load | 2000KN |
| Class | 1 Class |
| Testing Space Regulating Way | Manual Ball Screw Adjust |
| Control Way | Manual Control Load Way |
| Oil Source Control Cabinet Structure Form | One-piece Bench Oil Source Control Cabinet |
| Range Of Test Force | 4% 100%FS(80KN 2000KN) |
| Indicating Value Accuracy | ±1% |
| Piston Stroke | 50mm |
| The Largest Spacing Of Upper And Lower Pressure Plate | 320mm |
| The Largest Spacing Of Two Columns | 270mm |
| Pressure Plates Size | 250*250mm(L*W) |
| Display | LCD Digital Display |
| The Host Di nension | 900 400*1150mm |
| Power Supply | 1KW I AC 380V, 50Hz(Can Be Custom) |
| Weight | 750kg |
Manufacturer catalogue checked 2026-09-28.
